ABS & VSC

0001 1 0002 1 0003 1 0004 1 0005 1

86652ABUZZER ASSY, SKID CONTROL

main86652-50010iAVE30,GSE3#201304-201508

89183ASENSOR, YAWRATE

main89183-48020iASE30,AVE3#,GSE31201610-202009

89189BBRACKET, YAWRATE SENSOR

main89189-53010iAVE30,GSE3#201304-201508

89542SENSOR, SPEED, FRONT RH

main89542-30290iGSE35201304-201508

main89542-30291iAVE35,GSE35201605-201610

89543SENSOR, SPEED, FRONT LH

main89543-30290iGSE35201304-201508

main89543-30291iAVE35,GSE35201605-201610

89545SENSOR, SPEED, REAR RH

main89545-30080iAVE30,GSE3#201304-201508

main89545-53010iASE30,AVE3#,GSE31202009-202110

89546SENSOR, SPEED, REAR LH

main89546-30080iAVE30,GSE3#201304-201508

main89546-53010iASE30,AVE3#,GSE31202009-202110

89630ACOMPUTER ASSY, 4WD

main89630-30200iGSE35201304-201508

9017906110

main90179-06110

9017906274

main90179-06274

9155180610

main91551-80610

91551A0616

main91551-A0616

91671A0616

main91671-A0616

9167380616

main91673-80616

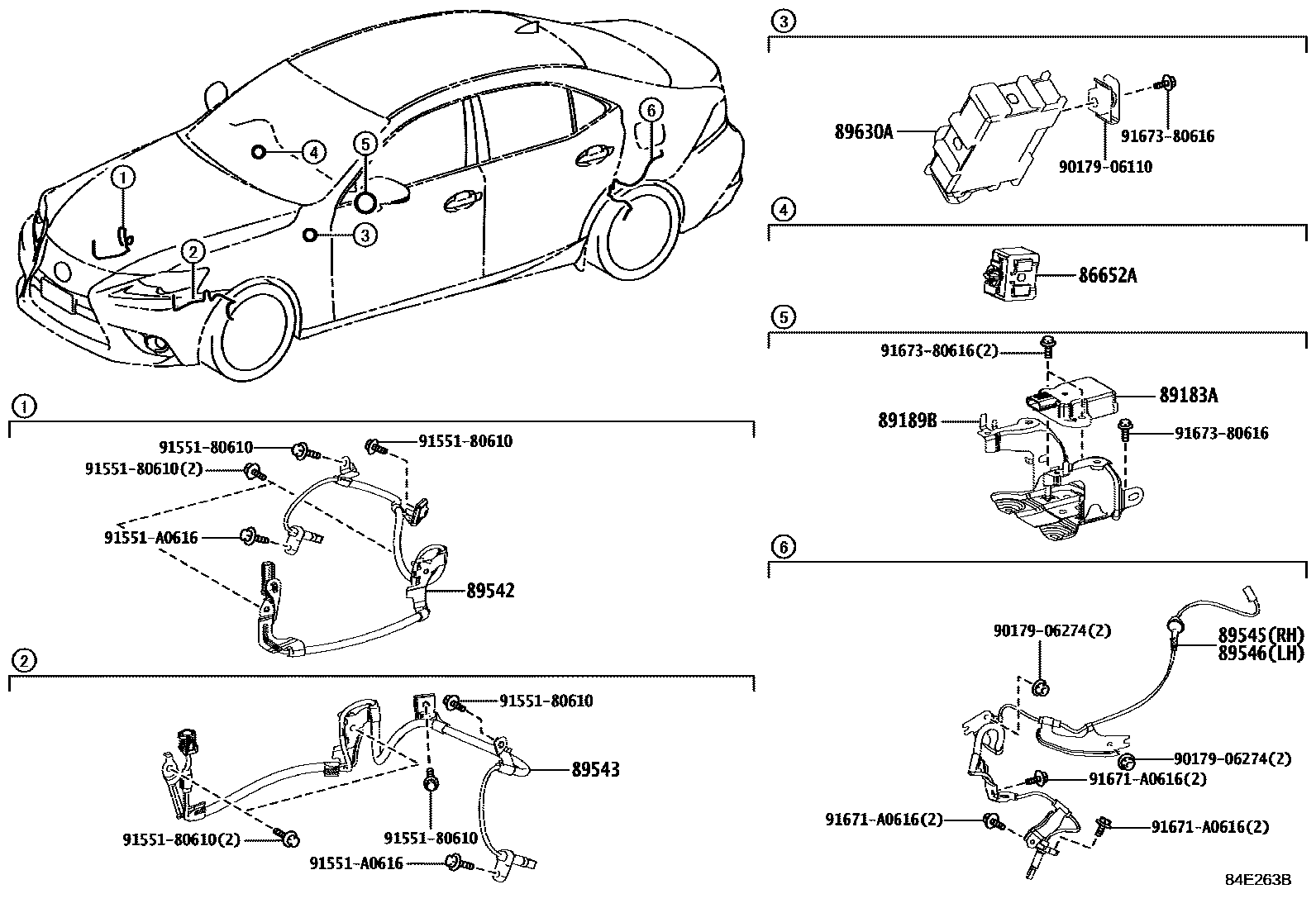

14 parts on this diagram · 5 diagrams in section
