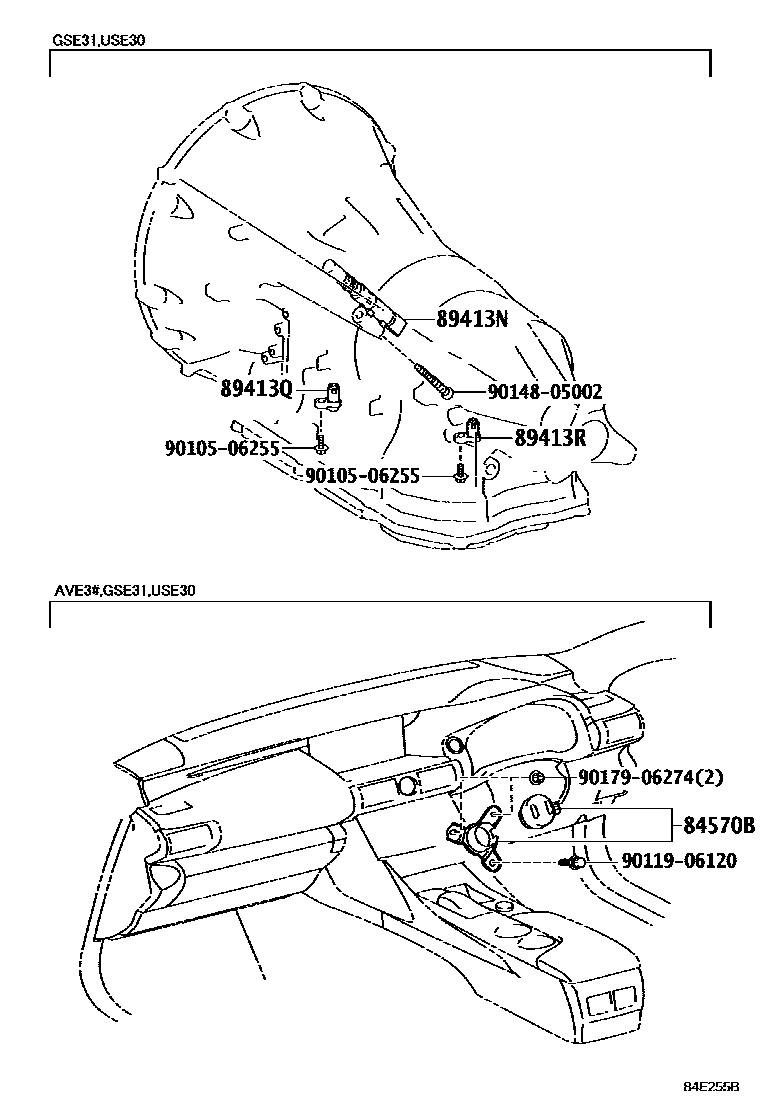

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1AA80E,AA81E 0002 1A960E 0003 1AA81H 0004 1A760H

84570BSWITCH ASSY, KICK DOWN

main84570-30090iASE30,AVE3#,GSE31201508-201610

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-0C010iGSE35201508-201610

main89413-32010iGSE35201508-201610

main89413-50010iASE30,GSE31,USE30202111

89413QSENSOR, TRANSMISSION REVOLUTION (NC3)

main89413-30010iASE30201508-201610

main89413-30011iASE30201805-202009

main89413-50020iGSE31201508-201610

89413RSENSOR, TRANSMISSION REVOLUTION (SP2)

main89413-0C010iGSE30,35201307-201508

main89413-32010iGSE30,35201304-201307

main89413-50020iASE30,GSE31202009-202110

9010506255

main90105-06255

9011906120

main90119-06120

9014805002

main90148-05002

9017906274

main90179-06274

8 parts on this diagram · 4 diagrams in section
