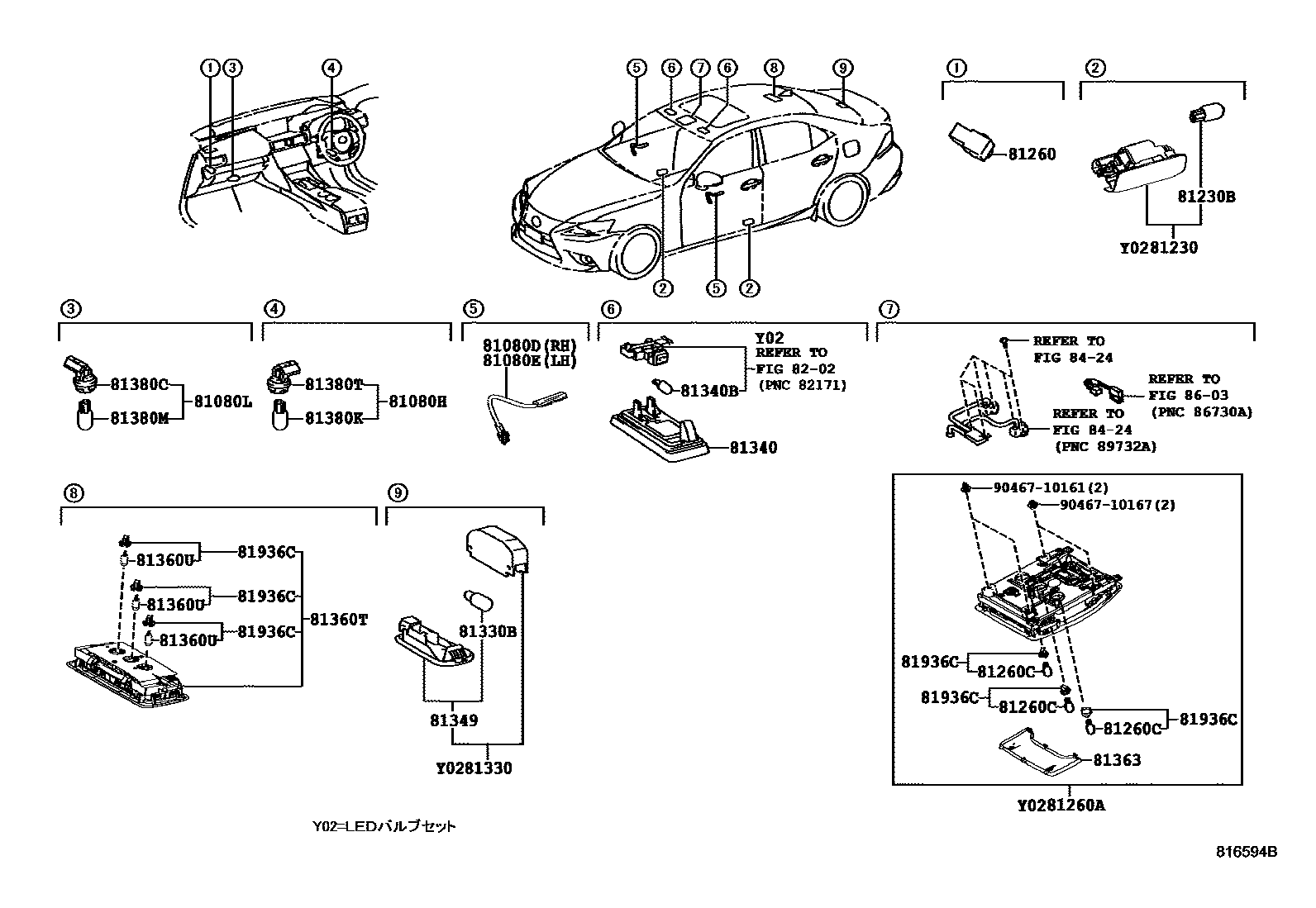

INTERIOR LAMP
81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH
81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH
81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
81260LAMP ASSY, GLOVE BOX
81260ALAMP ASSY, MAP
BLACK,TRIM0#,2#,3#,4#,6#,7#,9#; BLACK,TRIM0#,6#,7#,9#
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,6#,7#
81260CBULB(FOR MAP LAMP)
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
81349BODY, LUGGAGE COMPARTMENT LAMP
81360TLAMP ASSY, SPOT
BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,2#,3#,6#,7#
IVORY,TRIM0#,50,51,52,53
ECRU,TRIM0#,1#,42,43,52,53
LT.GRAY,TRIM10,11,12,13,20,21,22,23
BLACK,TRIM20,21,22,23,26,3#,50,51,52,53; BLACK,TRIM20,21,22,23,3#,50,51,52,53
81360UBULB, SPOT LAMP
81363LENS, ROOM LAMP, OUTER
81380CSOCKET, PLUG, NO.1
81380KBULB, INSTRUMET PANEL UNDER LAMP, NO.2
81380MBULB, INSTRUMET PANEL UNDER LAMP, NO.1
81380TSOCKET, PLUG, NO.2
81936CBULB ASSY
8202WIRING & CLAMP
8424ANTI-THEFT DEVICE
8603NAVIGATION & FRONT MONITOR DISPLAY
9046710161
main90467-10161
9046710167
main90467-10167
27 parts on this diagram · 3 diagrams in section
