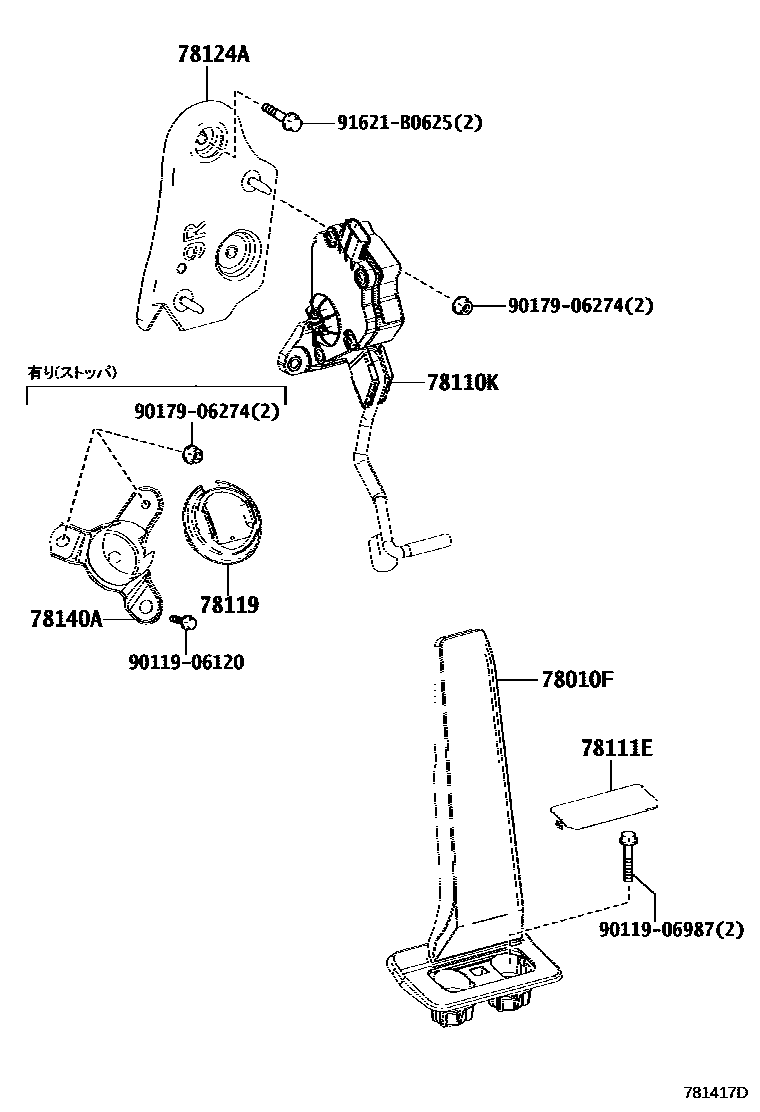

ACCELERATOR LINK

78010FPEDAL ASSY, ACCELERATOR

main78101-30061supersedes 78101-53051iASE30,AVE3#; GSE31,USE30202111

main78101-53040supersedes 78101-53051iAVE30,GSE3#201412-201506

main78101-53041supersedes 78101-53051iAVE30,GSE3#201507-201508

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30140iAVE30,GSE3#201304-201306

main78110-30141iAVE30,GSE3#201307-201508

main78110-30210iASE30,AVE3#,GSE3#201602-201610

78111EPAD, ACCELERATOR PEDAL

main78117-30030iAVE30,GSE3#201304-201508

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010iGSE30,35201304-201508

78124ABRACKET, ACCELERATOR PEDAL ROD

main78124-30131iAVE30,GSE3#201304-201508

78140ABRACKET, ACCELERATOR CONTROL ROD

main84579-30050iGSE30,35201304-201508

9011906120

main90119-06120

9011906987

main90119-06987

9017906274

main90179-06274

91621B0625

main91621-B0625

10 parts on this diagram · 1 diagram in section
