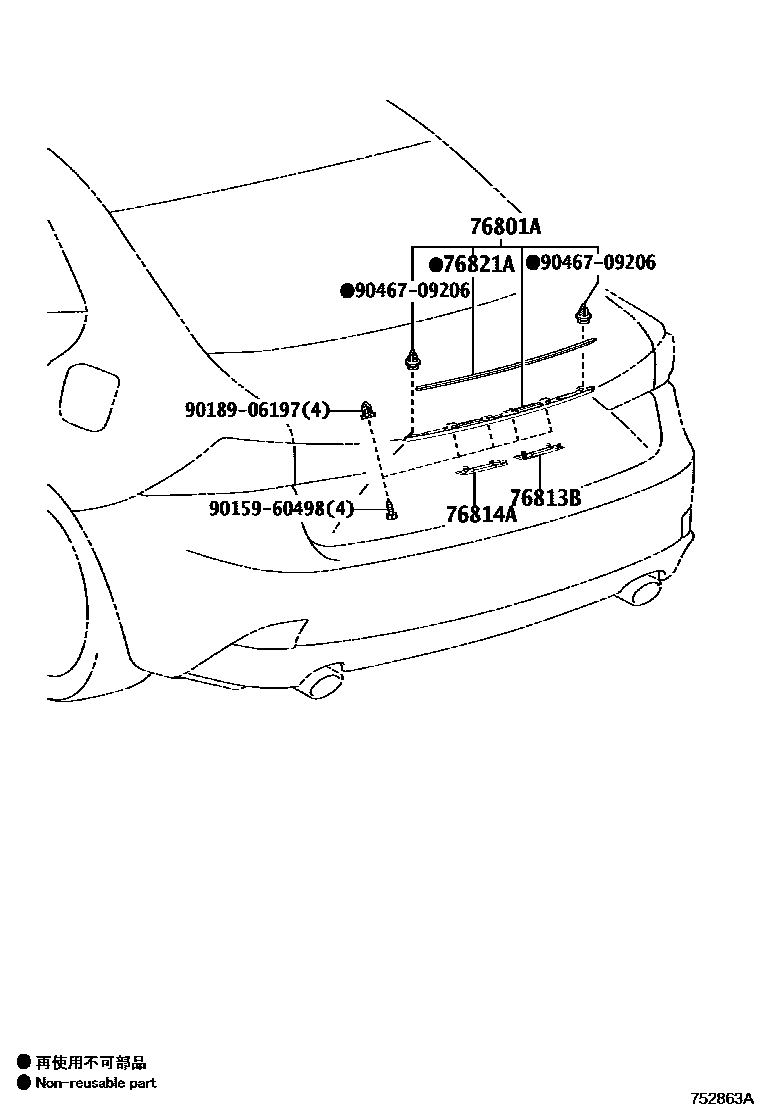

REAR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
WHITE PEARL CS.,077
WHITE NOVA GF.,083
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
BLACK,212
STARLIGHT BLACK GF.,217
RED MC.CS.,3R1
BLUE ME.,8U1
LAPIS LAZULI MC.,8V3
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC SILVER,1J2
MANGANESE LUSTER,1K2
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
MADDER RED,3T2
RADIANT RED CONTRAST LAYE,3T5
BLUE ME.,8U1
LAPIS LAZULI MC.,8V3
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
76813BGARNISH, LUGGAGE COMPARTMENT DOOR OUTSIDE, UPPER RH
76814AGARNISH, LUGGAGE COMPARTMENT DOOR OUTSIDE, UPPER LH
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
9015960498
main90159-60498
9018906197
main90189-06197
9046709206
main90467-09206
7 parts on this diagram · 2 diagrams in section
