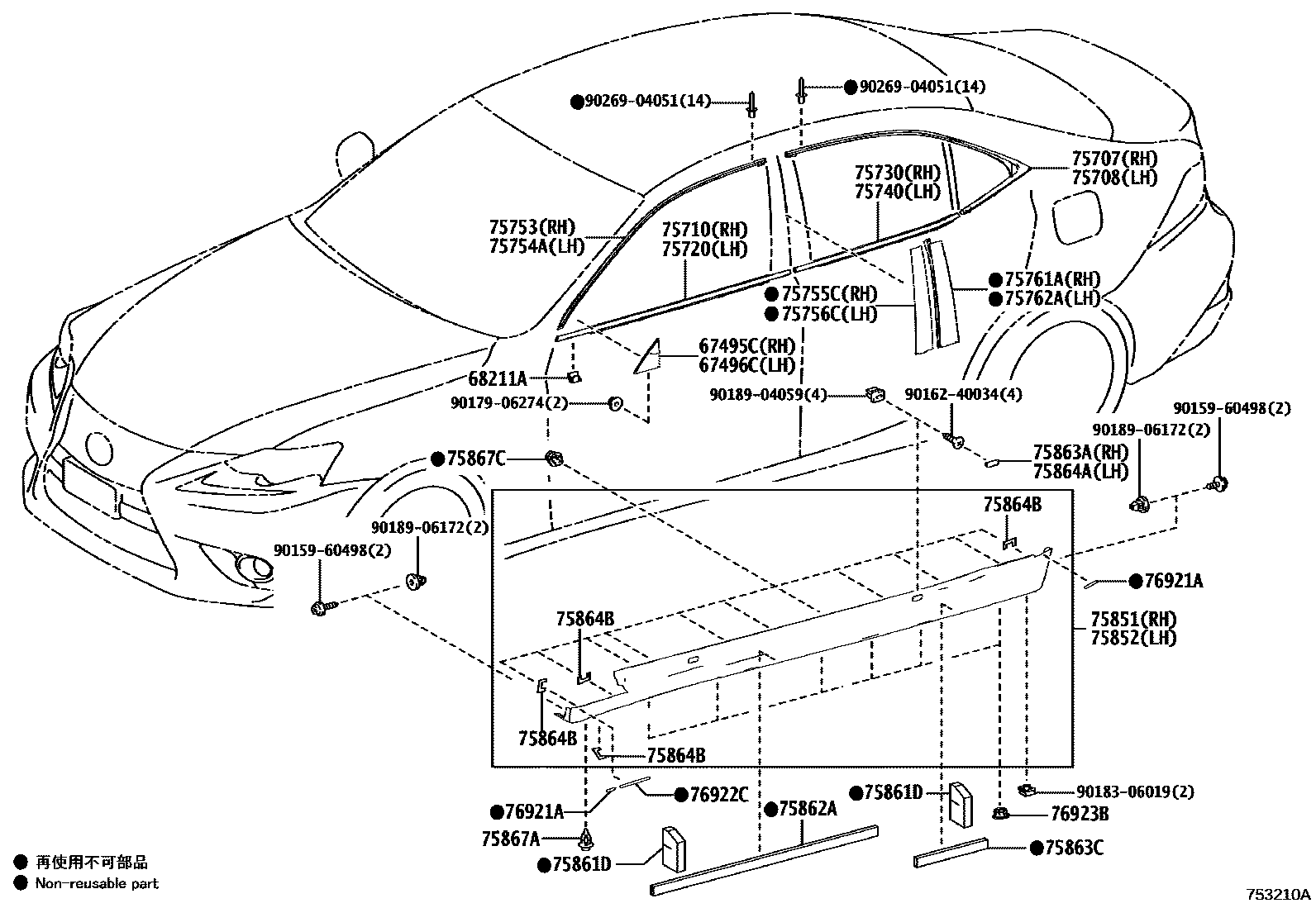

SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
68211ACLIP, DOOR BELT MOULDING
75707MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, RH
75708MOULDING SUB-ASSY, REAR DOOR WINDOW FRAME, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
75851MOULDING, ROCKER PANEL, RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC SILVER,1J2
MANGANESE LUSTER,1K2
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
MADDER RED,3T2
RADIANT RED CONTRAST LAYE,3T5
BLUE ME.,8U1
LAPIS LAZULI MC.,8V3
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
75852MOULDING, ROCKER PANEL, LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
SONIC SILVER,1J2
MANGANESE LUSTER,1K2
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
MADDER RED,3T2
RADIANT RED CONTRAST LAYE,3T5
BLUE ME.,8U1
LAPIS LAZULI MC.,8V3
HEAT BLUE CONTRAST LAYERI,8X1
DEEP BLUE MC.,8X5
75861DPROTECTOR, ROCKER PANEL MOULDING, NO.1
75862APROTECTOR, ROCKER PANEL MOULDING, NO.2
75863ACOVER, ROCKER PANEL MOULDING END, REAR RH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
RED,3T5
MADDER RED,3T2
LAPIS LAZULI MC.,8V3
BLUE ME.,8U1
DEEP BLUE MC.,8X5
CELESTIAL BLUE GF.,8Y6
75863CPROTECTOR, ROCKER PANEL MOULDING, NO.3
75864ACOVER, ROCKER PANEL MOULDING END, REAR LH
WHITE PEARL CS.,077
WHITE NOVA GF.,083
SONIC QUARTZ,085
MERCURY GRAY MC.,1H9
SONIC SILVER,1J2
PLATINUM SILVER ME.,1J4
SONIC TITANIUM,1J7
MANGANESE LUSTER,1K2
SONIC IRIDIUM,1L2
SONIC CHROME,1L1
BLACK,212
STARLIGHT BLACK GF.,217
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
MADDER RED,3T2
LAPIS LAZULI MC.,8V3
BLUE ME.,8U1
BLUE,8X1
DEEP BLUE MC.,8X5
CELESTIAL BLUE GF.,8Y6
75864BPROTECTOR, ROCKER PANEL MOULDING, NO.4
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
76921APROTECTOR, SIDE MUDGUARD, NO.1
76922CPROTECTOR, SIDE MUDGUARD, NO.2
76923BRETAINER, SIDE MUDGUARD
9015960498
main90159-60498
9016240034
main90162-40034
9017906274
main90179-06274
9018306019
main90183-06019
9018904059
main90189-04059
9018906172
main90189-06172
9026904051
main90269-04051
35 parts on this diagram · 3 diagrams in section
