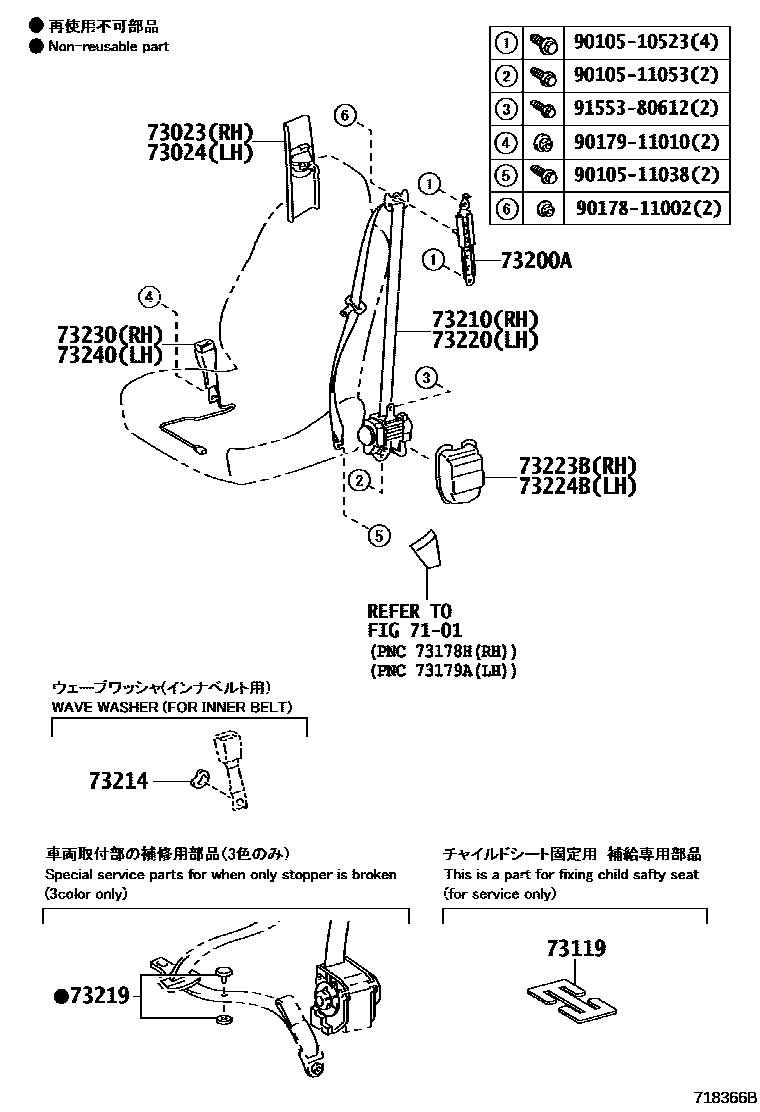

SEAT BELT & CHILD RESTRAINT SEAT

0001 1������� 0002 1�����

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-33030-A1iASE30,AVE3#,GSE3#201508-201610

IVORY,TRIM0#,50,51,52

main73023-33030-A2iASE30,AVE3#,GSE31201610-202009

ECRU,TRIM0#,1#,42,43,52,53

main73023-33030-B1iAVE30,GSE3#201304-201508

LT.GRAY,TRIM10,11,12,13,20,21,22,23

main73023-33030-B3iASE30,AVE3#,GSE3#201508-201610

MOON STONE,TRIM1#,20,21,22,24

main73023-33030-C0iASE30,AVE3#; GSE3#201508-201610

BLACK,TRIM20,21,22,23,26,3#,50,51,52,53; BLACK,TRIM20,21,22,23,3#,50,51,52,53

main73023-33030-C1iUSE30202209

BLACK,TRIM0#,6#,7#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-33030-A1iASE30,AVE3#,GSE3#201508-201610

IVORY,TRIM0#,50,51,52

main73024-33030-A2iASE30,AVE3#,GSE31201610-202009

ECRU,TRIM0#,1#,42,43,52,53

main73024-33030-B1iAVE30,GSE3#201304-201508

LT.GRAY,TRIM10,11,12,13,20,21,22,23

main73024-33030-B3iASE30,AVE3#,GSE3#201508-201610

MOON STONE,TRIM1#,20,21,22,24

main73024-33030-C0iASE30,AVE3#; GSE3#201508-201610

BLACK,TRIM20,21,22,23,26,3#,50,51,52,53; BLACK,TRIM20,21,22,23,3#,50,51,52,53

main73024-33030-C1iASE30,AVE3#; GSE31202111

BLACK,TRIM0#,2#,3#,4#,6#,7#,9#; BLACK,TRIM0#,6#,7#,9#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iAVE30,GSE3#201304-201508

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAVE30,GSE3#201507-201508

main73200-53010×2iAVE30,GSE3#201304-201506

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-53440-A0iAVE30,GSE3#201304-201307

IVORY,TRIM0#,50,51,52,53

main73210-53440-B0iAVE30,GSE3#201304-201307

LT.GRAY,TRIM10,11,12,13,20,21,22,23

main73210-53440-C0iAVE30,GSE3#201304-201307

BLACK,TRIM14,20,24,3#,50,54

main73210-53441-A0iAVE30,GSE3#201308-201508

IVORY,TRIM0#,50,51

main73210-53441-B0iAVE30,GSE3#201308-201508

LT.GRAY,TRIM1#,20,21

main73210-53441-C0iAVE30,GSE3#201308-201508

BLACK,TRIM20,21,3#,50,51

main73210-53442-A0iASE30,AVE3#,GSE3#201508-201610

IVORY,TRIM0#,50,51,52

main73210-53442-A1iASE30,AVE3#,GSE31201610-201710

ECRU,TRIM0#,1#,42,43,52,53

main73210-53442-B0iASE30,AVE3#,GSE31201610-201710

LT.GRAY,TRIM21,22,23,91,92,93

main73210-53442-B1iASE30,AVE3#,GSE3#201508-201610

MOON STONE,TRIM1#,20,21,22,24

main73210-53442-C0iASE30,AVE3#; GSE3#201508-201610

BLACK,TRIM20,21,22,23,26,3#,50,51,52,53; BLACK,TRIM20,21,22,23,3#,50,51,52,53

main73210-53443-A1iASE30,AVE3#,GSE31201710-202009

ECRU,TRIM1#,4#

main73210-53443-B0iASE30,AVE3#,GSE31201710-202009

LT.GRAY,TRIM21,22,23,91,92,93

main73210-53443-C0iASE30,AVE3#; GSE31202009-202110

BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,6#,7#

main73210-53444-C0iASE30,AVE3#; GSE31202208

BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,6#,7#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010×2iAVE30,GSE3#201304-201508

73219STOPPER, TONGUE PLATE

main73219-33010iASE30,AVE3#,GSE31202009-202110

main73219-33020iAVE30,GSE3#201304-201508

main73219-33030iASE30,AVE3#,GSE31,USE30202111

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-53330-A0iAVE30,GSE3#201304-201307

IVORY,TRIM0#,50,51,52,53

main73220-53330-B0iAVE30,GSE3#201304-201307

LT.GRAY,TRIM10,11,12,13,20,21,22,23

main73220-53330-C0iAVE30,GSE3#201304-201307

BLACK,TRIM14,20,24,3#,50,54

main73220-53331-A0iAVE30,GSE3#201308-201508

IVORY,TRIM0#,50,51

main73220-53331-B0iAVE30,GSE3#201308-201508

LT.GRAY,TRIM1#,20,21

main73220-53332-A0iASE30,AVE3#,GSE3#201508-201610

IVORY,TRIM0#,50,51,52

main73220-53332-A1iASE30,AVE3#,GSE31201610-201710

ECRU,TRIM0#,1#,42,43,52,53

main73220-53332-B0iASE30,AVE3#,GSE31201610-201710

LT.GRAY,TRIM21,22,23,91,92,93

main73220-53332-B1iASE30,AVE3#,GSE3#201508-201610

MOON STONE,TRIM1#,20,21,22,24

main73220-53332-C0iASE30,AVE3#; GSE3#201508-201610

BLACK,TRIM20,21,22,23,26,3#,50,51,52,53; BLACK,TRIM20,21,22,23,3#,50,51,52,53

main73220-53333-A1iASE30,AVE3#,GSE31201710-202009

ECRU,TRIM1#,4#

main73220-53333-B0iASE30,AVE3#,GSE31201710-202009

LT.GRAY,TRIM21,22,23,91,92,93

main73220-53333-C0iASE30,AVE3#,GSE31201710-202009

BLACK,TRIM22,24,25,3#,8#,92,94,95

main73220-53334-C0iUSE30202208-202506

BLACK,TRIM0#,6#,7#

main73220-53331-C0iAVE30,GSE3#201308-201508

73223BCOVER, FRONT SEAT BELT RETRACTOR, RH

main73223-53020iAVE30,GSE3#201304-201508

73224BCOVER, FRONT SEAT BELT RETRACTOR, LH

main73224-53020iAVE30,GSE3#201304-201508

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-53440-C0iAVE30,GSE3#201304-201508

BLACK,TRIM0#,1#,2#,3#,5#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-53070-C0iASE30,AVE3#; GSE31202111

BLACK,TRIM0#,2#,3#,4#,6#,7#,9#; BLACK,TRIM0#,6#,7#,9#

9010510523

main90105-10523

9010511038

main90105-11038

9010511053

main90105-11053

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

19 parts on this diagram · 2 diagrams in section
