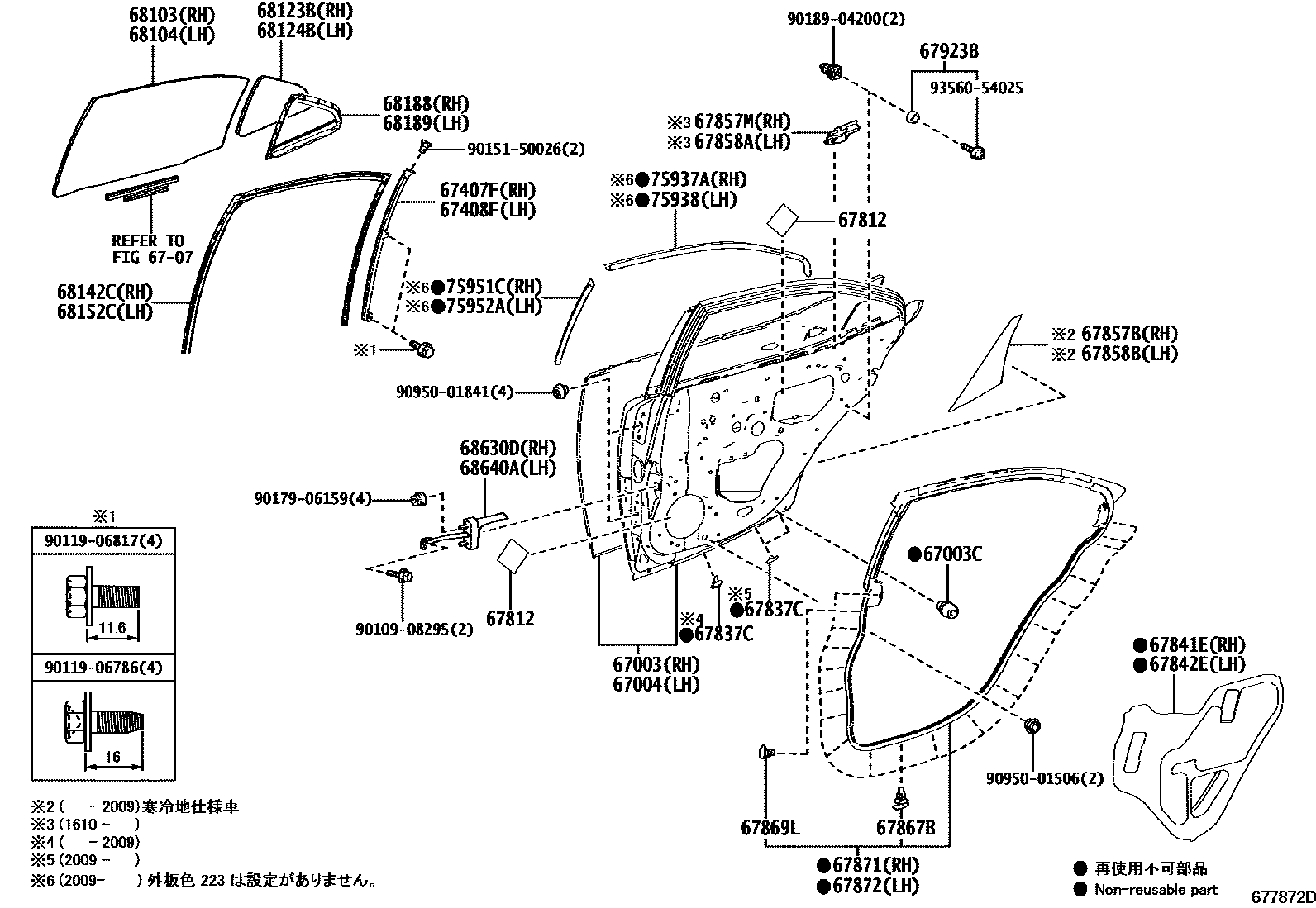

REAR DOOR PANEL & GLASS

0001 1������� 0002 1������

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-53070iASE30,AVE3#,GSE3#201508-201610

main67003-53090iASE30,AVE3#,GSE31,USE30202111

67003CCUSHION, REAR DOOR PANEL

main90541-09069×2iASE30,AVE3#,GSE3#201508-201610

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-53070iASE30,AVE3#,GSE3#201508-201610

main67004-53090iASE30,AVE3#,GSE31,USE30202111

6707REAR DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-07

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-53040iASE30,AVE3#,GSE3#201508-201610

main67407-53050iASE30,AVE3#,GSE31,USE30202111

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-53040iASE30,AVE3#,GSE31201610-202009

main67408-53050iASE30,AVE3#,GSE31202009-202110

67812PAD, REAR DOOR SILENCER

main67811-30100×4iASE30,AVE3#,GSE31202009-202110

67837CSEAL, REAR DOOR DUST PROOF

main67837-30060×2iASE30,AVE3#,GSE31201610-202009

main67837-47060×4iASE30,AVE3#,GSE31202009-202110

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-53050iASE30,AVE3#,GSE31202009-202110

main67841-53060iAVE30,GSE3#201304-201508

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-53050iASE30,AVE3#,GSE31202009-202110

main67842-53060iASE30,AVE3#,GSE31201610-202009

67857BPROTECTOR, REAR DOOR PANEL, RH

main67857-53020iAVE30,GSE3#201304-201508

67857MPROTECTOR, REAR DOOR PANEL, RH

main67857-53030iASE30,AVE3#,GSE31201610-202009

main67857-53040iASE30,AVE3#,GSE31202009-202110

67858APROTECTOR, REAR DOOR PANEL, LH

main67858-53020iASE30,AVE3#,GSE31201610-202009

main67858-53030iASE30,AVE3#,GSE31202009-202110

67858BPROTECTOR, REAR DOOR PANEL, LH

main67858-53010iAVE30,GSE3#201304-201508

67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)

main67867-12150×38iASE30,AVE3#,GSE31202009-202110

67869LCLIP, REAR DOOR WEATHERSTRIP

main90467-04034×2iAVE30,GSE3#201304-201508

67871WEATHERSTRIP, REAR DOOR, RH

main67871-53040iAVE30,GSE3#201304-201508

main67871-53050iASE30,AVE3#,GSE31202009-202110

67872WEATHERSTRIP, REAR DOOR, LH

main67872-53040iAVE30,GSE3#201304-201508

main67872-53050iASE30,AVE3#,GSE31202009-202110

67923BCUSHION, REAR DOOR STIFFENER, NO.1

main67923-48060×2iAVE30,GSE3#201304-201508

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-53160iAVE30,GSE3#201304-201508

main68113-53200iASE30,AVE3#,GSE31202009-202110

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-53160iAVE30,GSE3#201304-201508

main68114-53200iASE30,AVE3#,GSE31202009-202110

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-53120iAVE30,GSE3#201304-201508

main68123-53160iASE30,AVE3#,GSE31202009-202110

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-53120iAVE30,GSE3#201304-201508

main68124-53160iASE30,AVE3#,GSE31202009-202110

68142CRUN, REAR DOOR GLASS, RH

main68142-53040iAVE30,GSE3#201304-201508

main68142-53050iASE30,AVE3#,GSE31202009-202110

68152CRUN, REAR DOOR GLASS, LH

main68152-53040iASE30,AVE3#,GSE3#201508-201610

main68152-53050iASE30,AVE3#,GSE31202009-202110

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-53040iAVE30,GSE3#201304-201508

main68188-53050iASE30,AVE3#,GSE31202009-202110

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-53040iAVE30,GSE3#201304-201508

main68189-53050iASE30,AVE3#,GSE31202009-202110

68630DCHECK ASSY, REAR DOOR, RH

main68630-53040iAVE30,GSE3#201304-201508

68640ACHECK ASSY, REAR DOOR, LH

main68640-53030iAVE30,GSE3#201304-201508

75937ATAPE, BLACK OUT, INNER UPPER RH

main75937-53010iAVE30,GSE3#201304-201508

main75937-53020iASE30,AVE3#,GSE31202009-202110

75938TAPE, BLACK OUT, INNER UPPER LH

main75938-53010iAVE30,GSE3#201304-201508

main75938-53020iASE30,AVE3#,GSE31202009-202110

75951CTAPE, BLACK OUT, INNER FRONT RH

main75951-53010iAVE30,GSE3#201304-201508

75952ATAPE, BLACK OUT, INNER FRONT LH

main75952-53010iAVE30,GSE3#201304-201508

9010908295

main90109-08295

9011906786

main90119-06786

9011906817

main90119-06817

9015150026

main90151-50026

9017906159

main90179-06159

9018904200

main90189-04200

9095001506

main90950-01506

9095001841

main90950-01841

9356054025

main93560-54025

42 parts on this diagram · 2 diagrams in section
