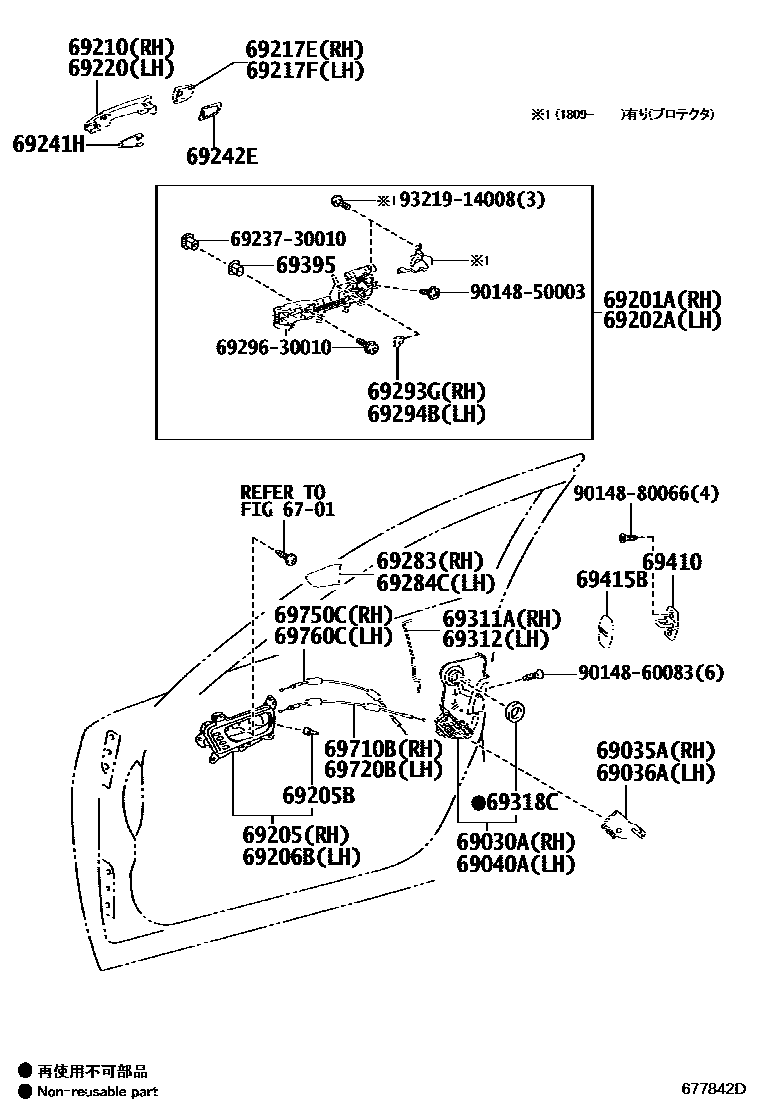

FRONT DOOR LOCK & HANDLE
6701
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#,3#,9#
BLACK/BLACK,TRIM0#,2#,3#,6#,7#
BLACK/BLACK,TRIM0#,6#,7#
BLACK/BLACK,TRIM0#,6#,7#,9#
BLACK/BLACK,TRIM0#,2#,3#,6#,7#,9#
OCHER,TRIM4#
BLACK/BLACK,TRIM0#,6#,7#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#,3#,9#
BLACK/BLACK,TRIM0#,2#,3#,6#,7#,9#
BLACK/BLACK,TRIM0#,6#,7#
BLACK/BLACK,TRIM0#,2#,3#,6#,7#
BLACK/BLACK,TRIM0#,6#,7#,9#
OCHER,TRIM4#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
sub69283-30050
sub69283-30050
sub69283-30050
sub69283-30050
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
sub69284-30050
sub69284-30050
sub69284-30050
sub69284-30050
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69395BUSH(FOR DOOR OUTSIDE HANDLE)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9321914008
main93219-14008
36 parts on this diagram · 1 diagram in section
