Toyota 651120 — LUGGAGE COMPARTMENT DOOR & LOCK

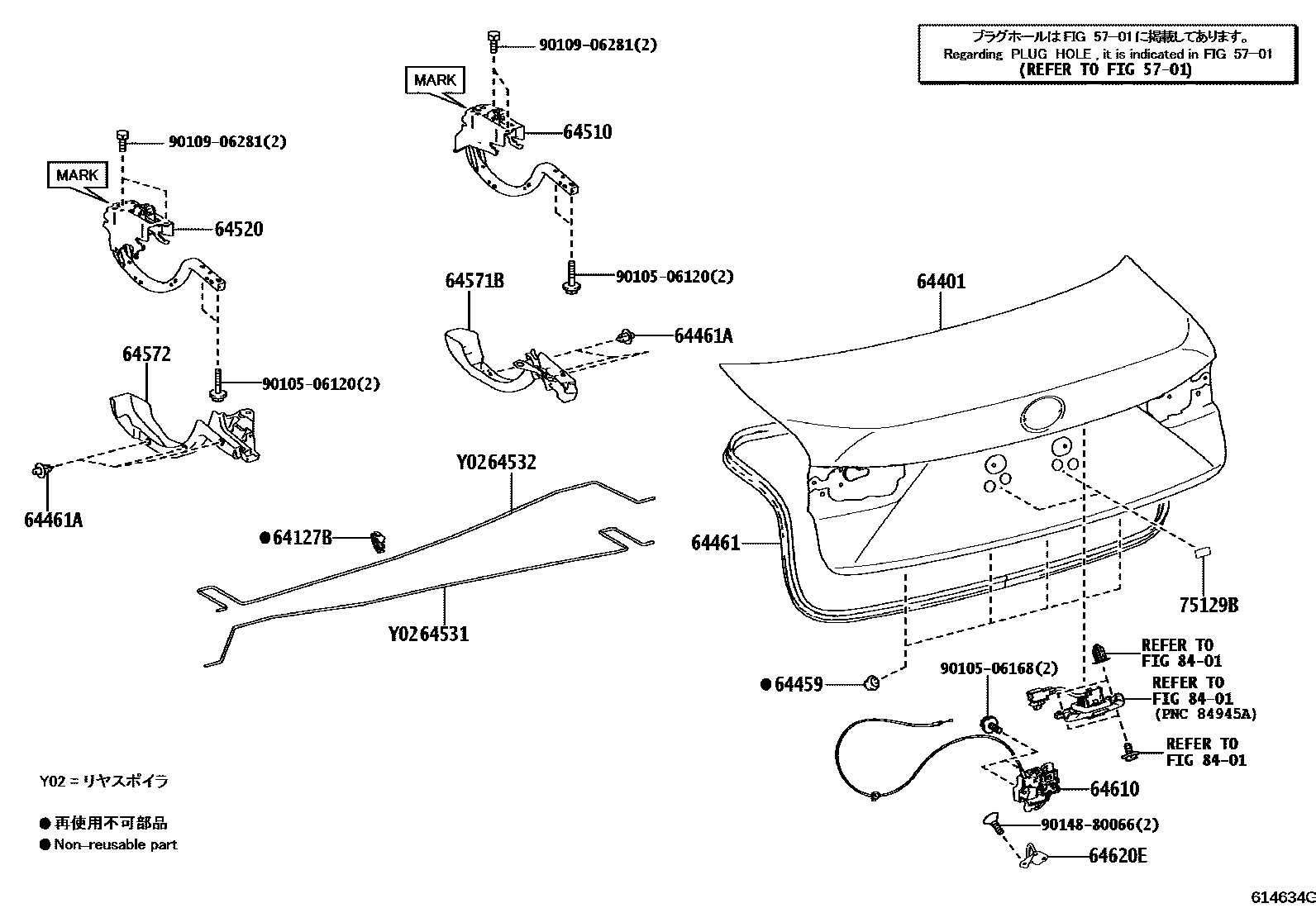

Parts diagram

5701HOLE PLUG

→ Go to FIG 57-01

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

64459CUSHION, LUGGAGE COMPARTMENT DOOR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

64461ACLIP(FOR DECK TRIM COVER)

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

75129BCUSHION, REAR LICENCE PLATE

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506120

9010506168

9010906281

9014880066

20 parts on this diagram · 2 diagrams in section

LUGGAGE COMPARTMENT DOOR & LOCK for Toyota 651120

This section contains 23 genuine Toyota parts for the LUGGAGE COMPARTMENT DOOR & LOCK system of the Toyota 651120. Key components include: HOLE PLUG, SUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR, CUSHION, LUGGAGE COMPARTMENT DOOR, WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR.
