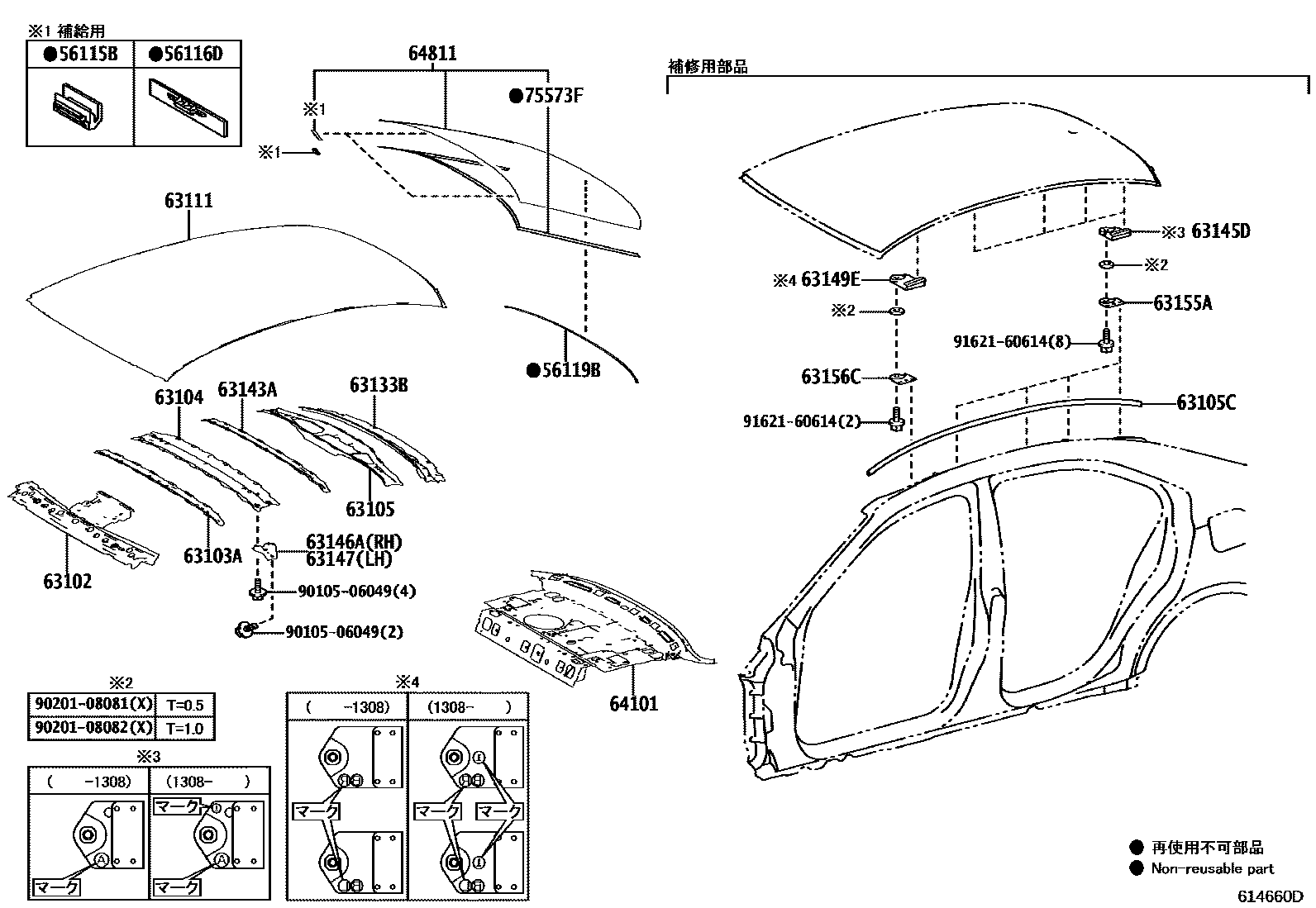

ROOF PANEL & BACK WINDOW GLASS

0001 1������� 0002 1�������(������) 0003 1������

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2iASE30,AVE3#,GSE3#201508-201610

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iAVE30,GSE3#201304-201508

56119BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iASE30,AVE3#,GSE31201610-202009

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63102-53904iASE30,AVE3#,GSE31202009-202110

main63102-53905iASE30,AVE30,GSE31,USE30202111

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63107-53030iASE30,AVE3#,GSE31202009-202110

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63141-53050iASE30,AVE3#,GSE3#201508-201610

63105REINFORCEMENT SUB-ASSY, ROOF PANEL, REAR

main63128-53040iAVE30,GSE3#201304-201508

main63128-53050iASE30,AVE3#,GSE31202009-202110

63105CMOULDING SUB-ASSY, ROOF DRIP

main63215-53010×2iASE30,AVE3#,GSE31202009-202110

63111PANEL, ROOF

main63111-53210iASE30,AVE3#,GSE31202009-202110

main63111-53140supersedes 63111-53170iAVE30,GSE3#201304-201308

main63111-53180supersedes 63111-53170iASE30,AVE3#,GSE3#201508-201610

main63111-53220iASE30,AVE30,GSE31,USE30202111

63133BFRAME, BACK WINDOW

main63133-53050iAVE30,GSE3#201304-201501

main63133-53051iAVE30,GSE3#201501-201508

main63133-53060iASE30,AVE3#,GSE31202009-202110

63143AREINFORCEMENT, ROOF PANEL

main63148-53040iAVE30,GSE3#201304-201508

63145DBRACKET, ROOF REINFORCEMENT

main63145-53020×8iAVE30,GSE3#201304-201308

main63145-53021×8iAVE30,GSE3#201308-201508

main63145-53040×8iASE30,AVE3#,GSE31202009-202110

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-53010iAVE30,GSE3#201304-201306

main63146-53012iAVE30,GSE3#201312-201508

63147BRACKET, ROOF PANEL REINFORCEMENT

main63146-53010iAVE30,GSE3#201304-201306

main63146-53012iAVE30,GSE3#201312-201508

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63147-53010iAVE30,GSE3#201304-201308

main63147-53011iAVE30,GSE3#201308-201508

main63148-53050iAVE30,GSE3#201304-201308

main63148-53051iASE30,AVE3#,GSE31201610-202009

63155APLATE, ROOF PANEL REINFORCEMENT

main63155-53010×8iASE30,AVE3#,GSE3#201508-201610

63156CPLATE, ROOF PANEL REINFORCEMENT, NO.2

main63156-53010×2iAVE30,GSE3#201304-201508

64101PANEL SUB-ASSY, UPPER BACK

main64101-53050iAVE30,GSE3#201304-201508

main64101-53060iASE30,AVE3#,GSE31,USE30202111

64811GLASS, BACK WINDOW

main64801-53100iAVE30,GSE3#201304-201508

main64801-53101iASE30,AVE3#,GSE31201610-202009

main64801-53150iASE30,AVE3#,GSE31202009-202110

75573FMOULDING, BACK WINDOW, OUTSIDE

main75571-53040iAVE30,GSE3#201304-201508

main75571-53050iASE30,AVE3#,GSE31202009-202110

9010506049

main90105-06049

9020108081

main90201-08081

9020108082

main90201-08082

9162160614

main91621-60614

24 parts on this diagram · 3 diagrams in section
