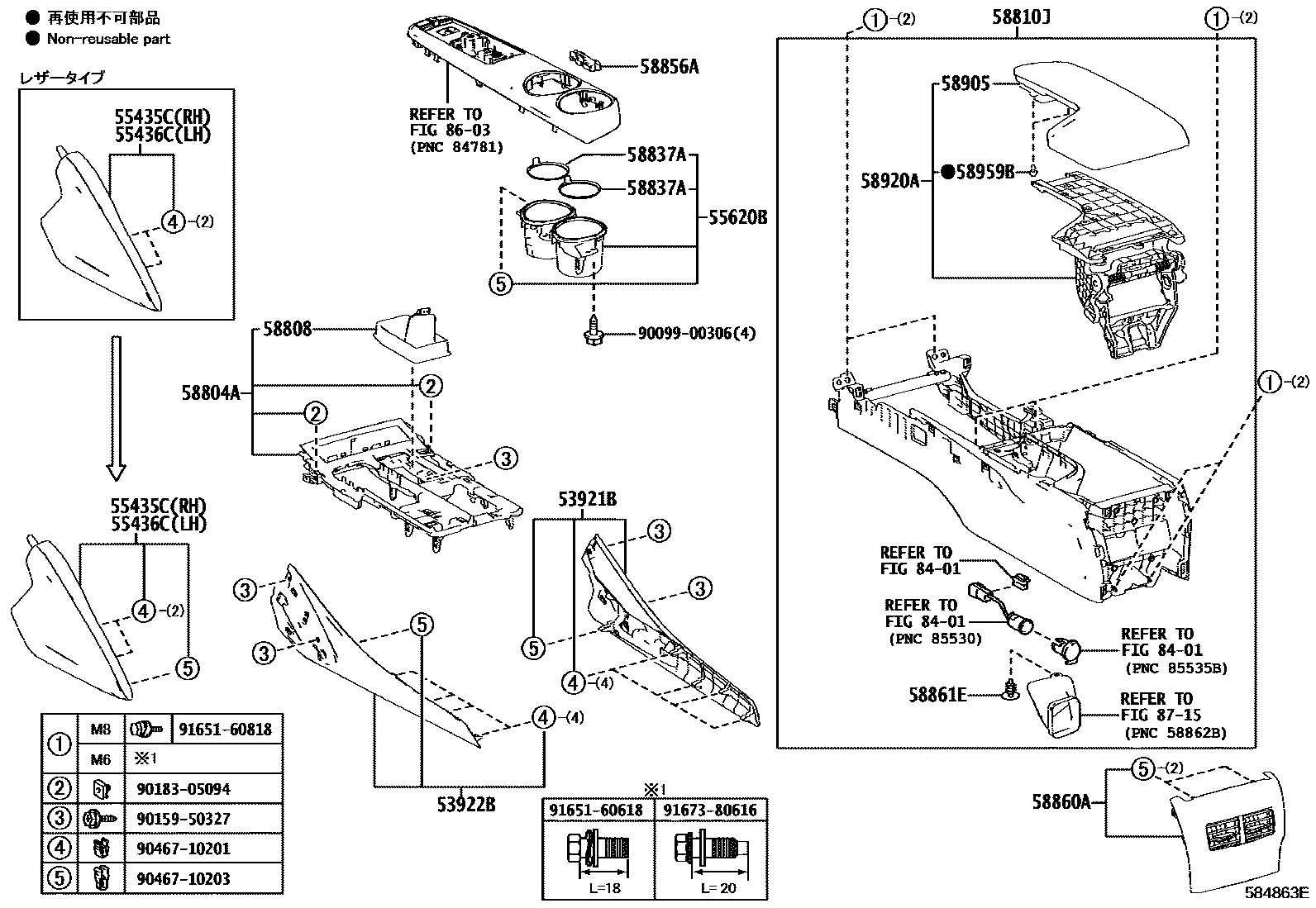

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1

53921BGARNISH, FRONT PANEL, RH

main55011-53010iAVE30,GSE3#201304-201407

main55011-53020iAVE30,GSE3#201407-201509

main55011-53021iASE30,AVE3#,GSE3#201509-201610

main55011-53030iASE30,AVE3#,GSE31201610-202009

main55011-53040iASE30,AVE3#,GSE31202009-202110

53922BGARNISH, FRONT PANEL, LH

main55012-53010iAVE30,GSE3#201304-201407

main55012-53020iAVE30,GSE3#201407-201509

main55012-53021iASE30,AVE3#,GSE3#201509-201610

main55012-53030iASE30,AVE3#,GSE31201610-202009

main55012-53040iASE30,AVE3#,GSE31,USE30202009-202110

55435CPANEL, INSTRUMENT PANEL FINISH, END RH

main55435-53010-C0iAVE30,GSE3#201304-201407

BLACK,TRIM0#,1#,2#,5#

main55435-53020-C0iASE30,AVE3#,GSE3#201407-201610

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main55435-53020-C3iASE30,AVE3#,GSE3#201508-201610

BLACK/DK.ROSE,TRIM3#

main55435-53020-C3iAVE30,GSE3#201407-201508

BLACK/DK.ROSE,TRIM30,31

main55435-53020-C4iAVE30,GSE3#201407-201508

BLACK/RED,TRIM32

main55435-53040-C4iASE30,AVE3#,GSE31201610-202009

BLACK/DK.ROSE,TRIM3#

main55435-53040-C4iASE30,AVE3#,GSE31201809-201909

BLACK/DK.ROSE,TRIM32,34,35

main55435-53040-C5iASE30,AVE3#,GSE31201610-202009

BLACK/LT.GRAY,TRIM1#,2#,4#

main55435-53040-C6iASE30,AVE3#,GSE31201610-202009

BLACK/RED,TRIM9#

main55435-53040-C8iASE30,AVE3#,GSE31201809-201909

BLACK/RED,TRIM36

main55435-53040-C9iASE30,AVE3#,GSE31201909-202009

BLACK/GRAY/SMOKY BLUE,TRIM8#

main55435-53050-C1iASE30,AVE3#202009-202110

BLACK,TRIM2#,3#,4#

main55435-53060-C1iASE30,AVE3#202009-202110

main55435-53060-C1iGSE31202009-202110

BLACK/LT.GRAY,TRIM0#,6#

main55435-53060-C1iGSE31202009-202110

main55435-53060-C1iGSE31202111

main55435-53060-C1iGSE31202111

main55435-53060-C4iGSE31202111-202209

main55435-53060-C4iGSE31202111-202209

main55435-53060-C4iASE30,AVE3#202111-202209

BLACK/RED,TRIM9#

main55435-53060-D0iASE30,AVE3#202009-202110

main55435-53060-D0iGSE31202009-202110

RED,TRIM7#

main55435-53060-D0iGSE31202009-202110

main55435-53070-C0iUSE30202411

BLACK/LT.GRAY,TRIM6#

main55435-53070-C0iUSE30202209-202411

BLACK/LT.GRAY,TRIM61,63,67

main55435-53070-C1iUSE30202209-202411

BLACK/BROWN,TRIM65

55436CPANEL, INSTRUMENT PANEL FINISH, END LH

main55436-53010-C0iAVE30,GSE3#201304-201407

BLACK,TRIM0#,1#,2#,5#

main55436-53020-C0iASE30,AVE3#,GSE3#201407-201610

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main55436-53020-C3iASE30,AVE3#,GSE3#201508-201610

BLACK/DK.ROSE,TRIM3#

main55436-53020-C3iAVE30,GSE3#201407-201508

BLACK/DK.ROSE,TRIM30,31

main55436-53020-C4iAVE30,GSE3#201407-201508

BLACK/RED,TRIM32

main55436-53040-C4iASE30,AVE3#,GSE31201610-202009

BLACK/DK.ROSE,TRIM3#

main55436-53040-C4iASE30,AVE3#,GSE31201809-201909

BLACK/DK.ROSE,TRIM32,34,35

main55436-53040-C5iASE30,AVE3#,GSE31201610-202009

BLACK/LT.GRAY,TRIM1#,2#,4#

main55436-53040-C6iASE30,AVE3#,GSE31201610-202009

BLACK/RED,TRIM9#

main55436-53040-C8iASE30,AVE3#,GSE31201809-201909

BLACK/RED,TRIM36

main55436-53040-C9iASE30,AVE3#,GSE31201909-202009

BLACK/GRAY/SMOKY BLUE,TRIM8#

main55436-53050-C1iASE30,AVE3#202009-202110

BLACK,TRIM2#,3#,4#

main55436-53060-C1iGSE31202009-202110

BLACK/LT.GRAY,TRIM0#,6#

main55436-53060-C1iGSE31202009-202110

main55436-53060-C1iGSE31202009-202110

main55436-53060-C1iGSE31202111

main55436-53060-C1iGSE31202111

main55436-53060-C4iGSE31202111-202209

BLACK/RED,TRIM9#

main55436-53060-C4iGSE31202111-202209

main55436-53060-C4iASE30,AVE3#202111-202209

main55436-53060-D0iGSE31202009-202110

main55436-53060-D0iGSE31202009-202110

RED,TRIM7#

main55436-53060-D0iGSE31202009-202110

main55436-53070-C0iUSE30202411

BLACK/LT.GRAY,TRIM6#

main55436-53070-C0iUSE30202209-202411

BLACK/LT.GRAY,TRIM61,63,67

main55436-53070-C1iUSE30202209-202411

BLACK/BROWN,TRIM65

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-53150-C0iAVE30,GSE3#201304-201407

BLACK,TRIM0#,1#,2#,3#,5#

main55620-53190-C0iAVE30,GSE3#201407-201610

BLACK,TRIM0#,1#,2#,3#,5#

main55620-53210-C0iASE30,AVE3#,GSE31201610-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-53380-C0iGSE30,31201304-201407

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main58804-53390-C0iAVE30,GSE35201304-201407

main58804-53390-C0iAVE30,GSE35201304-201407

main58804-53390-C0iAVE30,GSE35201304-201407

main58804-53390-C0iGSE30,31201304-201407

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main58804-53390-C1iGSE30,31201304-201407

main58804-53390-C1iAVE30,GSE35201304-201407

BLACK/DK.ROSE,TRIM30

main58804-53390-C1iAVE30,GSE35201304-201407

main58804-53390-C1iAVE30,GSE35201304-201407

main58804-53450-C0iASE30,GSE31201407-201509

BLACK/LT.GRAY,TRIM0#,1#,2#

main58804-53451-C0iASE30,GSE31201610-202009

BLACK/LT.GRAY,TRIM1#,2#,4#,9#

main58804-53451-C0iASE30,GSE31201509-201610

BLACK/LT.GRAY,TRIM0#,1#,2#

main58804-53460-C0iAVE30,GSE35201410-201507

BLACK/DK.ROSE,TRIM30,31

main58804-53460-C0iAVE30,GSE35201407-201511

BLACK/DK.ROSE,TRIM3#

main58804-53460-C0iAVE30,GSE35201407-201511

main58804-53460-C0iAVE30,GSE35201407-201511

main58804-53460-C0iAVE30,GSE35201407-201511

main58804-53460-C0iAVE30,GSE35201410-201507

main58804-53460-C0iAVE30,GSE35201410-201507

main58804-53460-C0iAVE30,GSE35201410-201507

main58804-53460-C1iGSE30,31201407-201511

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main58804-53460-C1iAVE3#,GSE35201407-201511

main58804-53460-C1iASE30,GSE31201407-201511

main58804-53460-C1iASE30,GSE31201407-201511

main58804-53460-C2iAVE30,GSE35201410-201507

BLACK/RED,TRIM32

main58804-53461-C0iAVE3#201512-202009

main58804-53461-C0iAVE3#201512-202009

main58804-53461-C0iAVE3#201512-202009

main58804-53461-C0iASE30,GSE31201512-202009

BLACK/DK.ROSE,TRIM3#

main58804-53461-C0iAVE3#201809-201909

BLACK/DK.ROSE,TRIM32,34,35

main58804-53461-C0iAVE3#201809-201909

main58804-53461-C0iAVE3#201809-201909

main58804-53461-C0iAVE3#201809-201909

main58804-53461-C1iASE30,GSE31201610-202009

BLACK/LT.GRAY,TRIM1#,2#,4#,9#

main58804-53461-C1iAVE3#,GSE35201512-201610

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main58804-53461-C1iAVE3#,GSE35201512-201610

main58804-53461-C1iAVE3#,GSE35201512-201610

main58804-53461-C1iAVE3#,GSE35201512-201610

main58804-53461-C1iAVE3#201610-202009

main58804-53461-C1iAVE3#201610-202009

main58804-53461-C1iAVE3#201610-202009

main58804-53461-C2iAVE3#201809-201909

BLACK/RED,TRIM36

main58804-53461-C2iASE30,GSE31201809-201909

main58804-53461-C2iASE30,GSE31201809-201909

main58804-53461-C2iASE30,GSE31201809-201909

main58804-53461-C3iAVE3#201909-202009

BLACK/SMOKY BLUE,TRIM8#

main58804-53461-C3iAVE3#201909-202009

main58804-53461-C3iAVE3#201909-202009

main58804-53461-C3iAVE3#201909-202009

main58804-53480-C2iASE30,AVE3#,GSE31202009-202110

BLACK/RED,TRIM7#

main58804-53480-C2iASE30,AVE3#,GSE31202111

BLACK/RED,TRIM7#,9#

main58804-53480-C3iASE30,AVE3#,GSE31202111

BLACK/LT.GRAY,TRIM0#,60,62,64,66,68

main58804-53480-C3iUSE30202209

BLACK/LT.GRAY,TRIM0#,60,61,63

main58804-53480-C3iASE30,AVE3#,GSE31202009-202110

BLACK/LT.GRAY,TRIM0#,6#

main58804-53480-C4iASE30,AVE3#202111

BLACK/BLACK,TRIM2#,3#,4#,68

main58804-53480-C4iGSE31202111

BLACK/BLACK,TRIM68

main58804-53480-C4iUSE30202209

BLACK/BLACK,TRIM67

main58804-53480-C4iASE30,AVE3#202009-202110

BLACK/BLACK,TRIM2#,3#,4#

main58804-53480-C5iUSE30202209-202411

BLACK/BROWN,TRIM65

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-53050-20iASE30,GSE31201909-202009

BLACK/SMOKY BLUE,TRIM8#

main58808-53050-20iAVE3#201909-202009

main58808-53050-20iASE30,GSE31201909-202009

main58808-53050-20iAVE3#201909-202009

main58808-53050-C0iASE30,GSE31201304-201610

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main58808-53050-C0iGSE30,31201407-201610

BLACK/LT.GRAY,TRIM0#,1#,2#

main58808-53050-C0iGSE30,31201407-201610

main58808-53050-C0iGSE30,31201407-201610

main58808-53050-C0iGSE30,31201407-201610

main58808-53050-C0iASE30,AVE3#,GSE31201610-202009

BLACK/LT.GRAY,TRIM1#,2#,4#,9#

main58808-53050-C1iAVE30,GSE35201304-201407

BLACK/DK.ROSE,TRIM30

main58808-53050-C1iAVE3#201407-202009

BLACK/DK.ROSE,TRIM3#

main58808-53050-C1iAVE3#201407-202009

main58808-53050-C1iAVE3#201407-202009

main58808-53050-C1iAVE3#201407-202009

main58808-53050-C1iAVE30,GSE35201410-201508

main58808-53050-C1iAVE30,GSE35201410-201508

BLACK/DK.ROSE,TRIM30,31

main58808-53050-C1iAVE3#201809-201909

BLACK/DK.ROSE,TRIM32,34,35

main58808-53050-C1iAVE3#201809-201909

main58808-53050-C1iAVE3#201809-201909

main58808-53050-C1iAVE3#201809-201909

main58808-53050-C1iGSE30,31201410-201508

main58808-53050-C1iGSE30,31201410-201508

main58808-53050-C1iGSE30,31201304-201407

main58808-53050-C1iGSE30,31201304-201407

main58808-53050-C1iGSE30,31201304-201407

main58808-53050-C5iASE30,GSE31201809-201909

main58808-53050-C5iAVE30,GSE35201410-201508

BLACK/RED,TRIM32

main58808-53050-C5iAVE3#201809-201909

BLACK/RED,TRIM36

main58808-53050-C5iAVE3#201809-201909

main58808-53050-C5iAVE3#201809-201909

main58808-53070-C0iASE30,AVE3#,GSE31202009-202110

BLACK/RED,TRIM7#

main58808-53070-C0iASE30,AVE3#,GSE31202111

BLACK/RED,TRIM7#,9#

main58808-53070-C1iASE30,AVE3#202009-202110

BLACK/LT.GRAY,TRIM0#,6#

main58808-53070-C1iASE30,AVE3#202009-202110

BLACK/LT.GRAY,TRIM0#,2#,31,32,33,41,42,43,6#

main58808-53070-C1iASE30,AVE3#,GSE31202111

BLACK/LT.GRAY,TRIM0#,60,62,64,66,68

main58808-53070-C1iUSE30202209

BLACK/LT.GRAY,TRIM0#,60,61,63

main58808-53070-C5iGSE31202111

BLACK/BLACK,TRIM68

main58808-53070-C5iGSE31202111

BLACK/BLACK,TRIM2#,3#,4#,68

main58808-53070-C5iASE30,AVE3#202009-202110

BLACK/BLACK,TRIM21,22,23,31,32,33,41,42,43

main58808-53070-C5iUSE30202209

BLACK/BLACK,TRIM67

main58808-53070-C8iUSE30202209-202411

BLACK/BROWN,TRIM65

58810JBOX ASSY, CONSOLE

main58810-24210-20iUSE30202209-202411

BLACK/BROWN,TRIM65

main58810-24210-C9iASE30,AVE3#202411

main58810-24210-C9iASE30,AVE3#202411

BLACK/LT.GRAY,TRIM6#

main58810-24210-C9iGSE31202411

main58810-24210-C9iUSE30202209-202411

BLACK/LT.GRAY,TRIM61,63,67

main58810-24210-C9iGSE31202209-202411

main58810-24210-C9iGSE31202209-202411

main58810-24230-A0iASE30,AVE3#,GSE31202009-202110

WHITE,TRIM0#

main58810-24230-C5iASE30,AVE3#202009-202110

BLACK,TRIM6#

main58810-24230-C5iGSE31202009-202110

BLACK,TRIM2#,6#

main58810-24230-C7iASE30,AVE3#,GSE31202111-202209

BLACK/RED,TRIM9#

main58810-24230-D0iASE30,AVE3#202009-202110

DK.ROSE,TRIM3#

main58810-24230-D1iASE30,AVE3#,GSE31202009-202110

RED,TRIM7#

main58810-24230-E0iASE30,AVE3#202009-202110

OCHER,TRIM4#

main58810-53310-C6iASE30,AVE3#,GSE3#201304-201610

BLACK/DK.ROSE,TRIM3#

main58810-53310-C6iAVE30,GSE3#201410-201508

BLACK/DK.ROSE,TRIM30,31

main58810-53310-C7iASE30,AVE3#,GSE3#201304-201610

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main58810-53310-C8iAVE30,GSE3#201410-201508

BLACK/RED,TRIM32

main58810-53480-C0iASE30,AVE3#,GSE31201610-201702

BLACK/DK.ROSE,TRIM3#

main58810-53480-C1iASE30,AVE3#,GSE31201610-201702

BLACK/LT.GRAY,TRIM1#,2#,4#,9#

main58810-53481-C2iASE30,AVE3#,GSE31201809-201909

BLACK/DK.ROSE,TRIM32,34,35

main58810-53481-C2iASE30,AVE3#,GSE31201703-202009

BLACK/DK.ROSE,TRIM3#

main58810-53481-C3iASE30,AVE3#,GSE31201703-202009

BLACK/LT.GRAY,TRIM1#,2#,4#,9#

main58810-53481-C4iASE30,AVE3#,GSE31201809-201909

BLACK/RED,TRIM36

main58810-53481-C5iASE30,AVE3#,GSE31201909-202009

BLACK/SMOKY BLUE,TRIM8#

58837APAD, CONSOLE BOX SILENCER, NO.2

main58837-24020iASE30,AVE3#,GSE31,USE30202009-202110

main58837-53020iASE30,AVE3#,GSE3#201304-201610

58856AHOLDER, CONSOLE BOX

main58856-53020-C0iAVE30,GSE3#201304-201610

BLACK,TRIM0#,1#,2#,3#,5#

58860AREGISTER ASSY, CONSOLE BOX

main58860-53030-C0iGSE31202111

BLACK,TRIM0#,6#,9#

main58860-53030-C0iASE30,AVE3#202111

BLACK,TRIM0#,2#,3#,4#,6#,9#

main58860-53030-C0iASE30,AVE3#,GSE3#201304-201610

BLACK,TRIM0#,1#,2#,3#,5#

main58860-53030-C0iUSE30202209

BLACK,TRIM0#,6#,73

main58860-53030-C0iGSE31202106-202110

BLACK,TRIM0#,2#,31,32,33,4#,6#

main58860-53030-C0iASE30,AVE3#202106-202110

BLACK,TRIM0#,6#

main58860-53030-C0iASE30,AVE3#,GSE31201610-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#

main58860-53030-C2iGSE31202009-202106

BLACK,TRIM0#,6#

main58860-53030-C2iASE30,AVE3#202009-202106

BLACK,TRIM0#,2#,3#,4#,6#

main58860-53030-C3iASE30,AVE3#,GSE31202009-202106

BLACK/RED,TRIM7#

main58860-53030-D0iUSE30202209

RED,TRIM70

main58860-53030-D0iGSE31202106-202110

RED,TRIM3#,7#

main58860-53030-D0iGSE31202106-202110

RED,TRIM33,7#

main58860-53030-D0iASE30,AVE3#,GSE31202111

RED,TRIM7#

58861ECLIP, CONSOLE BOX DUCT

main90467-05162-C0iAVE30,GSE3#201304-202110

BLACK

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-24240-C7iGSE31202209-202411

main58905-24240-C7iGSE31202209-202411

main58905-24240-C7iASE30,AVE3#202209-202411

BLACK/LT.GRAY,TRIM61,63,67

main58905-24240-C7iGSE31202411

BLACK/LT.GRAY,TRIM6#

main58905-24240-C7iGSE31202411

main58905-24240-C7iASE30,AVE3#202411

main58905-24240-C8iUSE30202209-202411

BLACK/BROWN,TRIM65

main58905-24260-A0iASE30,AVE3#,GSE31202009-202110

WHITE,TRIM0#

main58905-24260-C6iASE30,AVE3#202009-202110

BLACK,TRIM2#,6#

main58905-24260-C6iGSE31202009-202110

BLACK,TRIM6#

main58905-24260-C8iASE30,AVE3#,GSE31202111-202209

BLACK/RED,TRIM9#

main58905-24260-D1iGSE31202009-202110

RED,TRIM33,7#

main58905-24260-D1iGSE31202009-202110

RED,TRIM3#,7#

main58905-24260-D1iASE30,AVE3#,GSE31202111

RED,TRIM7#

main58905-24260-D2iASE30,AVE3#202111

DK.ROSE,TRIM3#

main58905-24260-D2iASE30,AVE3#202009-202110

DK.ROSE,TRIM31,32,33

main58905-24260-E1iASE30,AVE3#202009-202110

OCHER,TRIM4#

main58905-53110-C0iASE30,AVE3#,GSE31201702-201703

BLACK/LT.GRAY,TRIM1#,2#,4#,5#,9#

main58905-53110-C1iASE30,AVE3#,GSE31201702-201703

BLACK/DK.ROSE,TRIM3#

main58905-53110-C2iASE30,AVE3#,GSE3#201508-201702

TRIM3#

main58905-53110-C2iAVE30,GSE3#201304-201508

BLACK/DK.ROSE,TRIM30,31

main58905-53110-C3iAVE30,GSE3#201304-201508

BLACK/LT.GRAY,TRIM0#,2#,5#

main58905-53110-C3iASE30,AVE3#,GSE31201610-201702

TRIM1#,2#,4#,9#

main58905-53110-C3iASE30,AVE3#,GSE3#201508-201610

TRIM0#,1#,2#,5#

main58905-53110-C4iAVE30,GSE3#201304-201508

BLACK/RED,TRIM32

main58905-53230-C0iASE30,AVE3#,GSE31201703-202009

BLACK/DK.ROSE,TRIM3#

main58905-53230-C0iASE30,AVE3#,GSE31201809-201909

BLACK/DK.ROSE,TRIM32,34,35

main58905-53230-C1iASE30,AVE3#,GSE31201703-202009

BLACK/LT.GRAY,TRIM1#,2#,4#,9#

main58905-53230-C2iASE30,AVE3#,GSE31201809-201909

BLACK/RED,TRIM36

main58905-53230-C3iASE30,AVE3#,GSE31201909-202009

BLACK/SMOKY BLUE,TRIM8#

58920AARMREST ASSY, REAR CONSOLE

main58920-24150-C6iASE30,AVE3#202209-202411

main58920-24150-C6iGSE31202209-202411

BLACK/LT.GRAY,TRIM61,63,67

main58920-24150-C6iGSE31202209-202411

main58920-24150-C6iASE30,AVE3#202411

main58920-24150-C6iASE30,AVE3#202411

main58920-24150-C6iASE30,AVE3#202411

BLACK/LT.GRAY,TRIM6#

main58920-24150-C7iUSE30202209-202411

BLACK/BROWN,TRIM65

main58920-24170-A0iASE30,AVE3#,GSE31202009-202110

WHITE,TRIM0#

main58920-24170-C6iGSE31202009-202110

BLACK,TRIM2#,6#

main58920-24170-C6iASE30,AVE3#202009-202110

BLACK,TRIM6#

main58920-24170-C8iASE30,AVE3#,GSE31202111-202209

BLACK/RED,TRIM9#

main58920-24170-D1iASE30,AVE3#,GSE31202009-202110

RED,TRIM7#

main58920-24170-D2iASE30,AVE3#202009-202110

DK.ROSE,TRIM3#

main58920-24170-E1iASE30,AVE3#202009-202110

OCHER,TRIM4#

main58920-53020-C2iAVE30,GSE3#201304-201610

BLACK/DK.ROSE,TRIM3#

main58920-53020-C2iAVE30,GSE3#201410-201508

BLACK/DK.ROSE,TRIM30,31

main58920-53020-C3iASE30,AVE3#,GSE3#201304-201610

BLACK/LT.GRAY,TRIM0#,1#,2#,5#

main58920-53020-C4iAVE30,GSE3#201410-201508

BLACK/RED,TRIM32

main58920-53040-C0iASE30,AVE3#,GSE31201610-201702

BLACK/DK.ROSE,TRIM3#

main58920-53040-C1iASE30,AVE3#,GSE31201610-201702

BLACK/LT.GRAY,TRIM1#,2#,4#,9#

main58920-53041-C2iASE30,AVE3#,GSE31201809-201909

BLACK/DK.ROSE,TRIM32,34,35

main58920-53041-C2iASE30,AVE3#,GSE31201703-202009

BLACK/DK.ROSE,TRIM3#

main58920-53041-C3iASE30,AVE3#,GSE31201703-202009

BLACK/LT.GRAY,TRIM1#,2#,4#,9#

main58920-53041-C4iASE30,AVE3#,GSE31201809-201909

BLACK/RED,TRIM36

main58920-53041-C5iASE30,AVE3#,GSE31201909-202009

BLACK/SMOKY BLUE,TRIM8#

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iAVE30,GSE3#201304-202009

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

9009900306

main90099-00306

9015950327

main90159-50327

9018305094

main90183-05094

9046710201

main90467-10201

9046710203

main90467-10203

9165160618

main91651-60618

9165160818

main91651-60818

9167380616

main91673-80616

26 parts on this diagram · 3 diagrams in section
