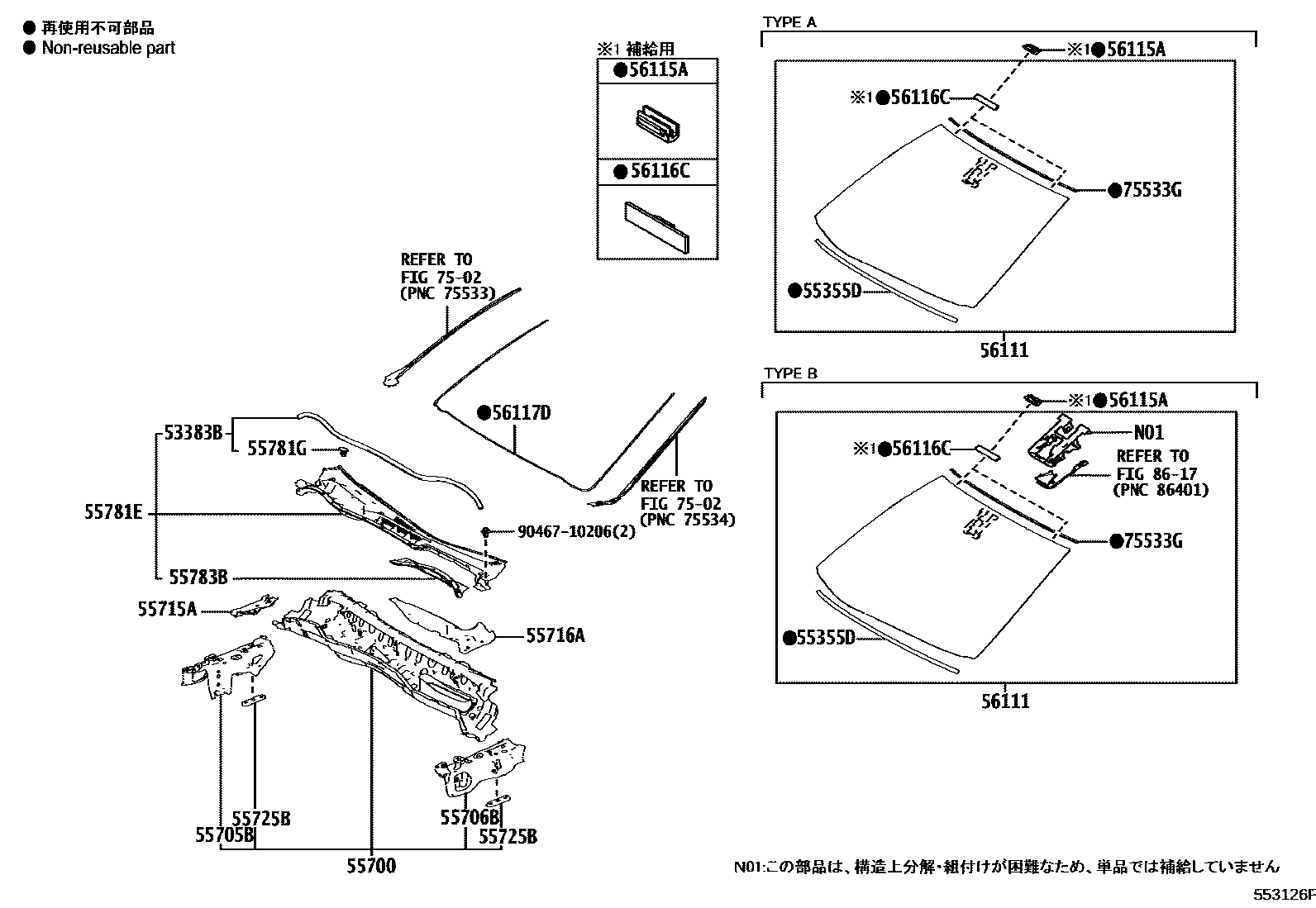

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-53070iASE30,AVE3#,GSE3#201508-201610

55355DCUSHION, INSTRUMENT PANEL, NO.1

main55355-53090iASE30,AVE3#,GSE31201610-202009

55700PANEL ASSY, FRONT

main55700-53120iAVE30,GSE3#201304-201508

main55700-53140iASE30,AVE3#,GSE31202009-202110

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-53020iASE30,AVE3#,GSE3#201508-201610

main55705-53030iASE30,AVE3#,GSE31,USE30202111

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-53020iAVE30,GSE3#201304-201508

main55706-53030iASE30,AVE3#,GSE31202009-202110

55715ABRACE, COWL TOP TO APRON, RH

main55715-53060iASE30,AVE3#,GSE3#201508-201610

main55715-53080iASE30,AVE3#,GSE31202009-202110

55716ABRACE, COWL TOP TO APRON, LH

main55716-53060iASE30,AVE3#,GSE31201610-202009

main55716-53080iASE30,AVE3#,GSE31202009-202110

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-51020×2iASE30,AVE3#,GSE31201610-202009

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-53110supersedes 55708-53100iAVE30; GSE3#201304-201508

main55708-53111iASE30,GSE31; AVE3#201612-202009

main55708-53170supersedes 55708-53160iASE30,GSE31,USE30; AVE3#202111

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-08108×6iASE30,AVE3#,GSE31202009-202110

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-53040iASE30,AVE3#,GSE3#201508-201610

main55783-53070iASE30,AVE3#,GSE31,USE30202111

56111GLASS, WINDSHIELD

main56101-53750supersedes 56101-53740iASE30,AVE3#,GSE3#201508-201610

main56101-53760supersedes 56101-53740iAVE30,GSE3#201304-201508

main56101-53770supersedes 56101-53740iAVE30,GSE3#201304-201508

main56101-53A30supersedes 56101-53A20iASE30,AVE3#,GSE31,USE30202111-202310

main56101-53A60supersedes 56101-53A11iASE30,AVE3#,GSE31201610-201611

main56101-53A61supersedes 56101-53A11iASE30,AVE3#,GSE31201610-202009

main56101-53D70supersedes 56101-53D60iAVE35,GSE31202310-202504

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iASE30,AVE3#,GSE31201610-202009

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iASE30,AVE3#,GSE31202009-202110

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-64010iASE30,AVE3#,GSE3#201508-201610

7502FRONT MOULDING

→ Go to FIG 75-02

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-53050iAVE30,GSE3#201304-201508

8617PRE-COLLISION SYSTEM

→ Go to FIG 86-17

9046710206

main90467-10206

19 parts on this diagram · 1 diagram in section
