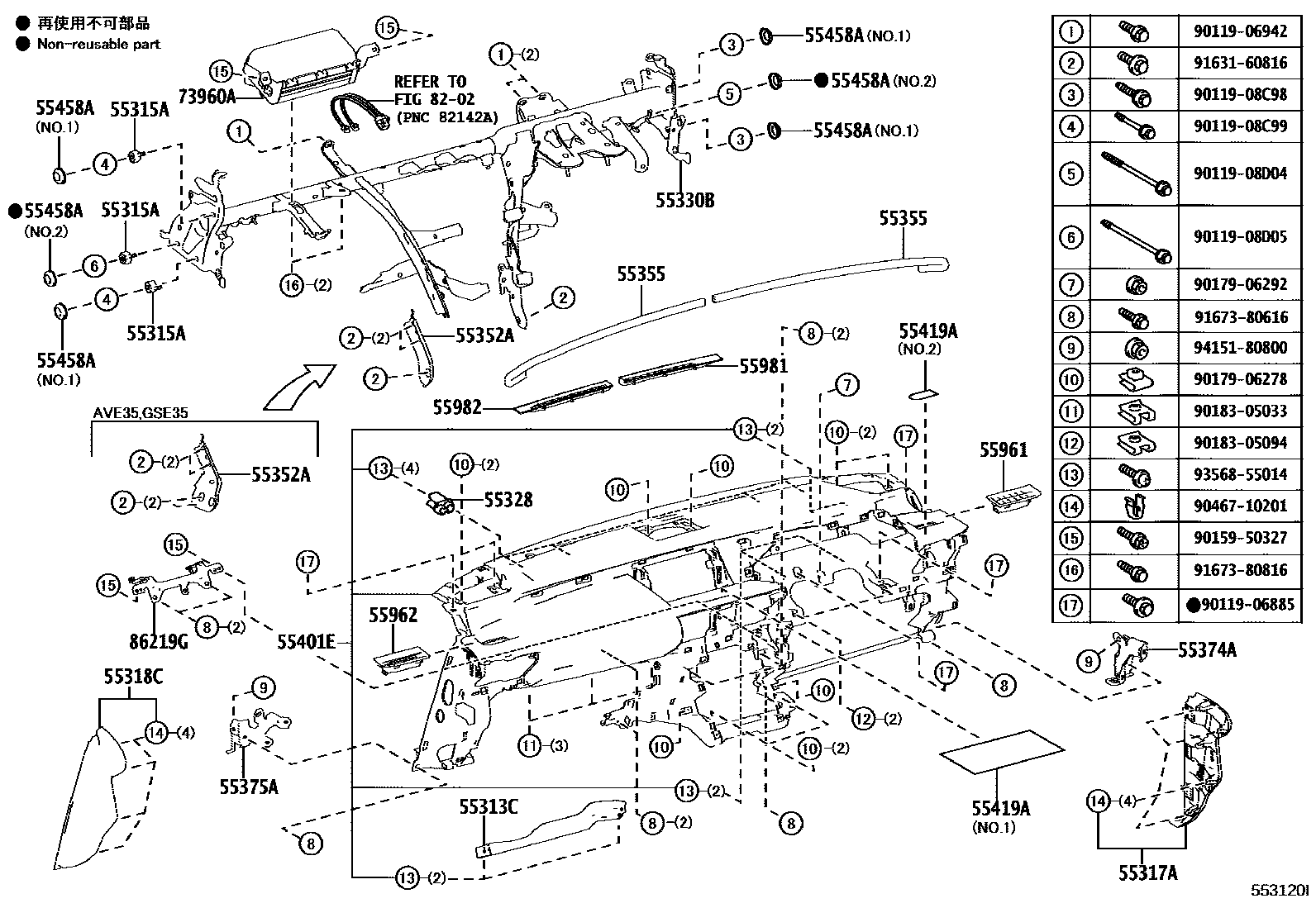

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1����� 0006 1����� 0007 1���������� 0008 1����������

55313CBRACKET, GLOVE COMPARTMENT

main55313-53040iAVE30,GSE3#201304-201508

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53040×3iASE30,AVE3#,GSE31202009-202110

55317APANEL, INSTRUMENT SIDE, RH

main55317-53100-C0iASE30,AVE3#,GSE31201610-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#

main55317-53140-C1iASE30,AVE3#202111

BLACK,TRIM0#,2#,3#,4#,6#,9#

main55317-53140-D0iASE30,AVE3#202009-202110

RED,TRIM33,7#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-53070-C0iAVE30,GSE3#201304-201508

BLACK,TRIM0#,1#,2#,3#,5#

main55318-53110-C1iASE30,AVE3#202009-202110

BLACK,TRIM0#,6#

main55318-53110-D0iASE30,AVE3#202009-202110

RED,TRIM33,7#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-60090×4iASE30,AVE3#,GSE31202009-202110

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53350supersedes 55330-53340iASE30,AVE3#,GSE3#201508-201610

main55330-53390iASE30,AVE3#,GSE31201610-201911

main55330-53391iASE30,AVE3#,GSE31201912-202009

main55330-53420iASE30,AVE3#,GSE31202009-202110

55352ABRACE, INSTRUMENT PANEL TO FLOOR, NO.2

main55352-53070iASE30,AVE30,GSE31202009-202110

main55352-53080iAVE35201610-202009

main55352-53110iAVE35202305

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30100×2iASE30,AVE3#,GSE31,USE30202111

55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH

main55375-53060iAVE30,GSE3#201304-201508

55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH

main55374-53030iAVE30,GSE3#201304-201508

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-53902-C0iAVE30,GSE3#201304-201508

BLACK,TRIM0#,1#,2#,3#,5#

main55401-53905-C0iASE30,AVE3#,GSE31201912-202009

BLACK,TRIM1#,2#,3#,4#,8#,9#

main55401-53907-C1iASE30,AVE3#,GSE31202111

BLACK/RED(F SPORT),TRIM7#,9#

main55401-53907-C2iASE30,AVE3#202009-202110

BLACK/LT.GRAY,TRIM0#,2#,6#

main55401-53907-C3iASE30,AVE3#202009-202110

BLACK/ROYAL BROWN,TRIM4#

main55401-53907-C4iASE30,AVE3#202111

BLACK/RED,TRIM3#

main55401-53907-C6iUSE30202209-202411

BLACK/BROWN,TRIM65

55419ACUSHION, INSTRUMENT CLUSTER FINISH PANEL

main55419-53030iASE30,AVE3#,GSE3#201508-201610

main55419-53040iASE30,AVE3#,GSE31201610-202009

main55419-53090iASE30,AVE3#,GSE31,USE30202111

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-22110×4iASE30,AVE3#,GSE31,USE30202111

main55458-53011×2iASE30,AVE3#,GSE31202009-202110

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-53020-C0iAVE30,GSE3#201304-201508

main55961-53040-C1iUSE30202209

main55961-53040-E0iASE30,AVE3#202009-202110

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-53040-C0iASE30,AVE3#,GSE31201610-201912

main55962-53060-C1iASE30,AVE3#202111

main55962-53060-E0iASE30,AVE3#202111

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-53020-C0iASE30,AVE3#,GSE31201912-202009

BLACK,TRIM1#,2#,3#,4#,8#,9#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-53010-C0iAVE30,GSE3#201304-201508

BLACK,TRIM0#,1#,2#,3#,5#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-53050iAVE30,GSE3#201304-201508

main73960-53051iASE30,AVE3#,GSE31201805-202009

sub73960-53052

main73960-53080iASE30,AVE3#,GSE31202009-202110

main73960-53081iASE30,AVE3#,GSE31,USE30202208

8202

86219GBRACKET, SPEAKER

main86219-53010iASE30,AVE3#,GSE31,USE30202111

9011906885

main90119-06885

9011906942

main90119-06942

9011908C98

main90119-08C98

9011908C99

main90119-08C99

9011908D04

main90119-08D04

9011908D05

main90119-08D05

9015950327

main90159-50327

9017906278

main90179-06278

9017906292

main90179-06292

9018305033

main90183-05033

9018305094

main90183-05094

9046710201

main90467-10201

9163160816

main91631-60816

9167380616

main91673-80616

9167380816

main91673-80816

9356855014

main93568-55014

9415180800

main94151-80800

37 parts on this diagram · 8 diagrams in section
