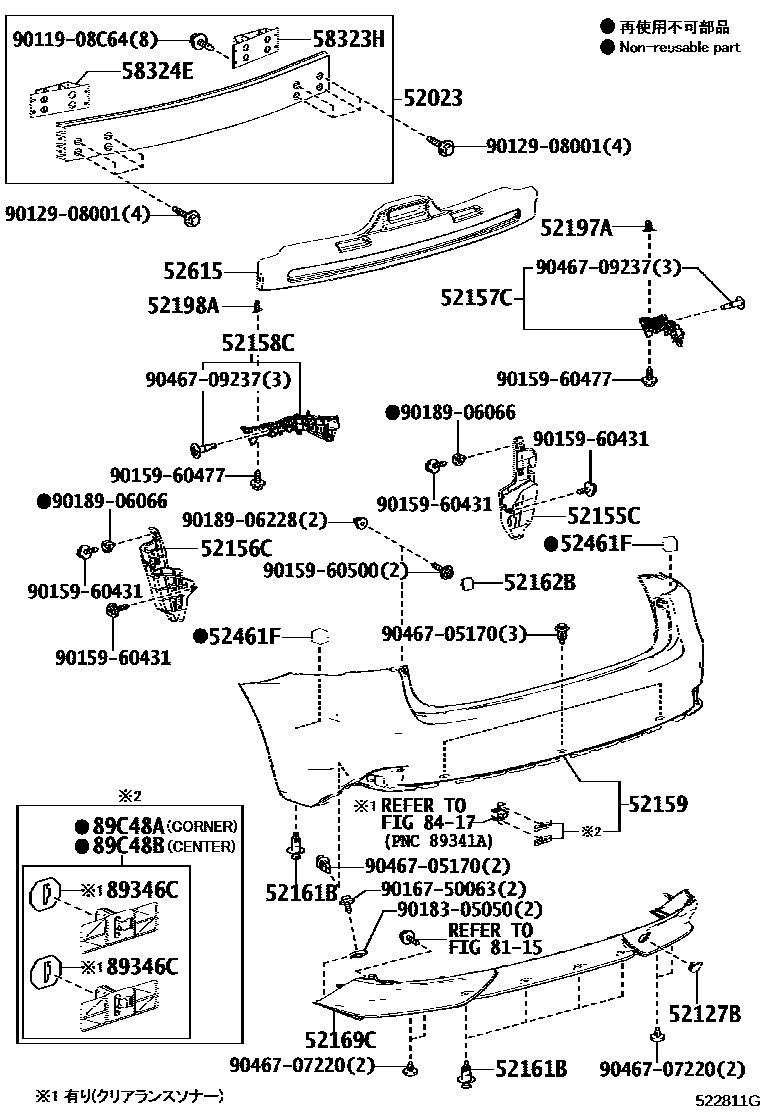

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-53090iAVE30201304-201508

main52023-53091iAVE3#202111

main52023-53100iGSE3#201304-201508

main52023-53111iUSE30202209

52127BCOVER, REAR BUMPER HOLE, RH

main52161-53050iGSE3#201304-201508

main52161-53060iAVE3#201508-201610

main52161-53080iAVE3#201610-202009

main52161-53110supersedes 52161-53100iASE30,AVE3#; GSE31202009-202110

main52161-53120iUSE30202209

main52161-53090supersedes 52161-53070iASE30,GSE31201610-202009

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-53070iASE30,AVE3#,GSE31201610-202009

main52155-53080iASE30,AVE3#,GSE31202009-202110

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-53040iASE30,AVE3#,GSE3#201508-201610

main52156-53050iASE30,AVE3#,GSE31202009-202110

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-53070iAVE30,GSE3#201304-201508

main52157-53080iASE30,AVE3#,GSE31202009-202110

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-53070iAVE30,GSE3#201304-201508

main52158-53080iASE30,AVE3#,GSE31202009-202110

52159COVER, REAR BUMPER

main52159-53949-J3iAVE3#201610-201909

DEEP BLUE MC.,8X5

main52159-53953-A0iASE30,AVE3#; GSE31202009-202011

main52159-53953-A1iASE30,AVE3#202009-202011

SONIC QUARTZ,085

main52159-53953-B0iASE30,AVE3#,GSE31202009-202011

SONIC TITANIUM,1J7

main52159-53953-B1iASE30,AVE3#,GSE31202009-202011

SONIC CHROME,1L1

main52159-53953-B2iASE30,AVE3#,GSE31202009-202011

SONIC IRIDIUM,1L2

main52159-53953-C0iASE30,AVE3#,GSE31202009-202011

GRAPHITE BLACK GF.,223

main52159-53953-D0iASE30,AVE3#202009-202011

RED MC.CS.,3R1

main52159-53953-D1iASE30,AVE3#; GSE31202009-202011

main52159-53953-J0iASE30,AVE3#; GSE31202009-202011

main52159-53953-J1iASE30,AVE3#,GSE31202009-202011

CELESTIAL BLUE GF.,8Y6

main52159-53956-A0iASE30,AVE3#; GSE31202011-202110

main52159-53956-A1iASE30,AVE3#202011-202110

SONIC QUARTZ,085

main52159-53956-B0iASE30,AVE3#,GSE31202011-202110

SONIC TITANIUM,1J7

main52159-53956-B1iASE30,AVE3#,GSE31202011-202110

SONIC CHROME,1L1

main52159-53956-B2iASE30,AVE3#,GSE31202011-202110

SONIC IRIDIUM,1L2

main52159-53956-C0iASE30,AVE3#,GSE31202011-202110

GRAPHITE BLACK GF.,223

main52159-53956-D0iASE30,AVE3#202011-202110

RED MC.CS.,3R1

main52159-53956-D1iASE30,AVE3#; GSE31202011-202110

main52159-53956-J0iASE30,AVE3#; GSE31202011-202110

main52159-53956-J1iASE30,AVE3#,GSE31202011-202110

CELESTIAL BLUE GF.,8Y6

main52159-53957-A0iASE30,AVE3#; GSE31202111

main52159-53957-A1iASE30,AVE3#202111

SONIC QUARTZ,085 ,3T5

main52159-53957-B0iASE30,AVE3#; GSE31202111

SONIC TITANIUM,1J7; SONIC TITANIUM,1J7 ,8X1

main52159-53957-B1iASE30,AVE3#,GSE31202111

SONIC CHROME,1L1

main52159-53957-B2iUSE30202209

SONIC IRIDIUM,1L2 ,8X1

main52159-53957-B3iASE30,AVE3#; GSE31; USE30202209

main52159-53957-C0iASE30,AVE3#,GSE31202111

GRAPHITE BLACK GF.,223

main52159-53957-D0iASE30,AVE3#202111

RED MC.CS.,3R1

main52159-53957-D1iUSE30202209

RADIANT RED CONTRAST LAYE,1L2 ,3T5

main52159-53957-J0iASE30,AVE3#; GSE31202111

main52159-53957-J1iASE30,AVE3#,GSE31,USE30202111

CELESTIAL BLUE GF.,8Y6

main52159-53942-A0supersedes 52159-53220-A0iAVE30,GSE3#201304-201508

main52159-53942-A1supersedes 52159-53220-A1iASE30,AVE3#,GSE3#201508-201610

main52159-53942-A2supersedes 52159-53220-A2iASE30,AVE3#,GSE3#201508-201610

main52159-53942-B0supersedes 52159-53220-B0iAVE30,GSE3#201304-201508

main52159-53942-B1supersedes 52159-53220-B1iASE30,AVE3#,GSE3#201508-201610

main52159-53942-B2supersedes 52159-53220-B2iAVE30,GSE3#201304-201508

main52159-53942-C0supersedes 52159-53220-C0iAVE30,GSE3#201304-201508

main52159-53942-C1supersedes 52159-53220-C1iAVE30,GSE3#201304-201508

main52159-53942-D0supersedes 52159-53220-D0iASE30,AVE3#,GSE3#201508-201610

main52159-53942-D1supersedes 52159-53220-D1iASE30,AVE3#,GSE3#201508-201610

main52159-53942-J0supersedes 52159-53220-J0iAVE30,GSE3#201304-201508

main52159-53942-J1supersedes 52159-53220-J1iAVE30,GSE3#201304-201508

main52159-53942-J2supersedes 52159-53220-J2iASE30,AVE3#,GSE3#201508-201610

main52159-53948-A1supersedes 52159-53949-A1iASE30,GSE31; AVE3#201610-202009

main52159-53948-A2supersedes 52159-53949-A2iASE30,GSE31; AVE3#201610-202009

main52159-53948-B0supersedes 52159-53949-B0iASE30,GSE31; AVE3#201610-202009

main52159-53948-B1supersedes 52159-53949-B1iASE30,GSE31; AVE3#201610-201809

main52159-53948-B2supersedes 52159-53949-B2iASE30,GSE31; AVE3#201610-202009

main52159-53948-B3supersedes 52159-53949-B3iASE30,GSE31; AVE3#201809-202009

main52159-53948-B4supersedes 52159-53949-B4iASE30,GSE31; AVE3#201909-202009

main52159-53948-C0supersedes 52159-53949-C0iASE30,GSE31; AVE3#201610-202009

main52159-53948-C2supersedes 52159-53949-C2iASE30,GSE31; AVE3#201610-202009

main52159-53948-D0supersedes 52159-53949-D0iASE30,GSE31; AVE3#201610-202009

main52159-53948-D1supersedes 52159-53949-D1iASE30,GSE31; AVE3#201610-202009

main52159-53948-D2iASE30,GSE31; AVE3#201809-202009

main52159-53948-J2supersedes 52159-53949-J2iASE30,GSE31; AVE3#201610-202009

main52159-53948-J3iASE30,GSE31; AVE3#201610-201909

main52159-53949-A1iASE30,GSE31; AVE3#201610-202009

main52159-53949-B0iASE30,GSE31; AVE3#201610-202009

main52159-53949-B1iASE30,GSE31; AVE3#201610-201809

main52159-53949-B2iASE30,GSE31; AVE3#201610-202009

main52159-53949-B3iASE30,GSE31; AVE3#201809-202009

main52159-53949-B4iASE30,GSE31; AVE3#201909-202009

main52159-53949-C0iASE30,GSE31; AVE3#201610-202009

main52159-53949-C2iASE30,GSE31; AVE3#201610-202009

main52159-53949-D0iASE30,GSE31201705-202009

main52159-53949-D1iASE30,GSE31; AVE3#201610-202009

main52159-53949-D2iASE30,GSE31; AVE3#201809-202009

main52159-53949-J2iASE30,GSE31; AVE3#201610-202009

52161BPIECE, REAR BUMPER

main52161-16010×6iASE30,AVE3#,GSE31201610-202009

52162BPLATE, REAR BUMPER, NO.1

main52162-53060-A0×2iAVE30,GSE3#201304-201508

WHITE PEARL CS.,077

main52162-53060-A1×2iASE30,GSE31; AVE3#201610-202009

main52162-53060-A2×2iASE30,AVE3#,GSE3#201508-201610

SONIC QUARTZ,085

main52162-53060-B0×2iAVE3#201610-202009

MERCURY GRAY MC.,1H9

main52162-53060-B1×2iAVE3#201610-201809

PLATINUM SILVER ME.,1J4

main52162-53060-B2×2iAVE3#201610-202009

SONIC TITANIUM,1J7

main52162-53060-B3×2iASE30,GSE31; AVE3#201809-202009

main52162-53060-B4×2iASE30,GSE31; AVE3#201909-202009

main52162-53060-C0×2iAVE30,GSE3#201304-201508

BLACK,212

main52162-53060-C1×2iASE30,AVE3#,GSE3#201508-201610

STARLIGHT BLACK GF.,217

main52162-53060-C2×2iASE30,GSE31; AVE3#201610-202009

main52162-53060-D0×2iASE30,GSE31; AVE3#201610-202009

main52162-53060-D1×2iAVE3#201610-202009

MADDER RED,3T2

main52162-53060-D2×2iASE30,GSE31; AVE3#201809-202009

main52162-53060-J0×2iAVE30,GSE3#201304-201508

BLUE ME.,8U1

main52162-53060-J1×2iAVE30,GSE3#201304-201508

LAPIS LAZULI MC.,8V3

main52162-53060-J2×2iASE30,GSE31; AVE3#201610-202009

main52162-53060-J3×2iASE30,GSE31; AVE3#201610-201909

52169CCOVER, REAR BUMPER, LOWER

main52169-53010iGSE3#201304-201508

main52169-53020iAVE30201304-201508

main52169-53030iASE30,GSE31201610-201705

main52169-53040iAVE3#201610-202009

main52169-53060iASE30,GSE31201705-202009

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-53040iAVE30,GSE3#201304-201508

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-53020iAVE30,GSE3#201304-201508

52461FPAD, REAR BUMPER

main52462-53030×2iAVE30,GSE3#201304-201508

52615ABSORBER, REAR BUMPER ENERGY

main52615-53130iAVE3#201610-202009

main52615-53150iGSE3#201304-201508

main52615-53160iAVE3#202111

main52615-53170iASE30,GSE31202009-202110

main52615-53181iUSE30202209

58323HREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH

main58323-53070iAVE30201304-201508

main58323-53071iAVE3#202109-202110

58324EREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH

main58324-53070iAVE30201304-201508

main58324-53071iAVE3#202109-202110

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89346CADJUSTER, ULTRASONIC SENSOR

main89346-33010×8iAVE30,GSE3#201304-201508

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-50130×2iASE30,AVE3#,GSE31202009-202110

main89348-33110×2iASE30,AVE3#,GSE3#201508-201610

main89348-78020×2iASE30,AVE3#,GSE31201610-202009

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-50130×2iASE30,AVE3#,GSE31,USE30202111

main89348-33110×2iAVE30,GSE3#201304-201508

main89348-78020×2iASE30,AVE3#,GSE31201610-202009

9011908C64

main90119-08C64

9012908001

main90129-08001

9015960431

main90159-60431

9015960477

main90159-60477

9015960500

main90159-60500

9016750063

main90167-50063

9018305050

main90183-05050

9018906066

main90189-06066

9018906228

main90189-06228

9046705170

main90467-05170

9046707220

main90467-07220

9046709237

main90467-09237

33 parts on this diagram · 7 diagrams in section
