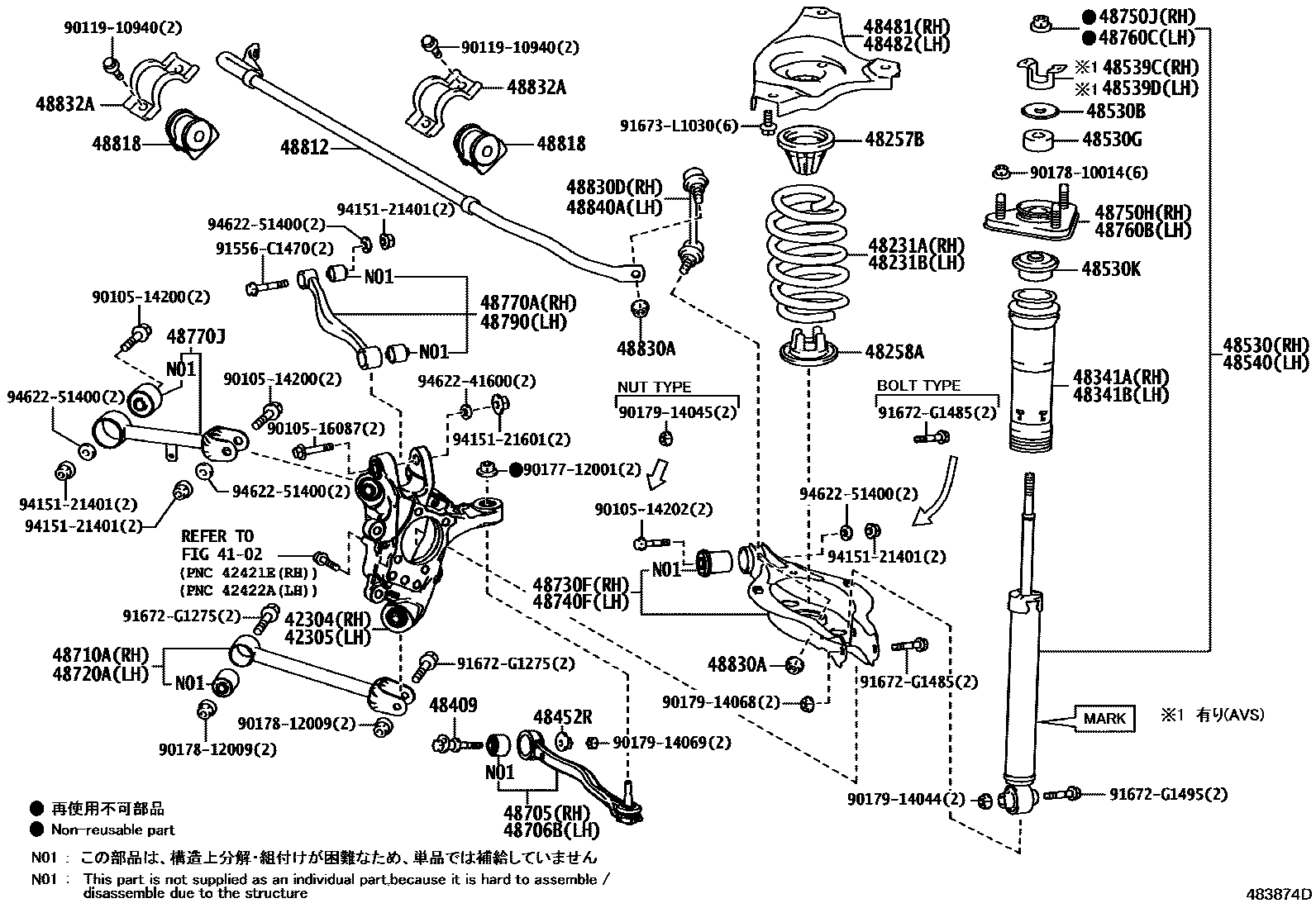

REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1��(������������) 0004 1��(������������)

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-30130iASE30,AVE3#,GSE31202009-202110

main42304-53020iASE30,AVE3#,GSE3#201508-201610

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-30130iASE30,AVE3#,GSE31202009-202110

main42305-53020iASE30,AVE3#,GSE3#201508-201610

48231ASPRING, COIL, REAR RH

main48231-53300supersedes 48231-53320iASE30,GSE31201610-201901

main48231-53301iASE30,GSE31201902-202009

main48231-53420iASE30,GSE31202111

main48231-53430iAVE30202009-202110

main48231-53450iAVE35202111

main48231-53470iUSE30202209

main48231-53310supersedes 48231-53300iGSE31201304-201508

main48231-53311supersedes 48231-53300iGSE31201902-202009

main48231-53330supersedes 48231-53340iAVE30201304-201508

main48231-53400supersedes 48231-53411iAVE3#201610-201901

main48231-53401supersedes 48231-53411iAVE3#201902-202009

48231BSPRING, COIL, REAR LH

main48231-53300supersedes 48231-53320iASE30,GSE31201610-201901

main48231-53301iASE30,GSE31201902-202009

main48231-53420iASE30,GSE31202009-202110

main48231-53430iAVE30202111

main48231-53450iAVE35202009-202110

main48231-53470iUSE30202209

main48231-53310iGSE31201809-201901

main48231-53311supersedes 48231-53300iGSE31201902-202009

main48231-53330supersedes 48231-53340iAVE30201304-201508

main48231-53400supersedes 48231-53411iAVE3#201610-201901

main48231-53401supersedes 48231-53411iAVE3#201902-202009

48257BINSULATOR, REAR COIL SPRING, UPPER

main48257-30080×2iAVE30,GSE3#201304-201508

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-30050×2iAVE30,GSE3#201304-201508

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30170iASE30,AVE3#,GSE3#201508-201610

main48341-53060iASE30,AVE30,GSE31202009-202110

main48341-53070iAVE35202009-202110

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30170iASE30,AVE3#,GSE31201610-202009

main48341-53060iASE30,AVE30,GSE31202009-202110

main48341-53070iAVE35202111

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-30031×2iASE30,AVE3#,GSE31202009-202110

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-30051×2iASE30,AVE3#,GSE31202009-202110

48481SEAT, REAR SPRING, UPPER

main48481-30010iASE30,AVE3#,GSE31,USE30202111

48482SEAT, REAR SPRING, UPPER LH

main48482-30030iASE30,AVE3#,GSE31202009-202110

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-80665iASE30,GSE31201508-201610

main48530-80669iAVE30201304-201508

main48530-80A60iASE30202111-202310

main48530-80A62iAVE30202111-202310

main48530-80A63supersedes 48530-80A60iASE30; GSE31202009-202110

main48530-80A67iAVE35202111-202310

main48530-80B01iUSE30202209

main48530-80B88iASE30202310

main48530-80B89iAVE30202310

main48530-80B92iAVE35202310

main48530-80586iASE30,AVE3#,GSE31201610-201801

main48530-80667supersedes 48530-80837iASE30,AVE30,GSE31201508-201610

main48530-80671iGSE31201304-201403

main48530-80674supersedes 48530-80675iAVE35,GSE35201508-201610

main48530-80839iASE30,AVE3#,GSE31201801-202009

main48530-80A64supersedes 48530-80A62iAVE30202111

main48530-80A69supersedes 48530-80A67iAVE35202009-202110

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iAVE30,GSE3#201304-201508

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01101×2iASE30,AVE3#,GSE31201610-202009

main90948-01104×2iASE30,AVE3#,GSE31,USE30202111

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main48752-53010×2iASE30,AVE3#,GSE31,USE30202111

main90948-01102×2iASE30,AVE3#,GSE31201610-202009

48539CBRACKET, ACTUATOR SUPPORT, REAR RH

main48539-30030iASE30; AVE3#; GSE31202009-202110

48539DBRACKET, ACTUATOR SUPPORT, REAR LH

main48539-30030iASE30; AVE3#; GSE31202009-202110

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-80665iASE30,GSE31201508-201610

main48530-80669iAVE30201304-201508

main48530-80A60iASE30202111-202310

main48530-80A62iAVE30202111-202310

main48530-80A63supersedes 48530-80A60iASE30; GSE31202111

main48530-80A67iAVE35202111-202310

main48530-80B01iUSE30202209

main48530-80B88iASE30202310

main48530-80B89iAVE30202310

main48530-80B92iAVE35202310

main48530-80586iASE30,AVE3#,GSE31201610-201801

main48530-80667iAVE30,GSE30; AVE30,GSE30,31201304-201508

main48530-80671iGSE31201304-201403

main48530-80674supersedes 48530-80675iAVE35,GSE35201508-201610

main48530-80839iASE30,AVE3#,GSE31201801-202009

main48530-80A64supersedes 48530-80A62iAVE30202009-202110

main48530-80A69supersedes 48530-80A67iAVE35202009-202110

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-30120iAVE30,GSE3#; GSE31201304-201508

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-30050iAVE30,GSE3#; GSE31201304-201508

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-30240iAVE30,GSE3#201304-201508

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-30240iAVE30,GSE3#201304-201508

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-30140iAVE30,GSE3#201304-201508

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-30140iAVE30,GSE3#201304-201508

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-30200iAVE30,GSE3#201304-201508

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-12127iAVE30,GSE3#201304-201508

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-30200iAVE30,GSE3#201304-201508

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-12127iASE30,AVE3#,GSE31201610-202009

48770AARM ASSY, UPPER CONTROL, REAR RH

main48790-30130iASE30,AVE3#,GSE3#201508-201610

main48790-53060iASE30,AVE3#,GSE31202009-202110

48770JARM ASSY, UPPER CONTROL, REAR NO.1

main48770-30120×2iAVE30,GSE3#201304-201405

main48770-30150×2iAVE30,GSE3#201405-201508

main48770-30151×2iASE30,AVE3#,GSE31201610-202009

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-30140iAVE30,GSE3#201304-201508

main48790-53050iASE30,AVE3#,GSE31202009-202110

48812BAR, STABILIZER, REAR

main48812-24152iASE30,AVE30,GSE31201801-202009

main48812-53050iGSE30,31201304-201508

main48812-53120iAVE3#,GSE35201508-201610

main48812-53122iAVE35202111

main48812-53150supersedes 48812-53140iASE30; GSE31202009-202110

main48812-53140supersedes 48812-53110iASE30; AVE30202009-202110

48818BUSH, STABILIZER, REAR

main48818-24040×2iASE30,AVE30,GSE31201801-202009

main48818-24050×2iAVE35202009-202110

main48818-53080×2iASE30,GSE31201508-201610

main48818-53090×2supersedes 48818-24040iASE30,GSE31; AVE30202009-202110

main48818-53100×2iAVE3#,GSE35201508-201610

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12151×4iASE30,AVE3#,GSE31201610-202009

48830DLINK ASSY, REAR STABILIZER, RH

main48830-30100iAVE30,GSE3#201304-201508

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-30070×2iASE30,AVE3#,GSE31201610-202009

48840ALINK ASSY, REAR STABILIZER, LH

main48840-30030iASE30,AVE3#,GSE3#201508-201610

9010514200

main90105-14200

9010514202

main90105-14202

9010516087

main90105-16087

9011910940

main90119-10940

9017712001

main90177-12001

9017810014

main90178-10014

9017812009

main90178-12009

9017914044

main90179-14044

9017914045

main90179-14045

9017914068

main90179-14068

9017914069

main90179-14069

91556C1470

main91556-C1470

91672G1275

main91672-G1275

91672G1485

main91672-G1485

91672G1495

main91672-G1495

91673L1030

main91673-L1030

9415121401

main94151-21401

9415121601

main94151-21601

9462241600

main94622-41600

9462251400

main94622-51400
