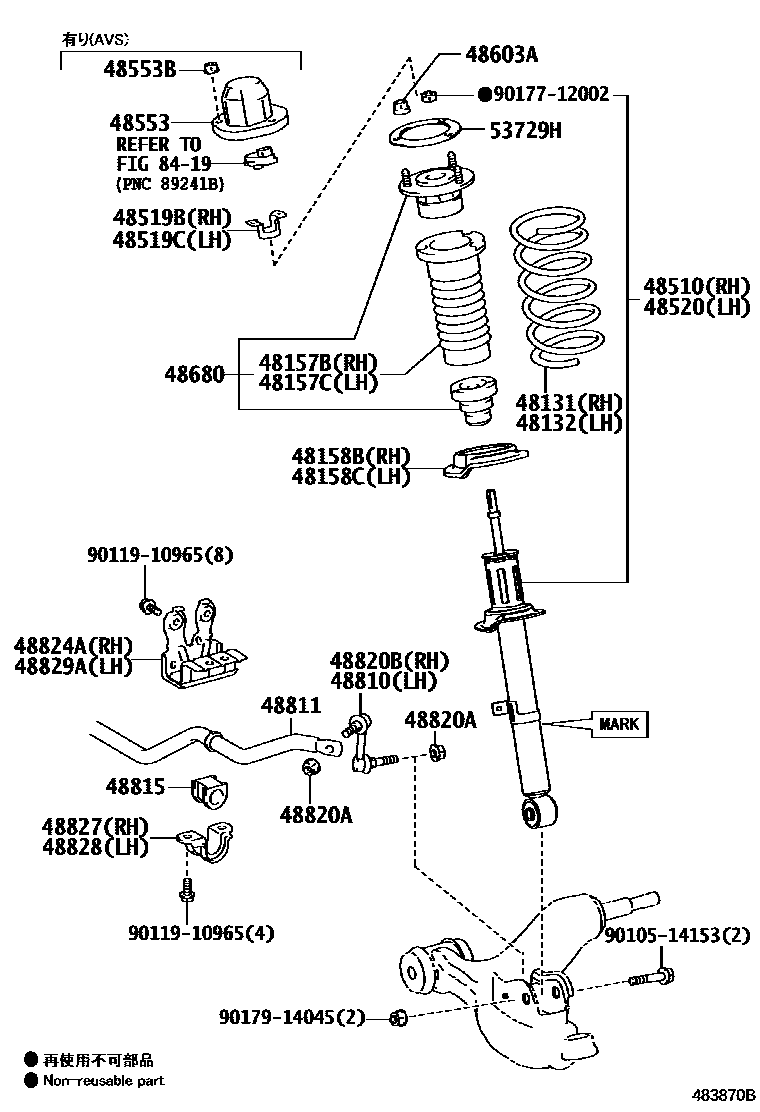

FRONT SPRING & SHOCK ABSORBER
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
sub48510-80617
sub48510-80A19
sub48510-80A26
sub48510-80A10
sub48510-80A13
48519BBRACKET, ACTUATOR SUPPORT, FRONT RH
48519CBRACKET, ACTUATOR SUPPORT, FRONT LH
48520ABSORBER ASSY, SHOCK, FRONT LH
sub48520-59705
sub48520-59806
sub48520-59876
sub48520-80576
sub48520-80579
48553CAP, SHOCK ABSORBER, UPPER
48553BNUT(FOR FRONT SHOCK ABSORBER CAP)
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48680SUPPORT ASSY, FRONT SUSPENSION
48810LINK ASSY, FRONT STABILIZER, LH
48815BUSH, FRONT STABILIZER BAR, NO.1
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48827BRACKET, FRONT STABILIZER, NO.2 RH
48828BRACKET, FRONT STABILIZER, NO.2 LH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
53729HREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
8419
9010514153
main90105-14153
9011910965
main90119-10965
9017712002
main90177-12002
9017914045
main90179-14045
29 parts on this diagram · 3 diagrams in section
