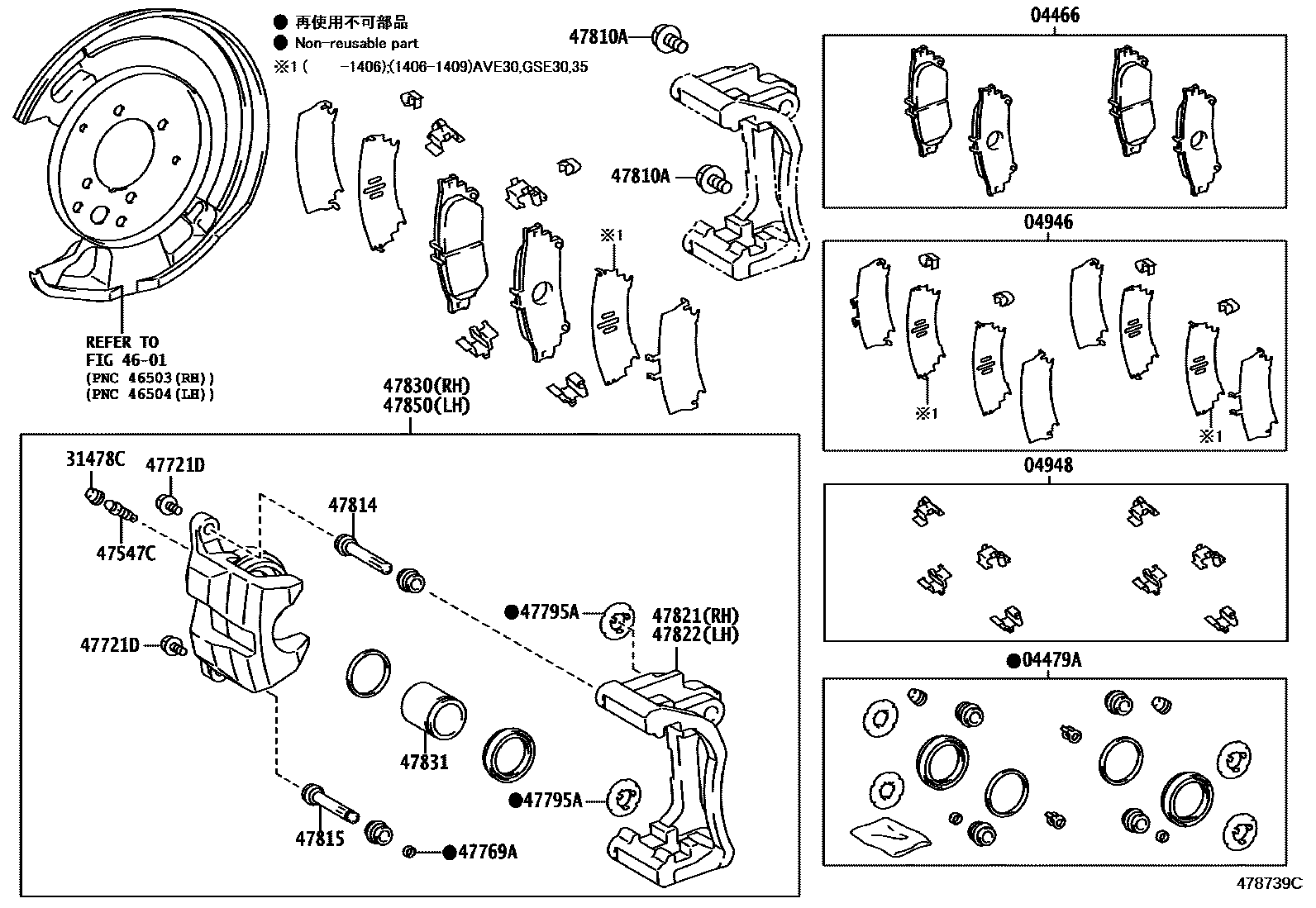

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-24030iUSE30202303

main04466-30280iAVE30,GSE30,35201304-201409

main04466-30281iAVE3#201610-201710

main04466-30282iAVE3#201710-202009

main04466-30310iGSE31201304-201406

main04466-30311iASE30,GSE31201610-201710

main04466-30312iASE30,GSE31201710-202009

main04466-30360iASE30,AVE3#,GSE31202009-202110

main04466-30400iASE30,AVE3#,GSE31202206

main04466-F4020iUSE30202209-202303

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-30580iAVE30,GSE3#201304-201508

main04479-30610iASE30,AVE3#,GSE31,USE30202111

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-30210iGSE31201304-201406

main04946-30230iASE30,AVE3#,GSE3#201508-201610

main04946-30250iASE30,AVE3#,GSE31202009-202110

main04946-30270iUSE30202209

main04946-42060iASE30,AVE3#,GSE31202206

04948FITTING KIT, DISC BRAKE, REAR

main04948-12070iASE30,AVE3#,GSE31202111-202205

main04948-12071iUSE30202209

main04948-30230iAVE30,GSE30,35201304-201310

main04948-30240iASE30,AVE3#,GSE31201610-202009

main04948-52060iASE30,AVE3#,GSE31202206

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iASE30,AVE3#,GSE31,USE30202111

main31478-50020×2iASE30,AVE3#,GSE31201610-202009

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010×2iASE30,AVE3#,GSE3#201508-201610

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA603×4iASE30,AVE3#,GSE31202009-202110

main90105-08164×4iASE30,AVE3#,GSE31201610-202009

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-50010×2iASE30,AVE3#,GSE31202009-202110

main47879-33240×2iASE30,AVE3#,GSE31201610-202009

47795APLATE, REAR DISC BRAKE CALIPER, NO.1

main47895-30350×4iAVE30,GSE3#201304-201508

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12401×4iASE30,AVE3#,GSE31201709-202009

main90119-12416×4iASE30,AVE3#,GSE31201610-201708

47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47814-33240×2iAVE30,GSE3#201304-201508

main47814-78010×2iASE30,AVE3#,GSE31202009-202110

47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47815-33240×2iAVE30,GSE3#201304-201508

main47815-78010×2iASE30,AVE3#,GSE31,USE30202111

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-30350iGSE31201304-201508

main47821-30390iAVE3#201610-202009

main47821-24090supersedes 47821-53120iUSE30202209-202411

main47821-53110supersedes 47821-30460iASE30,AVE3#,GSE31202111

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-30350iGSE31201304-201508

main47822-30390iAVE3#201610-202009

main47822-24090supersedes 47822-53120iUSE30202411

main47822-53110supersedes 47822-30460iASE30,AVE3#,GSE31202009-202110

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-30350iGSE31201304-201508

main47830-30390iAVE30,GSE30,35201304-201409

main47830-30391iAVE3#201610-202009

main47830-24090supersedes 47830-53120iUSE30202411

main47830-53110supersedes 47830-30460iASE30,AVE3#,GSE31202009-202110

47831PISTON, REAR DISC BRAKE

main47831-30310×2iASE30,AVE3#,GSE3#201508-201610

main47831-30460×2iASE30,AVE3#,GSE31202111

main47831-58030×2iASE30,AVE3#,GSE31202009-202110

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-30350iASE30,GSE31201610-202009

main47850-30390iAVE30,GSE30,35201304-201409

main47850-30391iAVE3#201610-202009

main47850-24090supersedes 47850-53120iUSE30202209-202411

main47850-53110supersedes 47850-30460iASE30,AVE3#,GSE31202111

18 parts on this diagram · 2 diagrams in section
