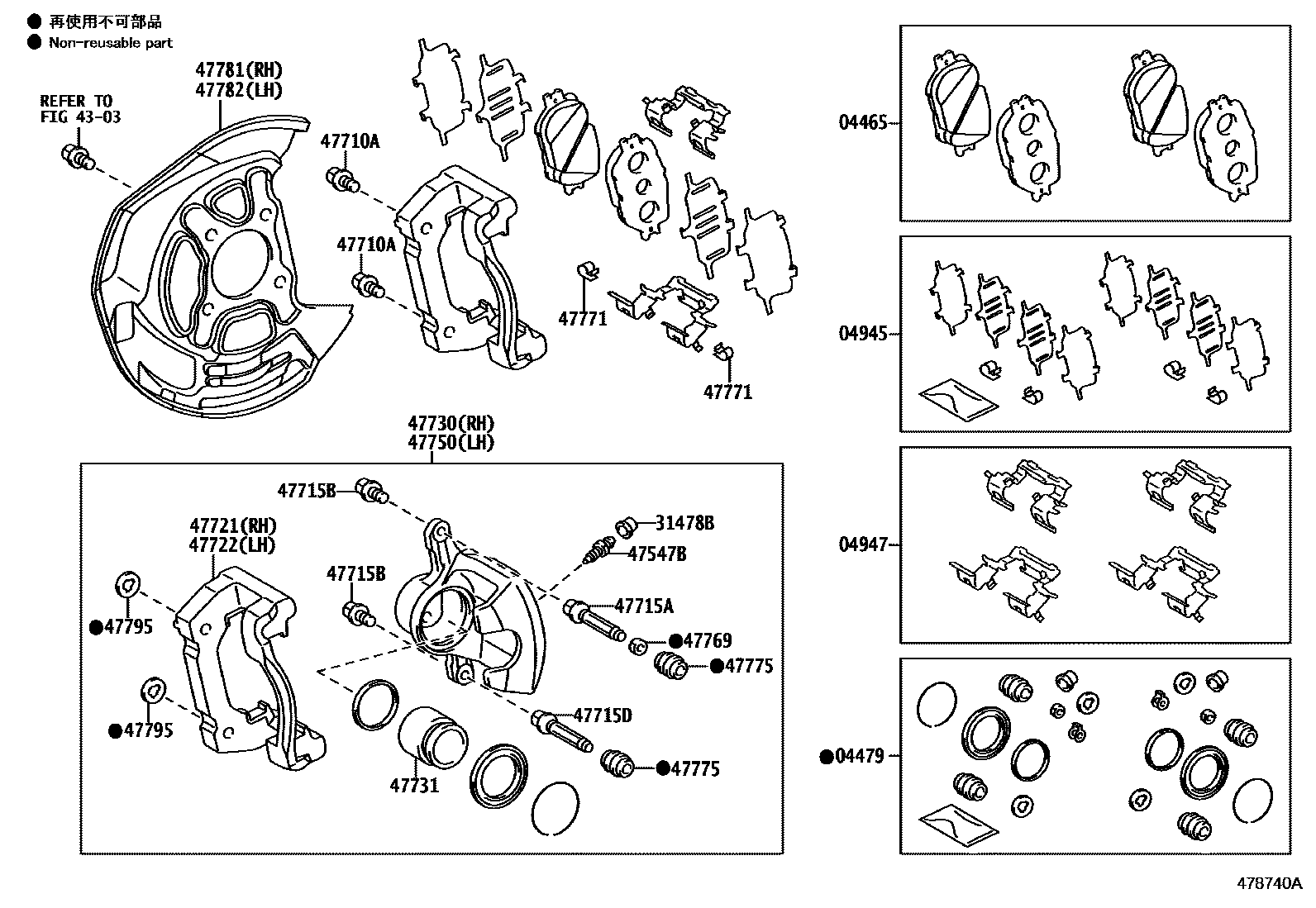

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1F SPORT OR F SPORT X LINE 0003 1 0004 1 0005 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-24050iASE30,AVE3#,GSE31202009-202110

main04465-24060iUSE30202209

main04465-30470iGSE31201304-201406

sub04465-30510

main04465-30480iAVE30,GSE30,35201304-202009

main04465-30510iASE30,GSE31201407-202009

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iASE30,AVE3#,GSE31,USE30202111

main04478-30260iAVE3#201304-202009

main04479-50130iGSE31201304-202110

sub04478-22040

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-24020iASE30,AVE3#,GSE31202009-202110

main04945-30170iAVE3#201304-202009

main04945-30330iGSE31201304-201407

sub04945-30350

main04945-30340iUSE30202209

main04945-30370iASE30,GSE31201407-202009

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iASE30,AVE3#,GSE31,USE30201304-202110

main04947-30140iAVE3#201304-202009

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGSE31201304-202110

main31478-30010iAVE30,GSE30,35201304-202009

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iAVE3#201304-202009

main47547-50010iASE30,GSE31201304-202110

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iAVE30,GSE3#201304-202110

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iAVE30,GSE30,35201304-201905

main47715-50010iAVE3#201905-202009

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iAVE30,GSE30,35201304-202009

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-33050iAVE3#201304-202009

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-30521iAVE30,GSE30,35201304-202009

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-30521iAVE3#201304-202009

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iASE30,AVE3#,GSE31201304-202110

main47730-30521iAVE3#,GSE35201304-202009

main47730-53100iUSE30202209

47731PISTON, FRONT DISC BRAKE

main47731-30560iUSE30202209

main47731-30570iAVE3#202002-202009

main47731-33070iAVE30,GSE30,35201304-202002

sub47731-30570

main47731-50070iASE30,GSE31201304-202110

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iASE30,GSE31201304-202110

main47750-30521iAVE3#,GSE35201304-202009

main47750-53100iUSE30202209

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iAVE30,GSE30,35201304-202009

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-30090iAVE30,GSE30,35201304-202009

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-50010iAVE3#,GSE35201304-202009

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iASE30,GSE31201304-202009

main47781-30220iAVE30201304-202009

main47781-30230iGSE35201304-202009

main47781-30240iAVE35202009-202110

main47781-30260iASE30,AVE30,GSE31202009-202110

main47781-30270iUSE30202209

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iASE30,GSE31201304-202009

main47782-30220iAVE30201304-202009

main47782-30230iAVE35201304-202009

main47782-30240iAVE35202009-202110

main47782-30260iASE30,AVE30,GSE31202009-202110

main47782-30270iUSE30202209

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520iAVE30,GSE30,35201304-202009

22 parts on this diagram · 5 diagrams in section
