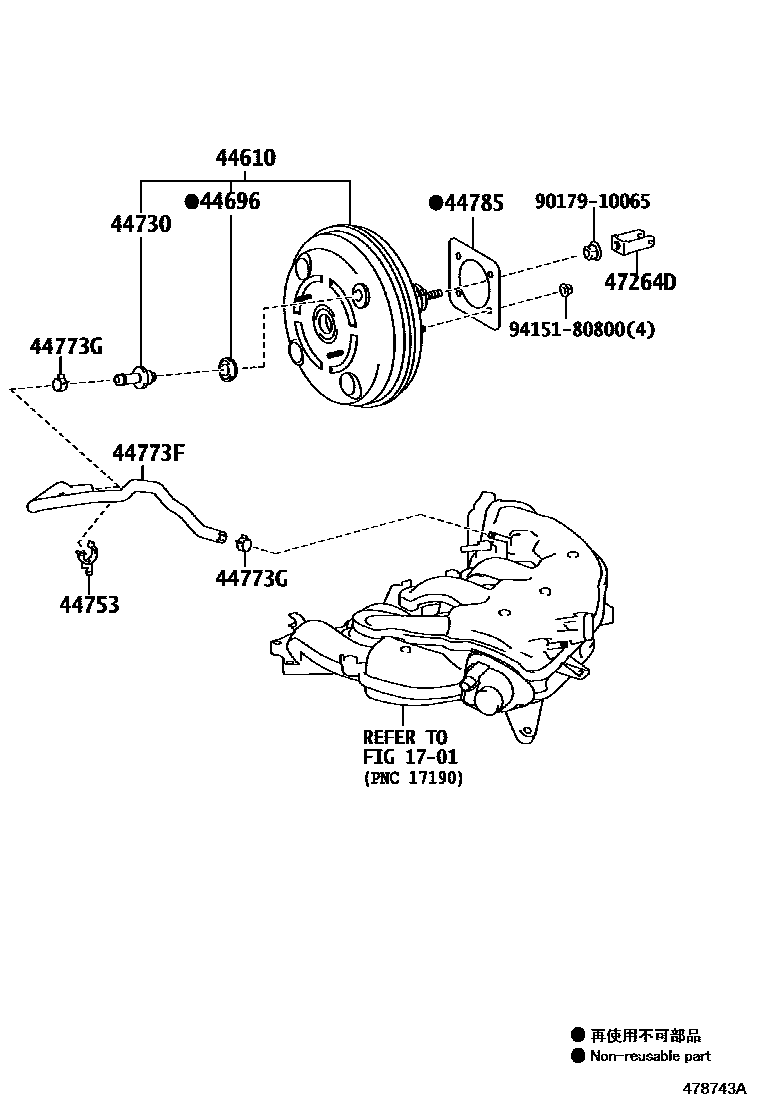

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-30C00iGSE30,35201304-201508

main44610-53520iGSE31202009-202110

main44610-53550iASE30202009-202110

main44610-53610iASE30202111

main44610-53620iGSE31202111

main44610-53650iUSE30202209

main44610-30D50supersedes 44610-24170iGSE31201610-201710

main44610-53390iGSE30201412-201508

main44610-53420supersedes 44610-53410iGSE31201304-201508

main44610-53500supersedes 44610-53480iASE30201603-201610

main44610-53510supersedes 44610-53490iGSE31201710-202009

44696GROMMET, CHECK VALVE

main90480-24439iGSE3#201304-201508

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGSE31201710-202003

main44730-30060iASE30,GSE31202004-202009

main44730-60070iGSE31201610-201710

44753CLAMP, VACUUM RESERVOIR, NO.2

main44753-30320iGSE3#201304-201508

44773FHOSE, UNION TO CHECK VALVE

main44773-24050iUSE30202209

main44773-30650iGSE3#201508-201610

main44773-53110iASE30202009-202110

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iGSE31201610-201710

44785GASKET, BRAKE BOOSTER

main44785-47010iASE30,GSE3#201508-201610

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iASE30,GSE31,USE30202306

main47264-22040iGSE3#201304-201508

main47264-63010iASE30,GSE31,USE30202111-202305

9017910065

main90179-10065

9415180800

main94151-80800

11 parts on this diagram · 4 diagrams in section
