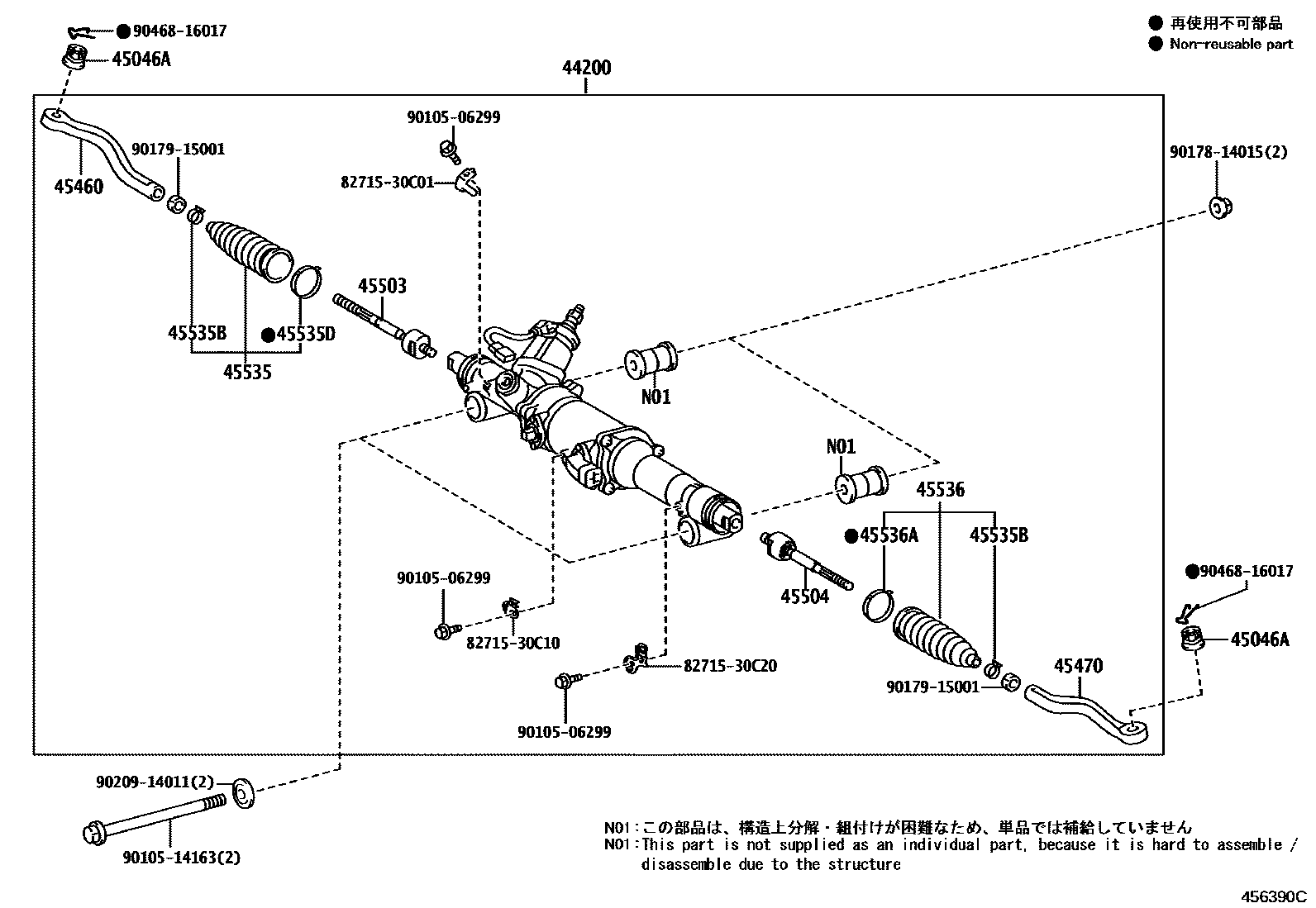

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

44200LINK ASSY, POWER STEERING

main44200-30730iASE30,AVE30,GSE31,USE30202009-202110

main44200-30760iAVE35202009-202110

main44200-53230iAVE30,GSE30,31201304-202009

main44200-53250iAVE35201304-202009

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iAVE30,GSE30,31201304-202110

main90178-12017iAVE35201304-202110

45460ROD ASSY, TIE, RH

main45460-39715iGSE35201304-202110

main45463-30130iASE30,AVE30,GSE31201304-202009

main45463-30190iASE30,AVE30,GSE31202009-202110

45470ROD ASSY, TIE, LH

main45464-30060iASE30,AVE30,GSE31201304-202009

main45464-30090iASE30,AVE30,GSE31,USE30202009-202110

main45470-39255iAVE35201304-202110

45503END SUB-ASSY, STEERING RACK

main45503-30160iAVE35,GSE35201304-202009

main45503-53010iASE30,AVE30,GSE31201304-202009

45504END SUB-ASSY, STEERING RACK, NO.2

main45503-30160iAVE35201304-202009

main45503-53010iASE30,AVE30,GSE31201304-202009

45535BOOT, STEERING RACK, NO.1

main45535-39055iAVE35202009-202110

main45535-59045iAVE30,GSE3#201304-201312

main45535-59065iASE30,AVE3#,GSE31201401-202110

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iASE30,AVE3#,GSE31201304-202110

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main45538-50010iAVE30,GSE3#201304-202110

45536BOOT, STEERING RACK, NO.2

main45535-39055iAVE35202009-202110

main45535-59045iAVE30,GSE3#201304-201312

main45535-59065iASE30,AVE3#,GSE31201401-202110

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-50010iAVE30,GSE3#201304-202110

8271530C01BRACKET,WIRING HARNESS CLAMP

main82715-30C01

8271530C10BRACKET,WIRING HARNESS CLAMP

main82715-30C10

8271530C20BRACKET,WIRING HARNESS CLAMP

main82715-30C20

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

20 parts on this diagram · 3 diagrams in section
