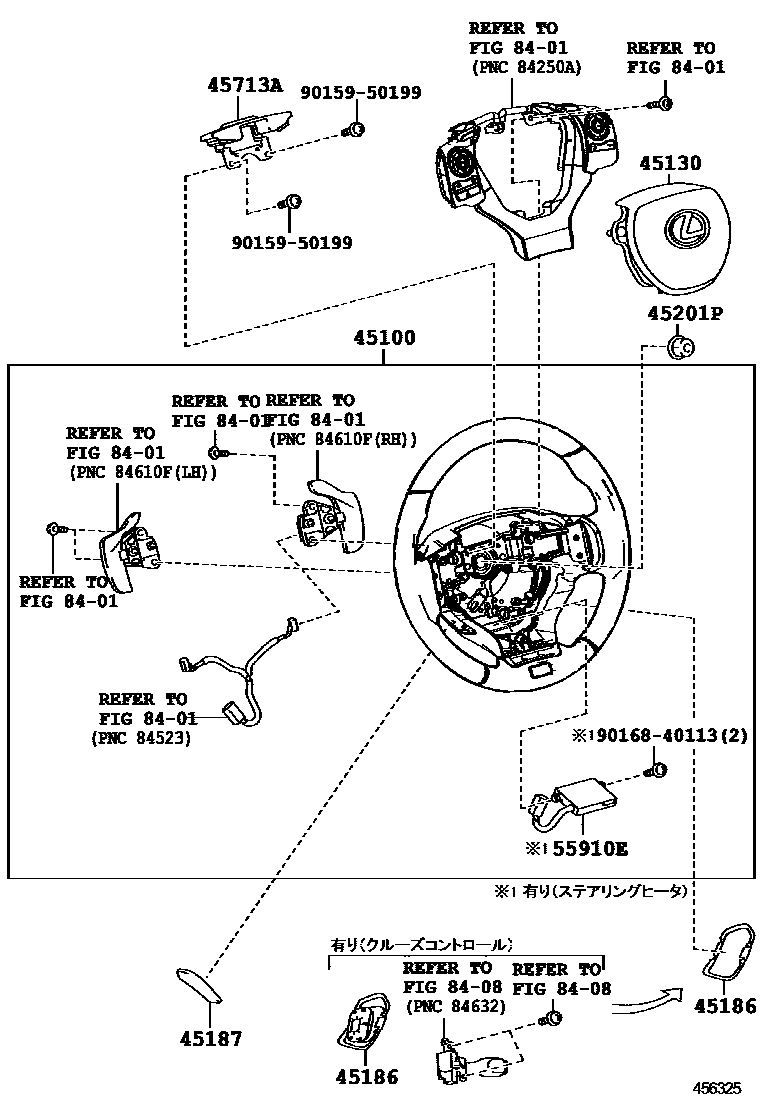

STEERING WHEEL

0001 13������� 0002 13������� 0003 13�������

45100WHEEL ASSY, STEERING

main45100-53590-C3iASE30,AVE3#202111

main45100-53630-C0iASE30,AVE3#; GSE31202009-202110

main45100-53630-C1iASE30,AVE3#; GSE31202009-202110

main45100-53640-C0iASE30,AVE3#; GSE31202111

main45100-53640-C1iASE30,AVE3#; GSE31202111

main45100-53450-C0supersedes 45100-53440-C0iAVE30,GSE3#201304-201502

main45100-53451-C0supersedes 45100-53440-C0iAVE30,GSE3#201503-201508

main45100-53460-23iAVE30,GSE3#201410-201508

main45100-53460-C0iAVE30,GSE3#201304-201508

main45100-53460-C1iAVE30,GSE3#201304-201410

main45100-53470-21iAVE30,GSE3#201410-201502

main45100-53470-C0iAVE30,GSE3#201304-201502

main45100-53470-C1iAVE30,GSE3#201304-201410

main45100-53471-21iAVE30,GSE3#201503-201508

main45100-53471-C0iAVE30,GSE3#201503-201508

main45100-53471-C1iAVE30,GSE3#201503-201508

main45100-53490-C0supersedes 45100-53480-C0iASE30,AVE3#,GSE31201610-201703

main45100-53491-C0supersedes 45100-53481-C0iASE30,AVE3#,GSE31201704-202009

main45100-53500-C0iASE30,AVE3#,GSE31201610-201703

main45100-53500-C1iASE30,AVE3#,GSE31201610-201703

main45100-53501-C0iASE30,AVE3#,GSE31201704-201808

main45100-53501-C1iASE30,AVE3#,GSE31201704-201808

main45100-53510-C0iASE30,AVE3#,GSE31201610-201703

main45100-53510-C1iASE30,AVE3#,GSE31201610-201703

main45100-53511-C0iASE30,AVE3#,GSE31201704-201808

main45100-53511-C1iASE30,AVE3#,GSE31201704-201808

main45100-53520-C0iASE30,AVE3#,GSE31201809-201908

main45100-53530-C0iASE30,AVE3#,GSE31201809-201908

main45100-53540-C1iASE30,AVE3#,GSE31201909-202009

main45100-53550-C1iASE30,AVE3#,GSE31201909-202009

main45100-53560-C1supersedes 45100-53590-C3iASE30,AVE3#202009-202110

main45100-53600-C3supersedes 45100-53590-C3iASE30,AVE3#202111

main45100-53650-C0iASE30,AVE3#,GSE31202009-202110

main45100-53650-C1iASE30,AVE3#,GSE31202009-202110

main45100-53660-C0iASE30,AVE3#; GSE31202111-202209

main45100-53660-C1iGSE31202209-202411

main45100-53660-C4iASE30,AVE3#; GSE31202411

main45100-53670-C0iUSE30202411

main45100-53670-C1iUSE30202411

main45100-53680-C2supersedes 45100-53690-C0iUSE30202209-202411

main45100-78070-C2iASE30,AVE3#,GSE31201809-202009

main45100-78070-C3iASE30,AVE3#,GSE31201809-202009

main45100-78080-C2iASE30,AVE3#,GSE31201809-202009

main45100-78080-C3iASE30,AVE3#,GSE31201809-202009

45130BUTTON ASSY, HORN

main45130-53100-C0iASE30,AVE3#,GSE31201610-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#,9#

main45130-53120-C1iASE30,AVE3#; GSE31202009-202110

BLACK,TRIM0#,2#,3#,4#,6#,7#; BLACK,TRIM0#,6#,7#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-53030-C0iAVE30,GSE31; GSE30,35201304-201508

main45186-53040-C0iGSE30,35201304-201508

BLACK,TRIM0#,1#,2#,5#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-53020-C0iAVE30,GSE31; GSE30,35201304-201508

BLACK,TRIM0#,1#,2#,3#,5#; BLACK,TRIM0#,1#,2#,5#

45201PNUT, STEERING WHEEL SET

main90179-12071iASE30,AVE3#,GSE31202009-202110

45713ADAMPER, STEERING SHAKE

main45713-53010iAVE30,GSE3#201304-201501

main45713-53011iAVE30,GSE3#201502-201508

55910ECONTROL ASSY, STEERING WHEEL HEATER

main55910-53010iAVE30,GSE3#201304-201502

main55910-53011iAVE30,GSE3#201503-201508

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

9016840113

main90168-40113

11 parts on this diagram · 3 diagrams in section
