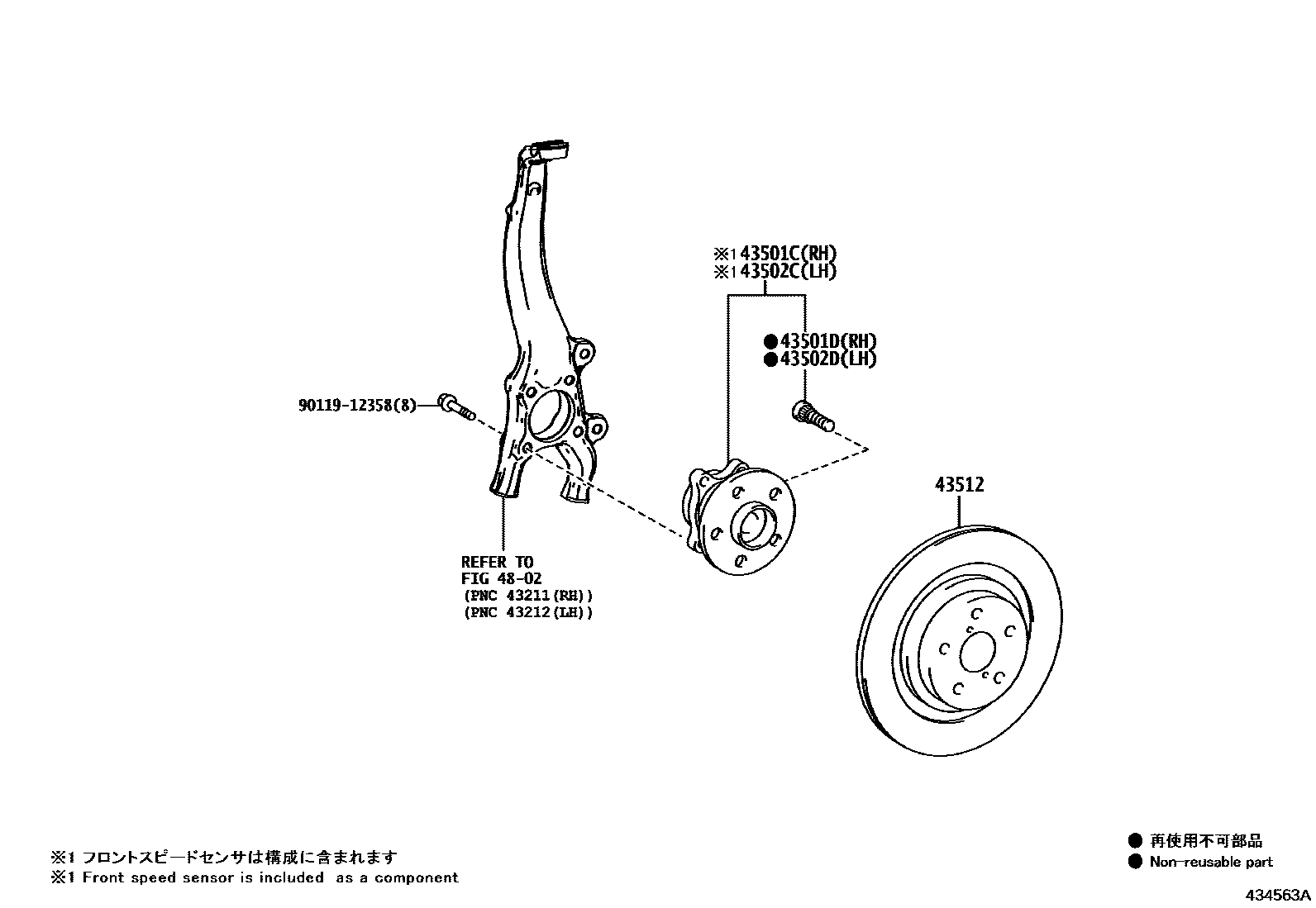

FRONT AXLE HUB

0001 1 0002 1 0003 1 0004 1

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30030iGSE35201304-201507

main43550-30031iAVE35201508-202009

main43550-30070iAVE30,GSE30,31201304-201504

main43550-30071iASE30,AVE30,GSE31201505-202009

main43550-53020iASE30,AVE30,GSE31202009-202110

main43550-53030iAVE35202009-202110

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iASE30,AVE3#,GSE3#201505-202009

main90942-02070iAVE30,GSE30,31201304-201507

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-30070iAVE30,GSE30,31201304-201504

main43550-30071iAVE30,GSE30,31201505-202009

main43550-53020iASE30,AVE30,GSE31,USE30202009-202110

main43560-30030iGSE35201304-201507

main43560-30031iAVE35201508-202009

main43560-53020iAVE35202009-202110

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iAVE30,GSE30,31201505-202009

main90942-02070iAVE30,GSE30,31201304-201507

43512DISC, FRONT

main43512-30310iAVE3#,GSE35201304-202009

main43512-30350iASE30,GSE31201304-202009

main43512-30351iASE30,AVE3#,GSE31202009-202110

main43512-53050iUSE30202209

main43516-30040iASE30,GSE31201304-202009

main43516-30041iASE30,AVE3#,GSE31202009-202110

main43516-53030iUSE30202209

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9011912358

main90119-12358

7 parts on this diagram · 4 diagrams in section
