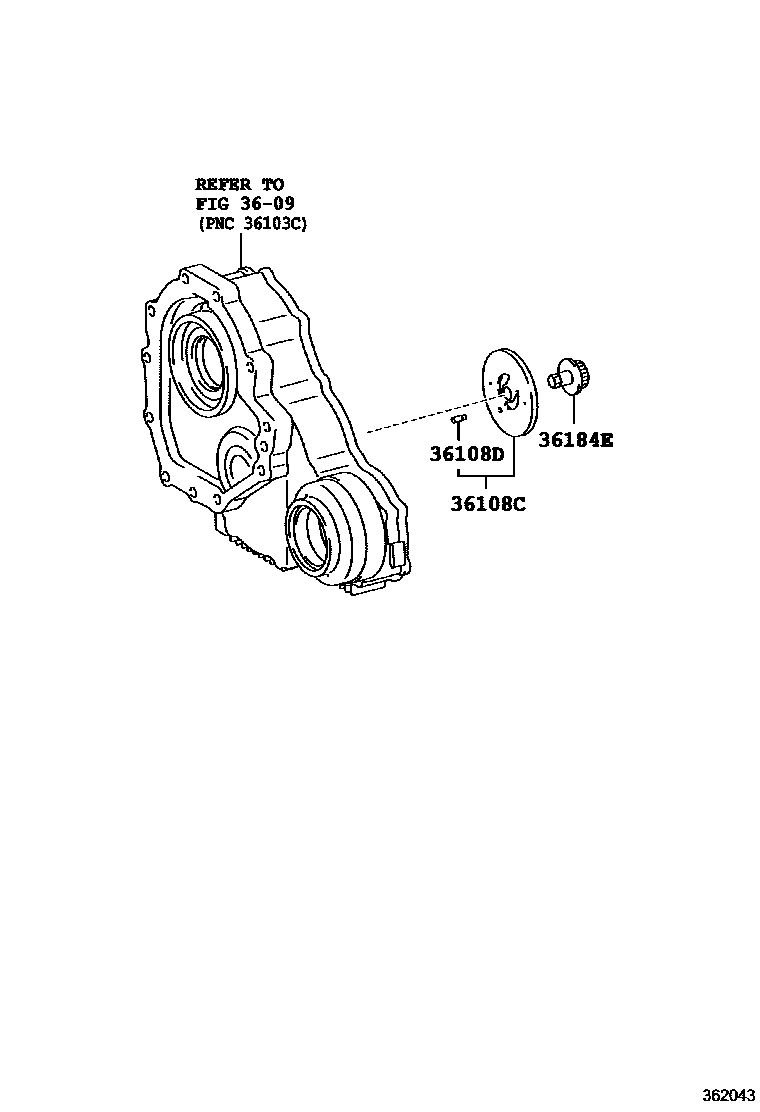

TRANSFER OIL PUMP

3609TRANSFER CASE & EXTENSION HOUSING

→ Go to FIG 36-09

36108CPLATE SUB-ASSY, TRANSFER OIL PUMP

main36108-50010iAVE35201508-201610

36108DPIN (FOR TRANSFER OIL PUMP PLATE)

main90249-05101iAVE35201508-201610

36184ESHAFT, TRANSFER OIL PUMP DRIVE

main36184-50020iAVE35201508-201610

4 parts on this diagram · 1 diagram in section
