1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-31020i201304-201508

main22030-31040i201610-201710

main22030-31100i201710-202009

main22030-36030i201304-201508

main22030-36050i202009-202110

main22030-38050i202209

22271GASKET, THROTTLE BODY

main22271-31020i201304-201508

main22271-31030i201508-201610

main22271-31040i202111

main22271-36030i201508-201610

main22271-36040i201508-201610

main22271-38030i202209

23021PUMP SUB-ASSY, FUEL W/SEAL

main23021-36010i201508-201610

main23021-36050i201709-201903

main23021-38020i201904-202009

main23021-38030i202209

23224GASKET, FUEL PUMP SPACER, RH

main23224-36010i202209

23224DGASKET, FUEL PUMP SPACER

main23224-31020i201710-202009

main23224-31021i202112

main23224-36010i201610-202009

main23224-36020i201508-201610

23250INJECTOR ASSY, FUEL

main23209-31070×6i201304-201508

main23209-39057-A0×6i201304-201508

MARK BLACK

main23209-39057-B0×6i201508-201610

MARK BROWN

main23209-39155-A0×6i201610-201710

main23209-39155-B0×6i201304-201508

main23209-39155-C0×6i201508-201610

main23209-39155-D0×6i201508-201610

23250BRING, O(FOR FUEL INJECTOR)

main90301-05011×6i201710-201901

main90301-05013×8i202209

main90301-06018×6i201304-201508

main90301-07037×4i202009-202110

main90301-C0072×4i201908-202009

23250EINJECTOR ASSY, FUEL(FOR DIRECT)

main23209-31150-01×4i201610-202009

main23209-31150-02×4i202009-202110

main23209-31150-03×4i201304-201508

main23209-31170-06×6i202111

main23209-31170-07×6i201710-202009

main23209-31170-08×6i201710-202009

main23209-36030-01×4i201610-202009

main23209-36030-02×4i202009-202110

main23209-36030-03×4i202009-202110

23250FINJECTOR ASSY, FUEL(FOR PORT)

main23209-38060×8i202209

main23209-39275×4i202111

main23209-39325×6i201710-202002

main23209-39435×6i202111

23255ASEAL, FUEL INJECTOR

main23255-31010×12i201508-201610

main23255-31020×4i201508-201610

main23255-31030×4i201902-202009

23256RING, FUEL INJECTOR BACK-UP, NO.1

main23256-25010×8i202209

main23256-31010×4i201508-201610

main23256-74010×6i201304-201508

23258RING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011×6i201610-201710

main23258-31010×4i202111

main23258-31020×6i202111

main23258-36010×4i201508-201610

23291INSULATOR, INJECTOR VIBRATION

main23291-23010×8i202209

main23291-28020×4i202111

main23291-31011×6i201508-201610

main23291-31030×6i202111

23291AINSULATOR, INJECTOR VIBRATION

main23291-23010×6i201710-201803

main23291-28020×6i202009-202110

main23291-31020×4i201508-201610

23470LIFTER ASSY, FUEL PUMP

main23460-36010i201304-201508

main23470-25010i202111

main23470-36020i202111

23477GUIDE, FUEL PUMP LIFTER

main23477-31020i201710-202009

main23477-36011i201711-202009

main23477-36020i202009-202110

main23477-38010×2i202209

23695ACLAMP, NOZZLE HOLDER

main23695-31010×6i201304-201508

main23695-31020×4i201610-202009

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-12041i201304-201312

23801HGASKET(FOR FUEL PIPE)

main23232-41081i201312-201409

main90430-12026i201410-201508

main90430-13006×2i201304-201312

23801PPIPE SUB-ASSY, FUEL, NO.1

main23801-31210i202009-202110

main23801-36020i201508-201610

main23801-36031i201508-201610

main23801-36110i201809-202009

main23801-38040i202209

23807PIPE SUB-ASSY, FUEL DELIVERY

main23800-36010i201304-201311

main23800-36011i201311-201508

main23800-36020i202009-202110

main23800-36050i201610-201809

main23807-31062i201304-201411

main23807-31150i201610-201710

main23807-38020i202209

23811BPIPE, FUEL, NO.1

main23811-36030i201304-201312

main23811-36040i201312-201506

main23811-36041i201610-202009

23814BPIPE, FUEL DELIVERY

main23800-36040i202111

main23814-36060i202111

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21050i202209

main23842-22020×2i201304-201309

main23842-28010×2i201309-201508

23891SPACER, FUEL DELIVERY

main23891-36020×2i201304-201508

main23891-36030×2i201610-202009

23901TUBE SUB-ASSY, FUEL

main23901-31280i202111

main23901-31310i201610-201710

main23901-31330i201710-202009

main23901-36090i201304-201312

main23901-36091i201508-201610

main23901-36190i202111

main23901-36270i202209

main23901-38060i202209

23902TUBE SUB-ASSY, FUEL

main23902-31012i201304-201508

main23902-31090i202111

main23902-31240i201710-202009

main23902-36010i202009-202110

main23902-36070i201508-201610

main23902-38050i202209

23915INSULATOR, FUEL PUMP

main23915-31010i201610-202009

main23915-46011i201304-201508

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77281PCLAMP, FUEL HOSE

main77281-30120i202009-202110

main77281-30150i201508-201610

main77281-50040i202009-202110

77285NCLAMP, FUEL TUBE, NO.1

main77285-30340i201508-201509

main77285-30380i201508-201610

9010708004

main90107-08004

9012608062

main90126-08062

9030105013

main90301-05013

9030131016

main90301-31016

9052014004

main90520-14004

9155180650

main91551-80650

9155180865

main91551-80865

91671G0835

main91671-G0835

9415120841

main94151-20841

9672319010

main96723-19010

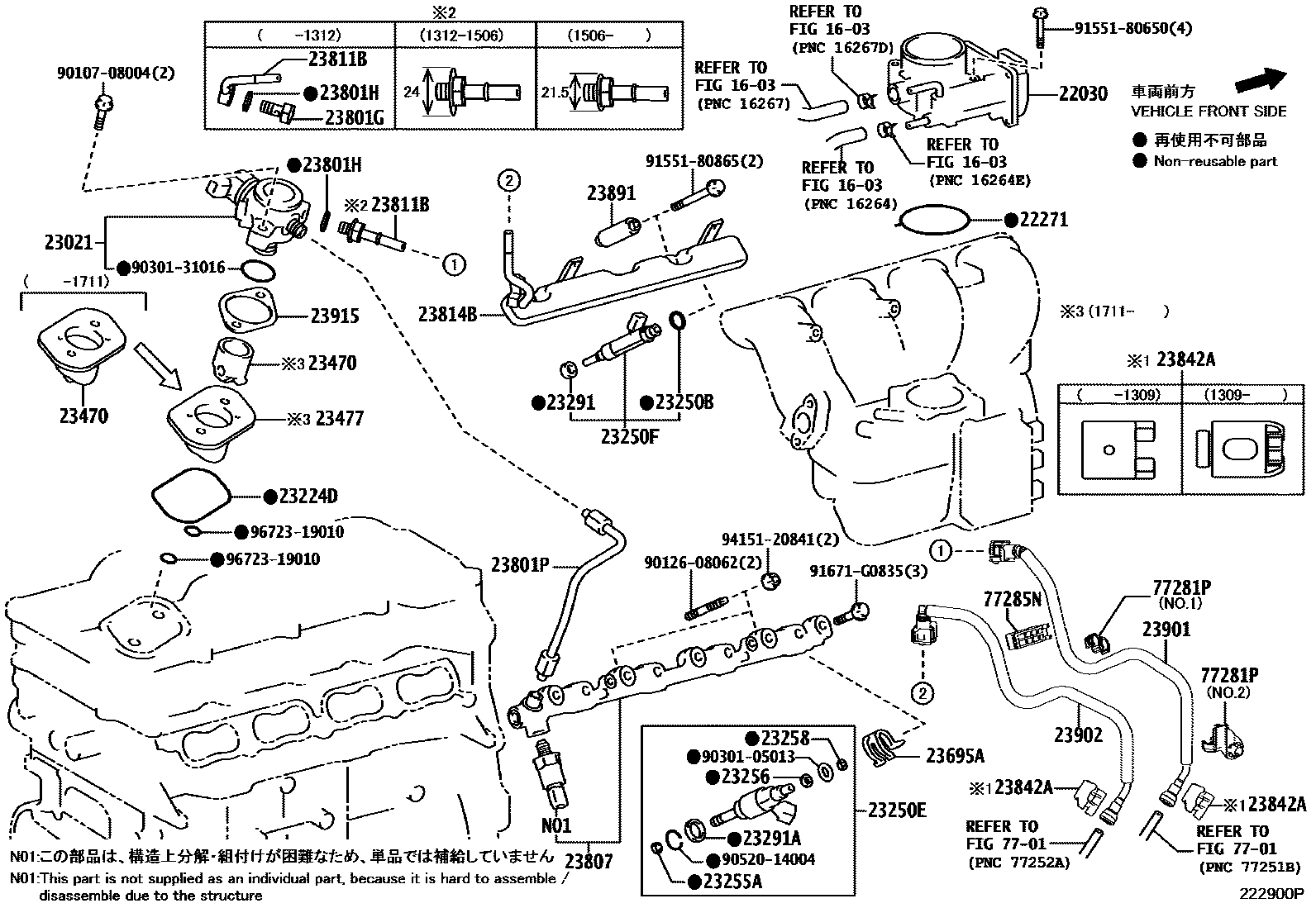

FUEL INJECTION SYSTEM
