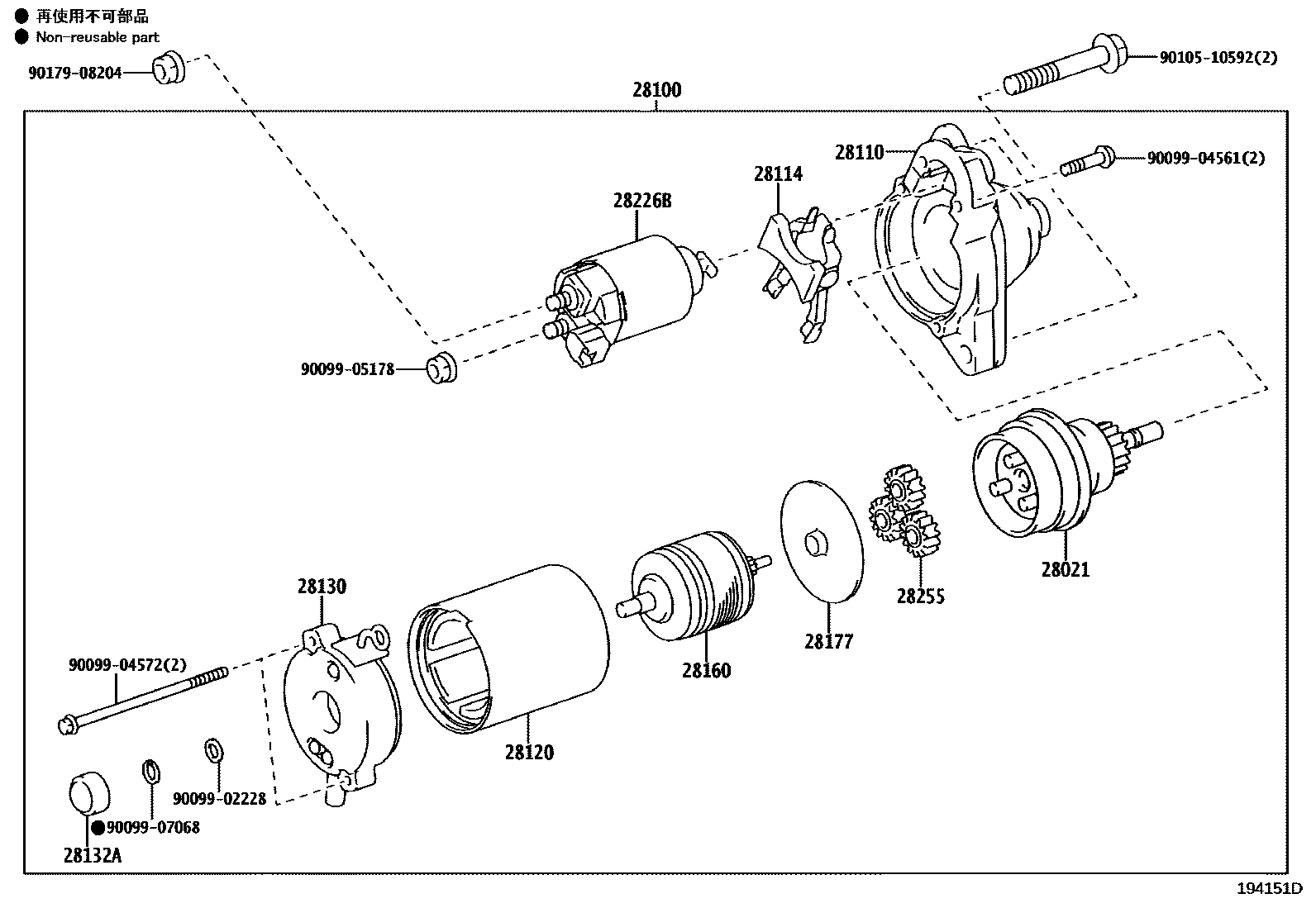

STARTER

0001 112V 1.3KW,1.7KW 0002 112V 1.3KW, 1.7KW 0003 112V 1.7KW 0004 112V 2.0KW

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-21060i2GRFKS..GSE31202009-202110

main28021-36140i8ARFTS..ASE30201610-202009

main28021-75210i2URGSE..USE30202209

28100STARTER ASSY

main28100-36140i8ARFTS..ASE30202009-202110

main28100-38091i2URGSE..USE30202209

main28100-31071supersedes 28100-31081i2GRF,4GRFSE..GSE3#201508-201610

main28100-31220supersedes 28100-31210i2GRFKS..GSE31202111

28110HOUSING ASSY, STARTER DRIVE

main28110-31040i2GRF,4GRFSE..GSE3#201508-201610

main28110-31210i2GRF..GSE31201710-202009

28114PIN, STARTER DRIVE LEVER SET

main28114-21060i2GRF,4GRFSE..GSE3#201304-201508

28120YOKE ASSY, STARTER

main28120-36140i8ARFTS..ASE30201508-201610

main28120-38090i2URGSE..USE30202209

main28120-28060supersedes 28120-28080i2GRF,4GRFSE..GSE3#201508-201610

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-31070supersedes 28130-31080i2GRF..GSE31201610-202009

28132ACOVER, STARTER COMMUTATOR END FRAME

main28132-28040i2GRF,4GRFSE..GSE3#201304-201508

28160ARMATURE ASSY, STARTER

main28160-21060i2GRF,4GRFSE..GSE3#201508-201610

main28160-36110i8ARFTS..ASE30201701-202009

main28160-37100i8ARFTS..ASE30201610-201701

28177PLATE(FOR STARTER ARMATURE)

main28177-28040i2GRF..GSE31201610-202009

28226BSTARTER KIT, REPAIR SERVICE

main28226-22061i2GRF..GSE31201610-202009

main28226-37100i8ARFTS..ASE30202111

28255GEAR, PLANET

main28255-20020×3supersedes 28255-28040i2GRF,4GRFSE..GSE3#201304-201508

9009902228

main90099-02228

9009904561

main90099-04561

9009904572

main90099-04572

9009905178

main90099-05178

9009907068

main90099-07068

9010510592

main90105-10592

9017908204

main90179-08204

18 parts on this diagram · 4 diagrams in section
