ALTERNATOR

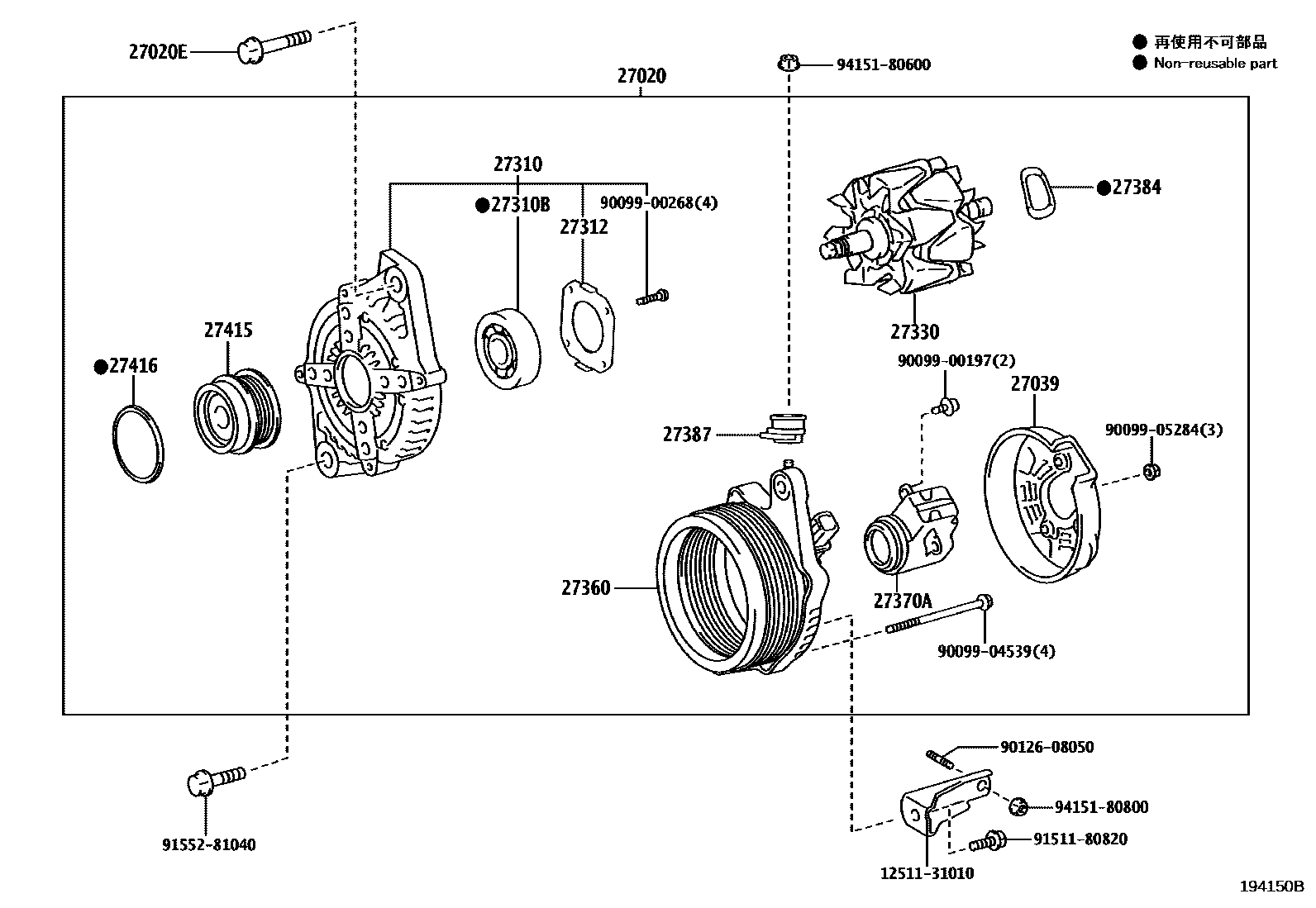

Parts diagram

27020ALTERNATOR ASSY

main27060-31300i202111

main27060-31350i201610-201710

main27060-36130i201610-202009

main27060-38120i202209

27020EBOLT(FOR ALTERNATOR)

main91552-81070i201610-201710

27039COVER, ALTERNATOR REAR END

main27039-31390i201610-201710

main27039-31570i202009-202110

main27039-38150i202111

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-31220i201304-201508

main27310-31570i201710-202009

main27310-36210i201610-202009

main27310-38130i202209

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i202009-202110

main90099-10226i202111

27312PLATE, RETAINER

main27312-42010i201508-201610

main27312-72100i201610-202009

27330ROTOR ASSY, ALTERNATOR

main27330-38140i202009-202110

main27330-58460i202009-202110

27360COIL ASSY, ALTERNATOR

main27360-31500i201610-201710

main27360-31570i202009-202110

main27360-36210i201508-201610

main27360-38210i202209

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-27060i201508-201610

main27370-31220i201610-202009

main27370-58460i202209

27384WASHER

main27384-38130i202111

main27384-50030i201304-201508

27387INSULATOR, TERMINAL

main27387-20130i201610-201710

main27387-31580i201710-202009

main27387-38130i202111

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P020i201710-202009

main27415-0W130i201304-201306

main27415-0W131i201307-201508

main27415-0W230i201508-201610

main27415-38010i202209

27416CAP, ALTERNATOR PULLEY

main27416-0W050i201304-201508

1251131010BRACKET, ALTERNATOR, NO.1

main12511-31010

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9012608050

main90126-08050

9151180820

main91511-80820

9155281040

main91552-81040

9415180600

main94151-80600

9415180800

main94151-80800
