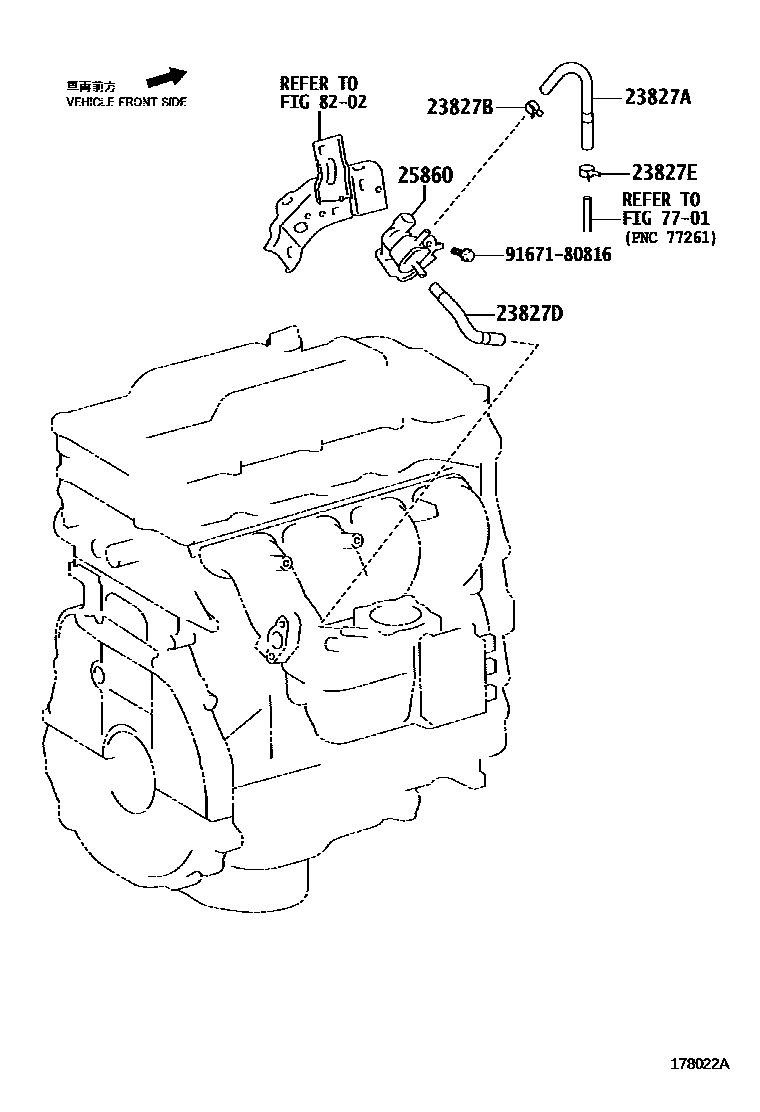

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-31150i2GRF..GSE31201610-201710

main23827-36110i2ARFSE..AVE3#201610-202009

main23827-36150i8ARFTS..ASE30201610-202009

main23827-36210i2ARFSE..AVE30202009-202110

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2URGSE..USE30202209

main96132-51300×2i2GRF..GSE31201610-201710

main96133-41301i2ARFSE..AVE35; 2GRFKS..GSE31202111

main96136-41901i2ARFSE..AVE30202111

main96136-42201i8ARFTS..ASE30201610-202009

23827DHOSE, FUEL VAPOR FEED, NO.2

main23827-36120i2ARFSE..AVE35202009-202110

main23827-36220i2ARFSE..AVE30202009-202110

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i2ARFSE..AVE30; 2GRF,4GRFSE..GSE3#201304-201508

main96136-41901i2ARFSE..AVE30202009-202110

main96137-41901i8ARFTS..ASE30202009-202110

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31060i2GRF..GSE31201610-201710

main25860-31090i2GRF..GSE31201710-202009

main25860-36080i2ARFSE..AVE3#201610-202009

main25860-36150i2ARFSE..AVE30202009-202110

main25860-38030i2URGSE..USE30202209

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8202WIRING & CLAMP

→ Go to FIG 82-02

9167180816

main91671-80816

8 parts on this diagram · 5 diagrams in section
