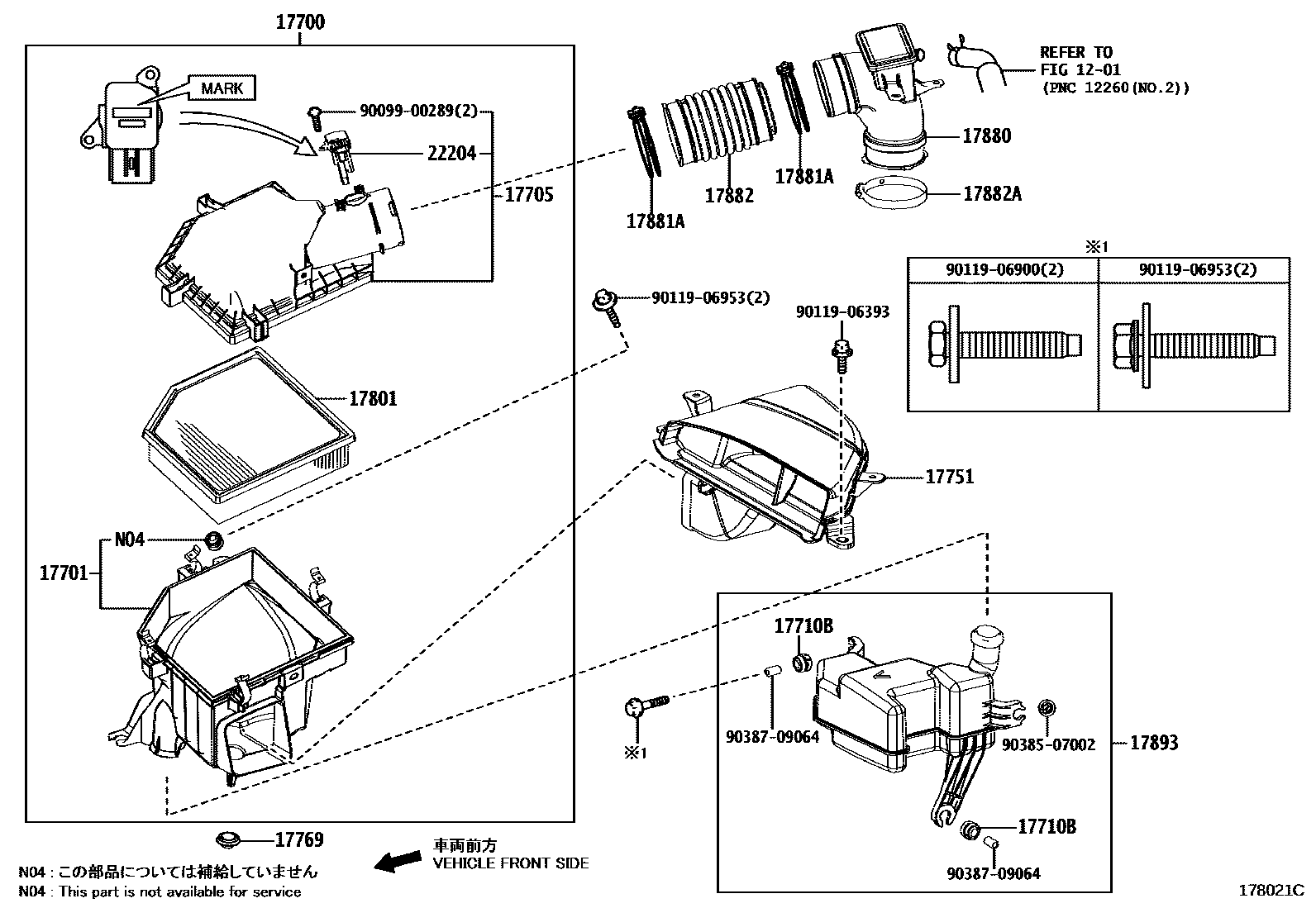

AIR CLEANER

0001 1 0002 1 0003 1��������� 0004 1��������� 0005 1��������� 0006 1 0007 1 0008 1

1201VENTILATION HOSE

→ Go to FIG 12-01

17700CLEANER ASSY, AIR

main17700-31820i2GRF..GSE31201610-202009

main17700-31A20i2GRFKS..GSE31202111

main17700-36280i2ARFSE..AVE3#201610-202009

main17700-36300i2ARFSE..AVE3#202111

main17700-36410i8ARFTS..ASE30202009-202110

main17700-36430i8ARFTS..ASE30201508-201610

main17700-38280i2URGSE..USE30202209

17701CASE SUB-ASSY, AIR CLEANER

main17701-31620i2GRF..GSE31; 8ARFTS..ASE30201610-202009

main17701-31690i2GRFKS..GSE31; 8ARFTS..ASE30202009-202110

main17701-36230i2ARFSE..AVE30201304-201508

main17701-36240i2ARFSE..AVE3#202009-202110

main17701-38171i2URGSE..USE30202209

17705CAP SUB-ASSY, AIR CLEANER

main17705-31300i2ARFSE..AVE3#; 2GRFKS..GSE31202009-202110

main17705-31360i2ARFSE..AVE30; 2GRF,4GRFSE..GSE3#201304-201508

main17705-36180i8ARFTS..ASE30202009-202110

main17705-36200i8ARFTS..ASE30201610-202009

main17705-38220i2URGSE..USE30202209

17710BGROMMET

main90480-11016×2i2ARFSE..AVE3#201610-202009

17751INLET, AIR CLEANER, NO.1

main17751-31370i2GRF..GSE31; 8ARFTS..ASE30201610-202009

main17751-31390i2GRFKS..GSE31; 8ARFTS..ASE30202111

main17751-36070i2ARFSE..AVE30201304-201508

main17751-36170i2ARFSE..AVE3#202009-202110

main17751-38080i2URGSE..USE30202209

17769SUPPORT, AIR CLEANER

main17769-31030i2ARFSE,8ARFTS..ASE30,AVE3#; 2GRF,4GRFSE..GSE3#201508-201610

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31170i2ARFSE..AVE30; 2GRF,4GRFSE..GSE3#201304-201508

main17801-38021i2URGSE..USE30202209

17880HOSE ASSY, AIR CLEANER

main17880-36100i2ARFSE..AVE30201304-201508

main17880-38081i2URGSE..USE30202209

17881HOSE, AIR CLEANER, NO.1

main17880-36170i8ARFTS..ASE30202009-202110

main17881-31280i2GRF..GSE31201304-201508

main17881-31290i4GRFSE..GSE30,35201304-201508

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main17891-38050i2URGSE..USE30202209

main96111-10670i8ARFTS..ASE30201508-201610

main96111-10850i2GRF,4GRFSE..GSE3#201304-201508

main96111-10880×2i2ARFSE..AVE3#201610-202009

17882HOSE, AIR CLEANER, NO.2

main17882-36030i2ARFSE..AVE3#202009-202110

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main17891-31010i2ARFSE..AVE30; 4GRFSE..GSE30,35201304-201508

main17891-38070i2URGSE..USE30202209

main90460-90005i2GRFKS..GSE31202009-202110

17893RESONATOR, INTAKE AIR

main17893-36090i2ARFSE..AVE3#201610-202009

main17893-36110i2ARFSE..AVE3#202111

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ARFSE,8ARFTS..ASE30,AVE3#; 2GRF,4GRFSE..GSE3#201508-201610

main22204-0V010i2ARFSE,8ARFTS..ASE30,AVE3#; 2GRFKS..GSE31202009-202110

main22204-0V020i2ARFSE,8ARFTS..ASE30,AVE3#; 2GRF..GSE31201610-202009

main22204-28010i2ARFSE,8ARFTS..ASE30,AVE3#; 2GRF..GSE31201610-202009

main22204-75040i2URGSE..USE30202209

9009900289

main90099-00289

9011906393

main90119-06393

9011906900

main90119-06900

9011906953

main90119-06953

9038507002

main90385-07002

9038709064

main90387-09064

21 parts on this diagram · 8 diagrams in section
