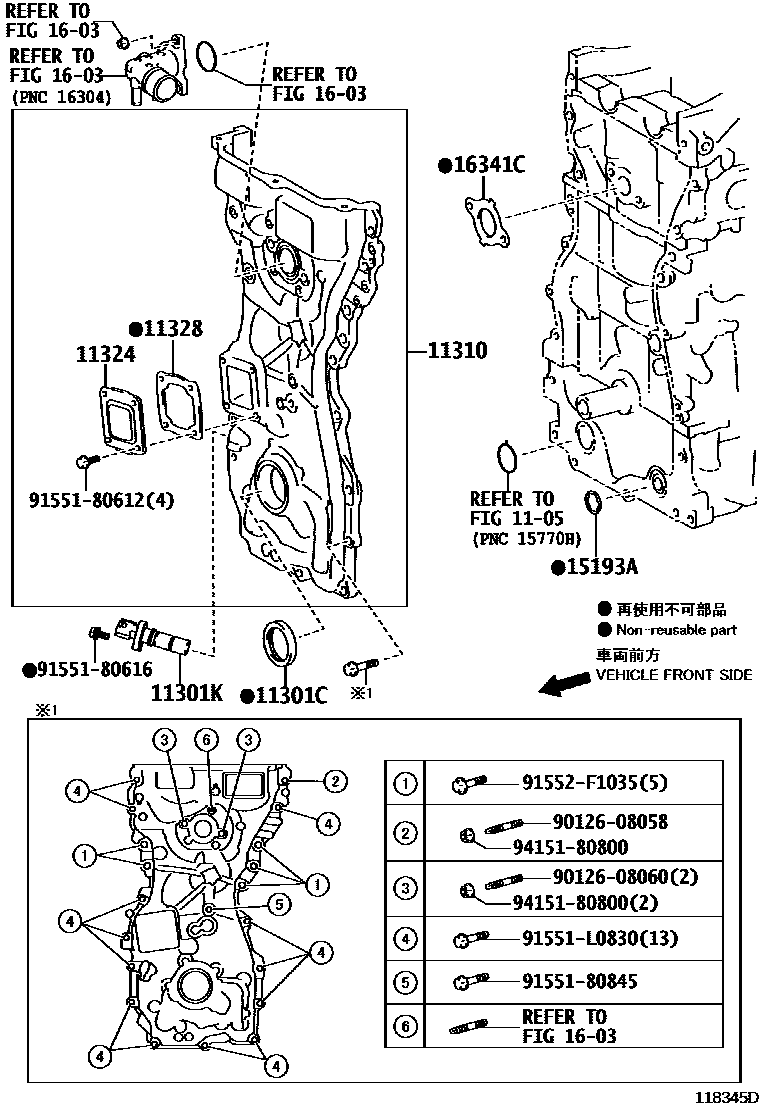

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFSE..AVE3#201409-201902

sub90311-42061

main90311-42036i2URGSE..USE30202209

main90311-42043i2ARFSE..AVE30201304-201312

sub90311-42051

main90311-42045i2GRF..GSE31201304-201710

main90311-42051i8ARFTS..ASE30201312-202110

main90311-42052i2GRFKS..GSE31201710-202110

main90311-42061i2ARFSE..AVE3#201903-202110

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFSE..AVE3#201304-202110

main90919-05088i8ARFTS..ASE30201508-202110

11310COVER ASSY, TIMING CHAIN

main11310-31080i2GRFKS..GSE31201710-202110

main11310-36050i2ARFSE..AVE30201304-202110

main11310-36070i2ARFSE..AVE35201508-202110

main11310-36080i8ARFTS..ASE30201508-202110

main11310-38100i2URGSE..USE30202209

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRF,4GRFSE..GSE3#201304-202110

main11324-36010i2ARFSE..AVE3#201304-202110

main11324-36020i8ARFTS..ASE30201508-202110

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRF,4GRFSE..GSE3#201304-202110

main11328-36020i2ARFSE..AVE30201304-202110

main11328-36030i8ARFTS..ASE30201508-202110

main11328-38030i2URGSE..USE30202209

15193AGASKET, OIL PUMP

main15193-31020i2GRF..GSE31201710-202110

main15197-36010i2ARFSE,8ARFTS..ASE30,AVE3#201304-202110

1603

16341CGASKET, WATER OUTLET

main16341-36010i2ARFSE..AVE30201304-202110

9012608058

main90126-08058

9012608060

main90126-08060

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800

17 parts on this diagram · 5 diagrams in section
