ENGINE OVERHAUL GASKET KIT

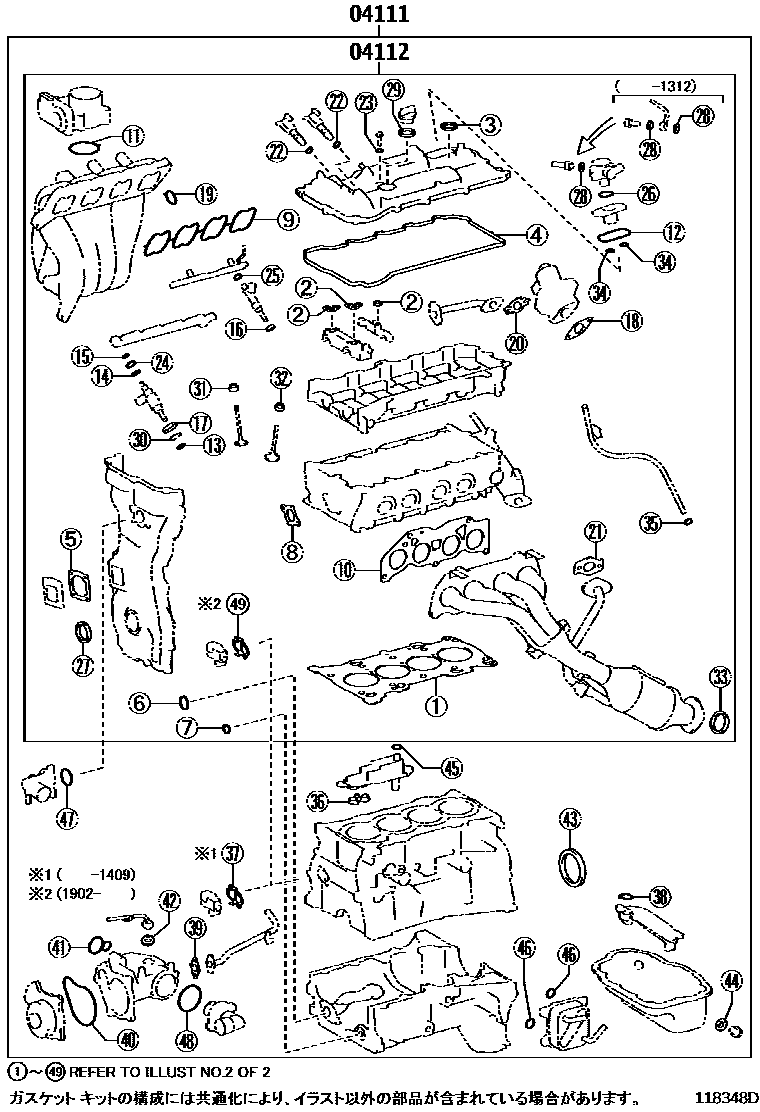

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-31602i201304-201407

main04111-31783i201304-201508

main04111-31784i201505-201610

main04111-31941i201407-201503

main04111-31942i201503-201505

main04111-31943i201505-201710

main04111-31C31i201710-202107

main04111-31C32i202107-202112

main04111-31C33i202112

main04111-36180i201304-201309

main04111-36181i201309-201312

main04111-36210i201312-201409

main04111-36211i201409-202110

main04111-36221i201508-202110

main04111-36290i201508-201710

main04111-36291i201710-202004

main04111-36400i202004-202110

main04111-38310i202209

04112GASKET KIT, ENGINE VALVE GRIND

main04112-31333i201304-201610

main04112-31363i201304-201407

main04112-31681i201407-201710

main04112-31881i201710-202112

main04112-31882i202112

main04112-36150i201304-201312

main04112-36160i201312-201409

main04112-36161i201409-201902

main04112-36162i201902-202110

main04112-36171i201508-201902

main04112-36172i201902-202110

main04112-36240i201508-201710

main04112-36241i201710-202004

main04112-36350i202004-202110

main04112-38290i202209

2 parts on this diagram · 14 diagrams in section
