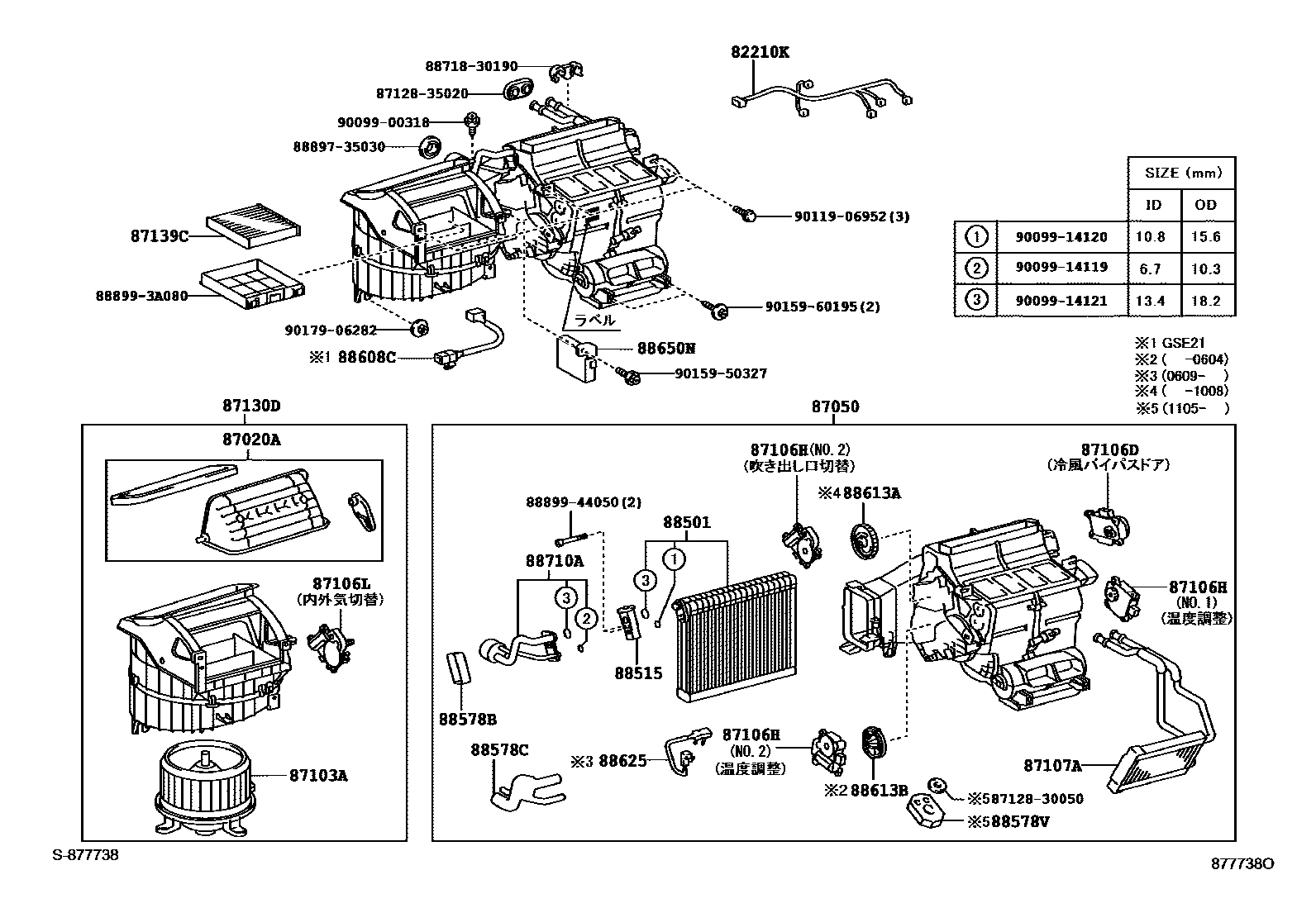

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82210-3A210iGSE2#200508-200603

main82210-3A211iGSE2#200604-200609

main82212-30012iGSE2#200609-200701

main82212-30013iGSE2#200702-200808

87020ADAMPER ASSY, HEATER AIR

main87020-30010iGSE2#200508-200806

87050RADIATOR ASSY, AIR CONDITIONER

main87050-30110iGSE2#200508-200609

main87050-30160iGSE2#200609-200702

main87050-30210iGSE2#200808-201008

main87050-30211iGSE2#201105

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-30400iGSE2#200508-200808

main87103-30401iGSE2#201011

87106DSERVO SUB-ASSY, DAMPER, NO.1

main87106-30440iGSE2#201008

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-30430iGSE2#200508-200808

main87106-30450×2iGSE2#200508-200808

87106LSERVO SUB-ASSY, DAMPER

main87106-30470iGSE2#200808-201008

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-30560iGSE2#200508-200808

87130DBLOWER ASSY

main87130-30790iGSE2#200508-200806

main87130-30791iGSE2#200806-200808

87139CFILTER, CLEAN AIR

main87139-30040iGSE2#200508-200808

main87139-50060iGSE2#200808-201008

main87139-50100iGSE2#201206-201304

main87139-52040iGSE2#201208-201304

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-3A060iGSE2#200508-200609

main88501-3A110iGSE2#200609-200801

main88501-3A160iGSE2#200801-200808

main88501-3A161iGSE2#201105

88515VALVE, COOLER EXPANSION

main88515-28180iGSE2#200508-200808

main88515-30780iGSE2#201105

88578BPACKING, COOLING UNIT, NO.1

main88578-30830iGSE2#200508-200808

88578CPACKING, COOLING UNIT, NO.2

main88578-30840iGSE2#200508-201008

88578VPACKING, COOLING UNIT, NO.3

main88578-30870iGSE2#201105

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-3A170iGSE21200508-200808

88613ALEVER, COOLER CONTROL, NO.1

main88613-30010iGSE2#200508-201008

88613BLEVER, COOLER CONTROL, NO.2

main88613-30020iGSE2#200508-200604

88625THERMISTOR, COOLER, NO.1

main88620-30020iGSE2#200609-200808

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-53210iGSE2#200808-200908

main88650-53331iGSE2#201102-201208

main88650-53490iGSE2#201208

main88650-53100supersedes 88650-53330iGSE2#200508-200603

main88650-53120supersedes 88650-53330iGSE2#200603-200605

main88650-53121supersedes 88650-53330iGSE2#200605-200609

main88650-53122supersedes 88650-53112iGSE2#200609-200708

main88650-53180supersedes 88650-53170iGSE2#200708-200801

main88650-53181supersedes 88650-53330iGSE2#200802-200808

main88650-53220iGSE20,21; GSE25200808-200908

main88650-53300supersedes 88650-53290iGSE2#200908-201005

main88650-53301supersedes 88650-53330iGSE2#201006-201008

main88650-53340iGSE20,21; GSE25201008-201101

main88650-53341iGSE20,21; GSE25201102-201208

main88650-53500iGSE20,21; GSE25201208

88710ATUBE ASSY, AIR CONDITIONER

main88710-3A260iGSE2#200508-200808

main88710-3A420iGSE2#201105-201304

8712830050GROMMET, HEATER

main87128-30050

8712835020GROMMET, HEATER

main87128-35020

8871830190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30190

8889735030VALVE, COOLER MAGNET

main88897-35030

888993A080COVER, EVAPORATOR

main88899-3A080

8889944050COVER, EVAPORATOR

main88899-44050

9009900318

main90099-00318

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011906952

main90119-06952

9015950327

main90159-50327

9015960195

main90159-60195

9017906282

main90179-06282

35 parts on this diagram · 1 diagram in section
