NAVIGATION & FRONT MONITOR DISPLAY

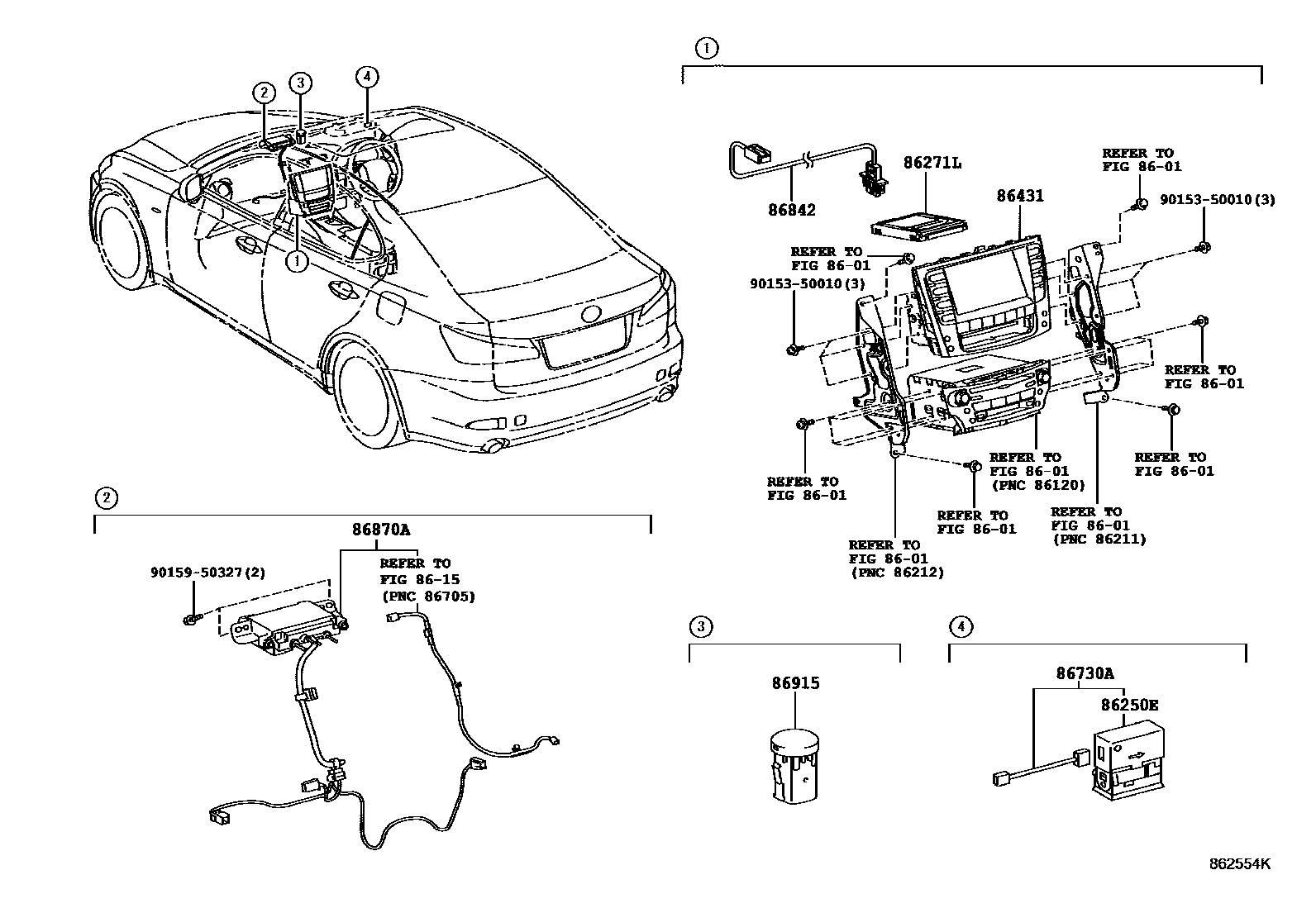

Parts diagram

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

86250EMICROPHONE ASSY, AMPLIFIER

main86250-52020i200508-200908

86271LHARD DISC

main86271-30520i200508-200603

main86271-30521i200604-200608

main86271-30522i200609-200703

main86271-30523i200704-200707

main86271-30524i200708-200803

main86271-30525i200804-200808

main86271-30526i200808-200904

main86271-30527i200904-200908

main86271-30661i201208-201209

main86271-30662i201209-201304

86431DISPLAY, DISPLAY & NAVIGATION MODULE

main86431-53010i200508-200808

main86431-53010i200508-200808

main86431-53020i200508-200808

main86431-53040i201108-201109

main86431-53041i201109-201205

main86431-53042i201206-201208

main86431-53060i200808-200908

main86431-53070i200808-200908

main86431-53280i200908-200909

main86431-53281i200909-201003

main86431-53282i201004-201009

main86431-53283i201009-201103

main86431-53284i201104-201108

main86431-53290i200908-200909

main86431-53291i200909-201003

main86431-53292i201004-201009

main86431-53293i201009-201103

main86431-53294i201104-201108

main86431-53870i201108-201109

main86431-53871i201109-201205

main86431-53872i201206-201208

86730AMICROPHONE ASSY, TELEPHONE

main86730-53010i200508-200808

main86730-53010i200808-200908

main86730-53050i200908-201304

86842WIRE, NAVIGATION, NO.1

main86842-53020i200508-200907

main86842-53100i200908-201208

main86842-53200i201208-201304

86870AANTENNA ASSY, GPS & VICS

main86870-53010i200508-200902

main86870-53011i200903-200907

main86870-53040i200908-201208

main86880-53030i201208

86915TRANSCEIVER, OPTICAL BEACON

main86915-60010i200508-201008

9015350010

main90153-50010

9015950327

main90159-50327

11 parts on this diagram · 3 diagrams in section
