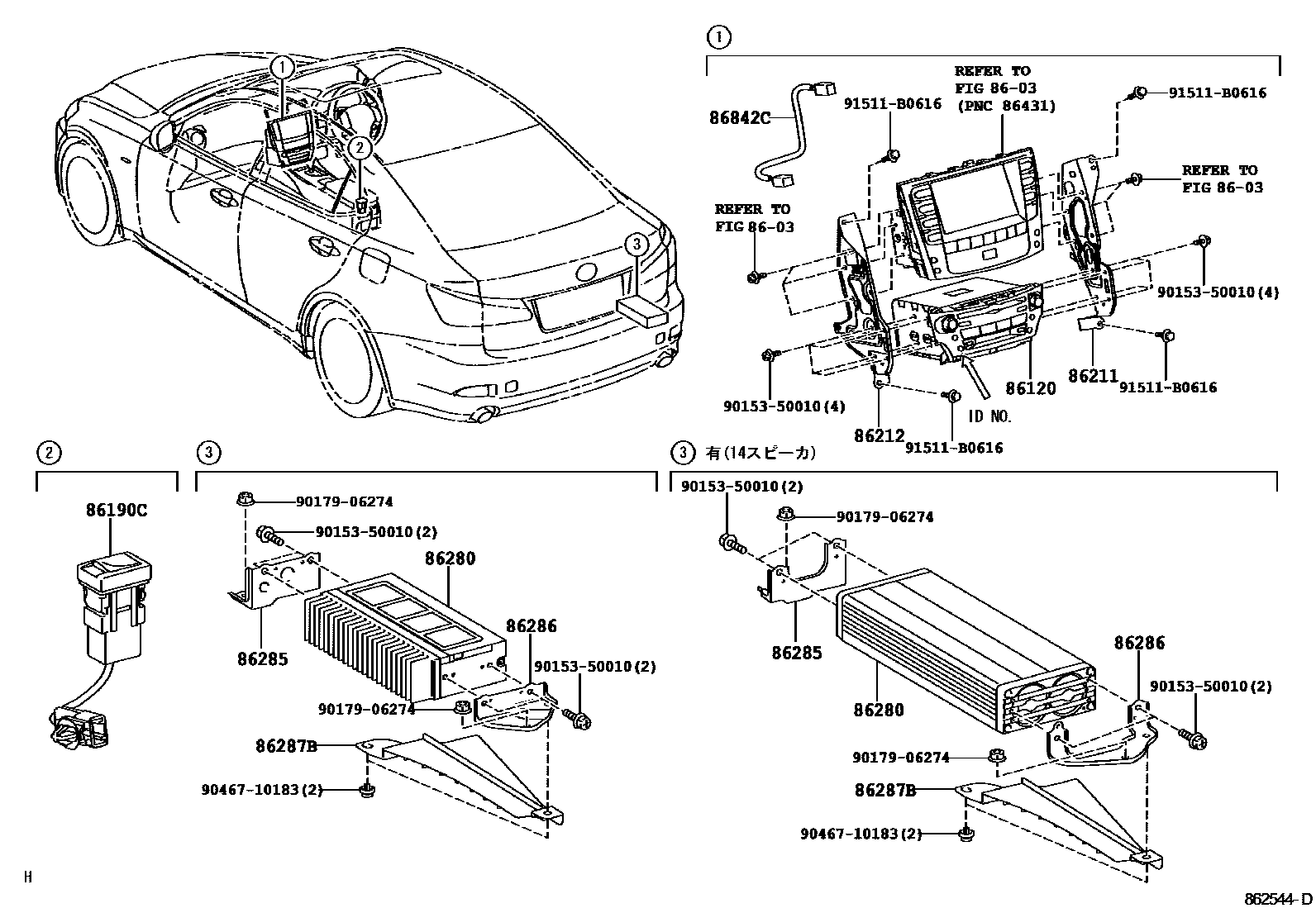

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1������

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86120-53280iGSE2#200508-200808

main86120-53540iGSE2#200808-200908

main86120-53E10iGSE2#201008-201208

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-53020iGSE2#200508-200808

main86190-53030iGSE2#200808-200907

main86190-53040iGSE2#200908-201008

86211BRACKET, RADIO, NO.1

main86211-53020iGSE2#200508-200808

main86211-53030iGSE2#200808-201008

main86211-53070iGSE2#201208-201304

86212BRACKET, RADIO, NO.2

main86212-53020iGSE2#200508-200808

main86212-53030iGSE2#201008-201208

main86212-53070iGSE2#201208-201304

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-53150supersedes 86280-53170iGSE20,25; GSE21201008-201208

main86280-0W360supersedes 86280-53110iGSE2#200808-200908

main86280-0W740supersedes 86280-53210iGSE2#201208

main86280-0W790supersedes 86280-53150iGSE2#200908-201008

main86280-53170iGSE20,25201001-201007

86285BRACKET, AMPLIFIER, NO.1

main86285-53050iGSE2#200808-200908

main86285-53070iGSE2#201008-201208

86286BRACKET, AMPLIFIER, NO.2

main86286-53050supersedes 86286-53090iGSE2#200508-200808

main86286-53080supersedes 86286-53090iGSE2#200908-201008

86287BCOVER, AMPLIFIER

main86287-53010iGSE2#200508-200808

86842CWIRE, NAVIGATION

main86842-30170iGSE2#200508-200808

9015350010

main90153-50010

9017906274

main90179-06274

9046710183

main90467-10183

91511B0616

main91511-B0616

14 parts on this diagram · 4 diagrams in section
