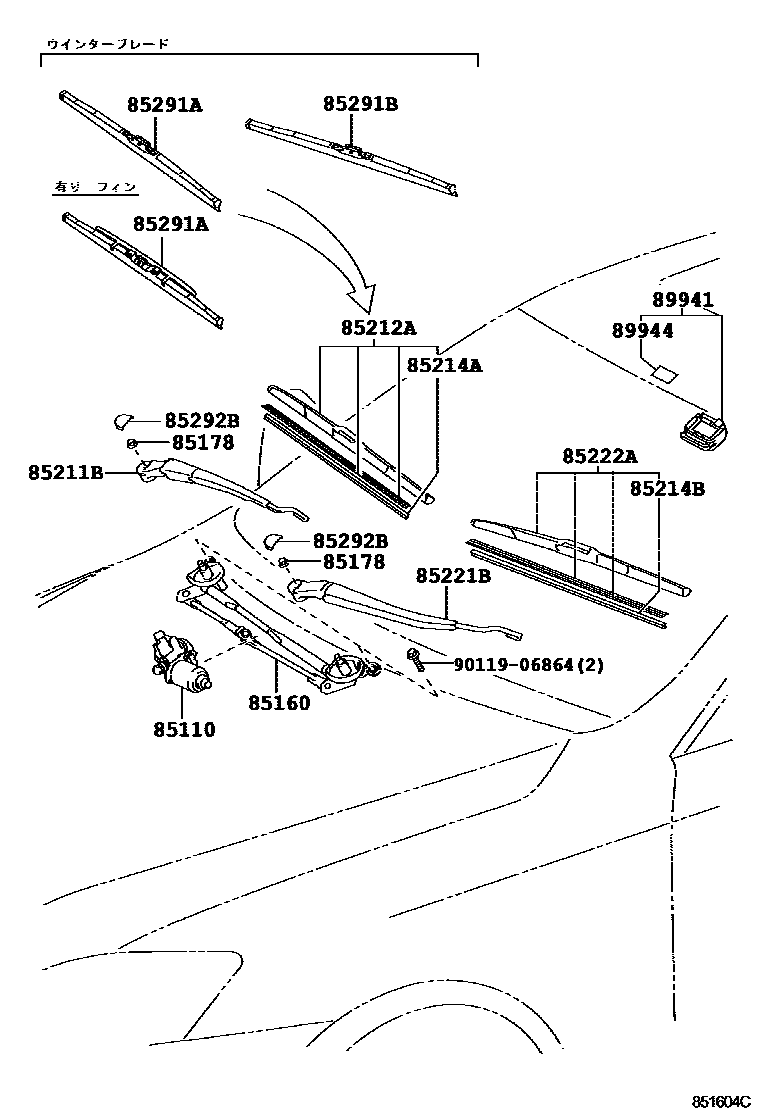

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-52270iGSE2#200508-200804

main85110-60370iGSE2#200805-200808

85160LINK ASSY, WINDSHIELD WIPER

main85150-53040iGSE2#200508-200808

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iGSE2#200808-201008

main90182-10006×2iGSE2#201107

85211BARM, FRONT WIPER, RH

main85211-53050iGSE2#200508-200808

85212ABLADE, FR WIPER, RH

main85212-53070iGSE2#200508-200808

85214ARUBBER, WIPER, RH

main85214-53080iGSE2#201008

85214BRUBBER, WIPER, LH

main85214-53090iGSE2#200508-200808

85221BARM, FRONT WIPER, LH

main85221-53060iGSE2#200508-200808

85222ABLADE, FR WIPER, LH

main85222-53060iGSE2#200508-200808

85291ABLADE, FRONT WIPER, WINTER, RH

main85291-35060iGSE2#200508-200808

main85291-53050iGSE2#200808-201008

85291BBLADE, FRONT WIPER, WINTER, LH

main85291-33060iGSE2#201008-201304

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iGSE2#200508-200808

89941SENSOR, RAIN

main89941-53010iGSE2#; GSE20,25200508-200708

main89941-53011iGSE2#; GSE20,25200708-200808

main89941-53012iGSE2#; GSE20,25200808-200908

main89941-53020iGSE2#; GSE20,25200908-201008

89944TAPE, RAIN SENSOR

main89944-30020iGSE20,25; GSE21201008

main89944-50011iGSE2#; GSE20,25200508-200707

9011906864

main90119-06864

15 parts on this diagram · 1 diagram in section
