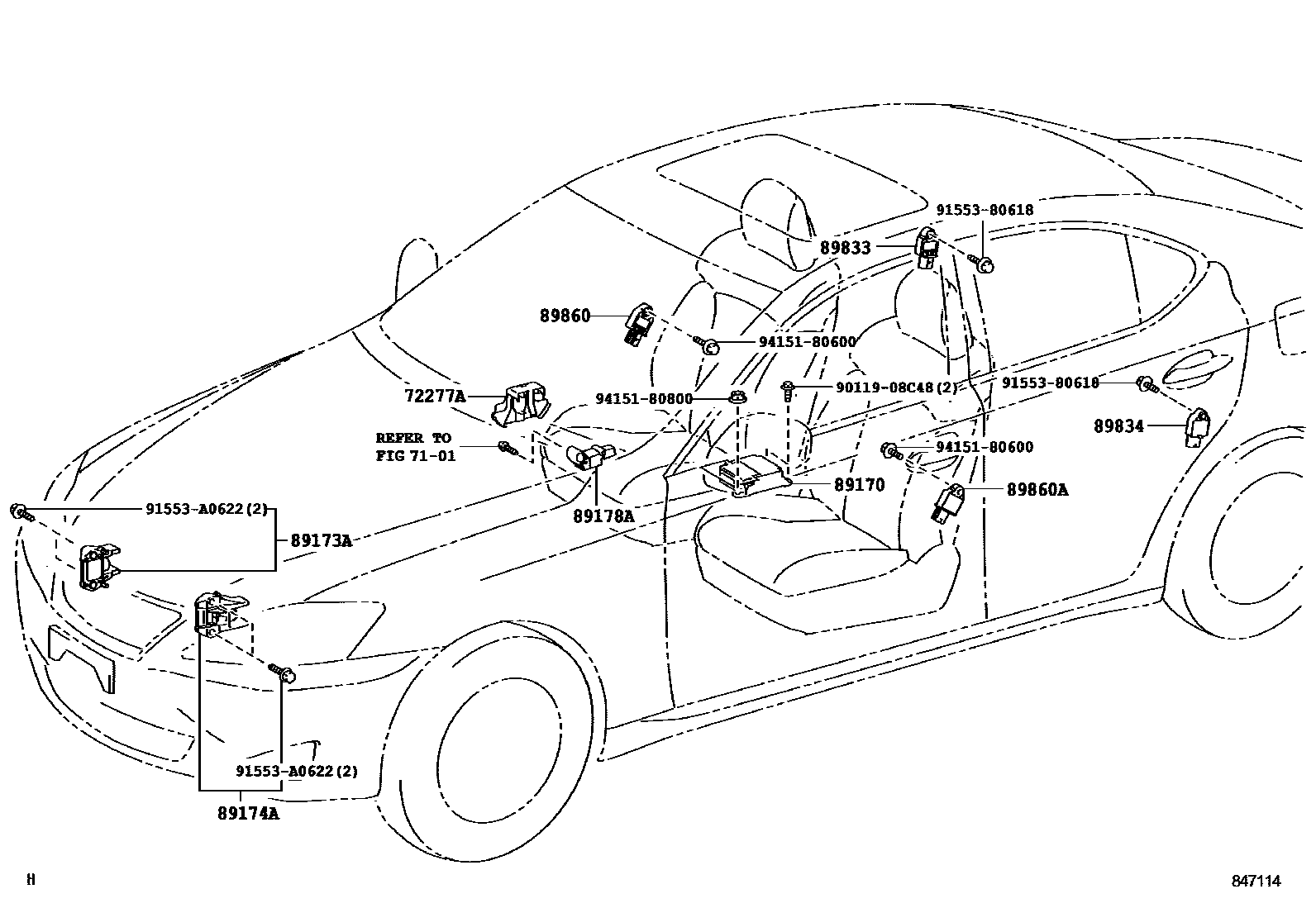

AIR BAG

7101FRONT SEAT & SEAT TRACK

→ Go to FIG 71-01

72277APROTECTOR, SEAT SLIDE POSITION SENSOR

main72277-33010iGSE20201008-201208

main72277-33021iGSE2#200508-201008

89170SENSOR ASSY, AIRBAG

main89170-53090iGSE2#200508-201008

89173ASENSOR, AIRBAG, FRONT RH

main89173-59245iGSE2#200508-201008

89174ASENSOR, AIRBAG, FRONT LH

main89173-59245iGSE2#200508-201008

89178ASENSOR, SEAT POSITION AIRBAG

main89178-33040iGSE20201008-201208

main89178-33050iGSE21,25200508-201008

89833SENSOR, AIRBAG, REAR RH

main89831-0W040iGSE2#200508-200707

main89831-22020iGSE2#200708-201008

89834SENSOR, AIRBAG, REAR LH

main89831-0W040iGSE2#200508-200707

main89831-22020iGSE2#200708-201008

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-02020iGSE2#200508-200707

main89831-53010iGSE2#200708-201008

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-02020iGSE2#200508-200707

main89831-53010iGSE2#200708-201008

9011908C48

main90119-08C48

9155380618

main91553-80618

91553A0622

main91553-A0622

9415180600

main94151-80600

9415180800

main94151-80800

15 parts on this diagram · 1 diagram in section
