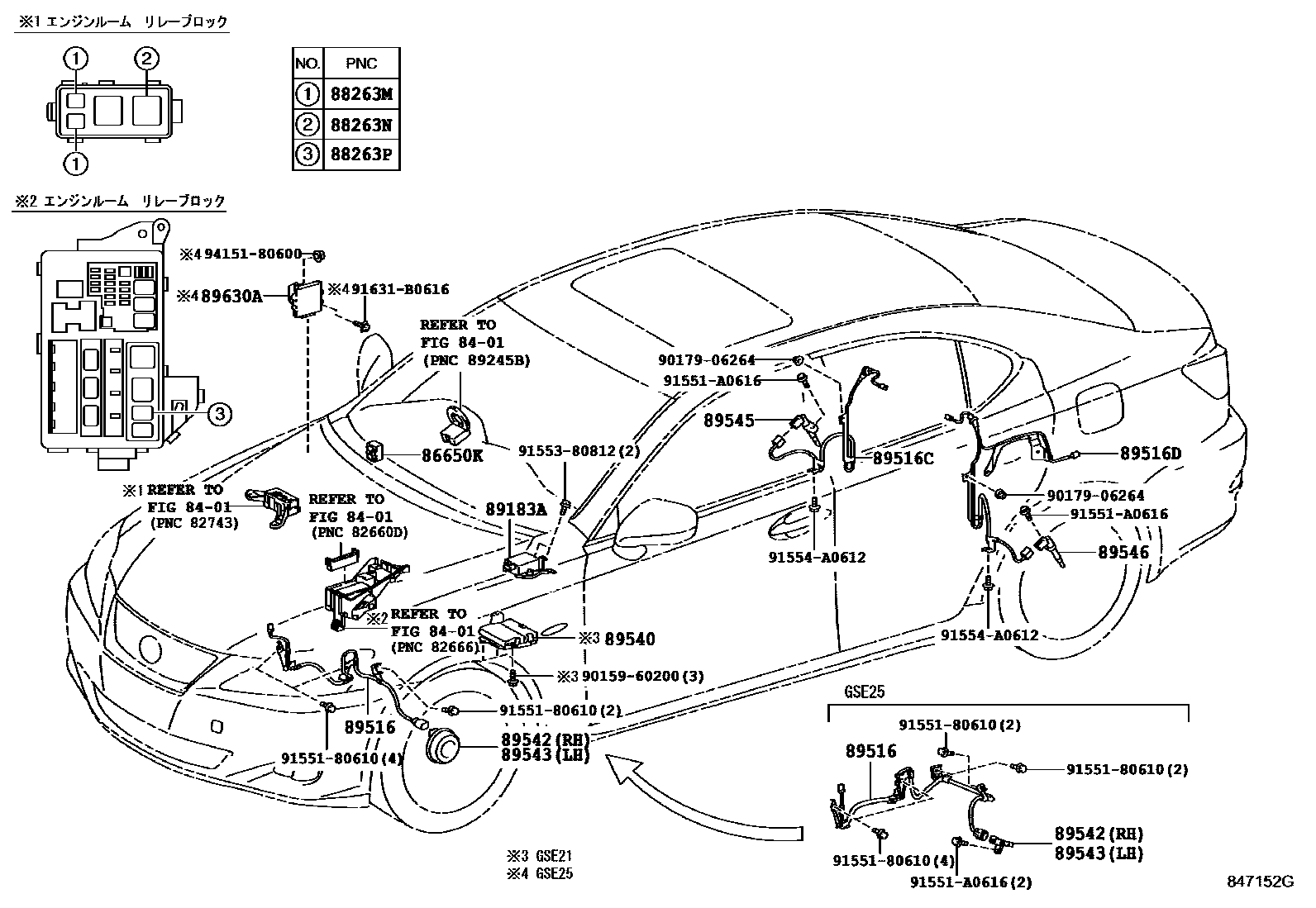

ABS & VSC

0001 1 0002 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86652-48010iGSE2#200508-200708

main86652-50010iGSE2#200708-200808

88263MRELAY, ABS SOLENOID

main88263-32070iGSE20,25; GSE21200508-200808

88263NRELAY, ABS MOTOR

main88263-21010iGSE2#200508-200808

88263PRELAY, STOP LAMP CONTROL

main90987-04004iGSE2#200508-200808

89183ASENSOR, YAWRATE

main89180-22020iGSE2#200508-200808

main89180-53010iGSE2#200808-200907

main89180-53030iGSE2#200908-201008

89516WIRE, SKID CONTROL SENSOR

main89516-30020iGSE20,21201008-201203

main89516-30030iGSE20,21200508-200808

main89516-30040iGSE25201008-201203

main89516-30050iGSE25201008-201304

main89516-30150iGSE20,21201204-201302

main89516-30190iGSE25201204-201302

main89516-53060iGSE20,21201303-201304

main89516-53070iGSE25201303-201304

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-22020iGSE2#200508-200808

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-22040iGSE2#200808-201008

main89516-22010iGSE20200508-200708

89540COMPUTER ASSY, SKID CONTROL

main89540-53240supersedes 89540-53231iGSE21200508-200509

main89540-53241supersedes 89540-53231iGSE21200510-200606

main89540-53280supersedes 89540-53270iGSE21200607-200808

89542SENSOR, SPEED, FRONT RH

main89542-30260iGSE20,21200508-200808

main89542-30270iGSE25201008-201304

89543SENSOR, SPEED, FRONT LH

main89543-30260iGSE20,21200808-201008

main89543-30270iGSE25201008-201304

89545SENSOR, SPEED, REAR RH

main89545-30070iGSE2#200508-200808

89546SENSOR, SPEED, REAR LH

main89546-30070iGSE2#200508-200808

89630ACOMPUTER ASSY, 4WD

main89630-53010iGSE25200508-200808

main89630-53020iGSE25200808-201007

main89630-53030iGSE25201008

9015960200

main90159-60200

9017906264

main90179-06264

9155180610

main91551-80610

91551A0616

main91551-A0616

9155380812

main91553-80812

91554A0612

main91554-A0612

91631B0616

main91631-B0616

9415180600

main94151-80600

23 parts on this diagram · 2 diagrams in section
