SWITCH & RELAY & COMPUTER

0001 1����� & ��������� 0002 1�������� 1/2 0003 1�������� 2/2 0004 1��� 0005 1������������ 1/2 0006 1������������ 1/2 0007 1������������ 2/2 0008 1������� 0009 1���,���,��� & ������� 0010 1���,���,��� & �������

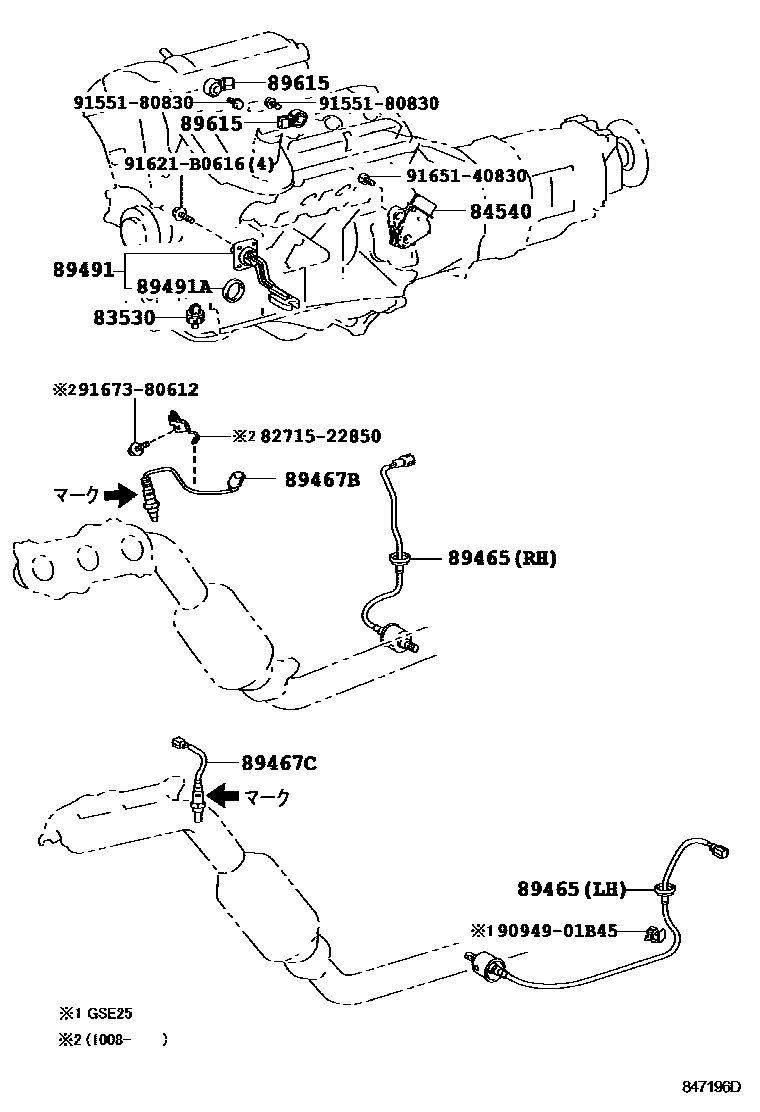

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iGSE2#200508-201008

main83530-28020iGSE2#201008

main83530-60020iGSE2#201008

84540SWITCH ASSY, NEUTRAL START

main84540-71010iGSE2#200508-201304

89465SENSOR, OXYGEN

main89465-30730iGSE20,21200508-201008

main89465-30730iGSE25200508-201008

main89465-53230iGSE25200508-201008

89467BSENSOR, AIR FUEL RATIO

main89467-22050iGSE2#201008

main89467-30010iGSE20200508-200806

main89467-30020iGSE25200508-200803

main89467-30040iGSE25200802-201008

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-22030iGSE20,21201008

main89467-22040iGSE25201008

main89467-30010iGSE21200508-200806

main89467-30030iGSE2#200802-201008

89491SENSOR, ENGINE OIL LEVEL

main89491-30060iGSE20,21200508-201108

main89491-30061iGSE20,21201109

main89491-30070iGSE25200508-201108

main89491-30071iGSE25201109

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iGSE2#200508-201008

89615SENSOR, KNOCK CONTROL

main89615-20090iGSE2#200508-201008

8271522850BRACKET,WIRING HARNESS CLAMP

main82715-22850

9094901B45

main90949-01B45

9155180830

main91551-80830

91621B0616

main91621-B0616

9165140830

main91651-40830

9167380612

main91673-80612

14 parts on this diagram · 10 diagrams in section
