WIRING & CLAMP

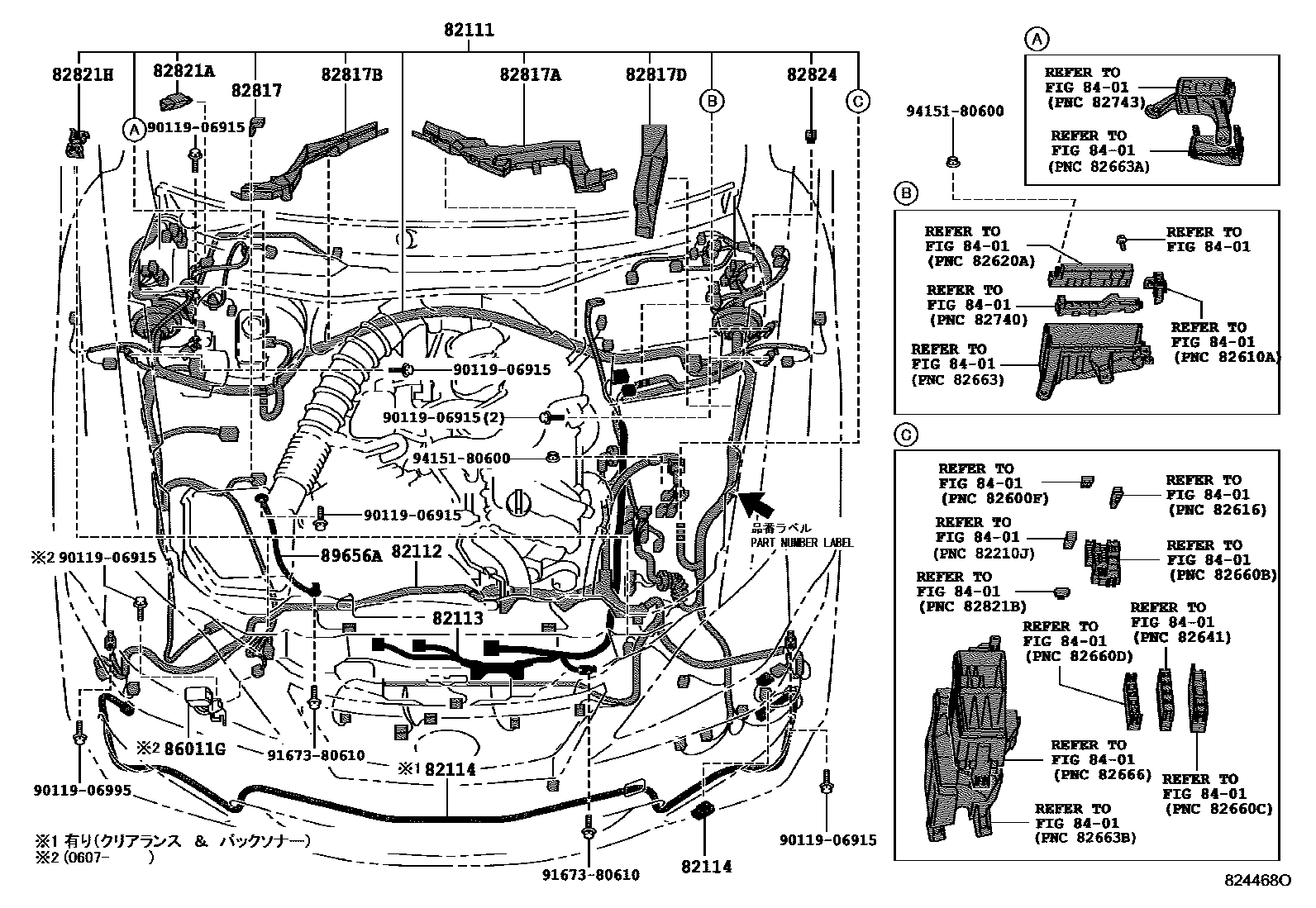

Parts diagram
82111WIRE, ENGINE ROOM MAIN
main82111-53B30i200508-200607
main82111-53B31i200607-200708
main82111-53B32i200708-200808
main82111-53B33i200808-200908
main82111-53B34i200908-201008
main82111-53B35i201008-201208
main82111-53B36i201208
main82111-53B50i200508-200607
main82111-53B51i200607-200708
main82111-53B52i200708-200808
main82111-53B53i200808-200908
main82111-53B54i200908-201008
main82111-53B55i201008-201208
main82111-53B56i201208
main82111-53B60i200508-200607
main82111-53B61i200607-200708
main82111-53B62i200708-200808
main82111-53B63i200808-200908
main82111-53B64i200908-201008
main82111-53B65i201008-201208
main82111-53B66i201208
main82111-53B90i200508-200607
main82111-53B91i200607-200708
main82111-53F30i200908-201008
main82111-53F40i200908-201008
82112WIRE, ENGINE ROOM, NO.2
main82112-53020i200508-200808
main82112-53021i200808-201008
main82112-53022i201008
main82112-53040i200508-200808
main82112-53041i200808-201008
main82112-53042i201008
82113WIRE, ENGINE ROOM, NO.3
main82113-53010i200508-201008
main82113-53030i200508-201008
82114WIRE, ENGINE ROOM, NO.4
main82114-53010i200508-201304
82817PROTECTOR, WIRING HARNESS, NO.1
main82817-12860i200508-201008
82817APROTECTOR, WIRING HARNESS, NO.2
main82817-53150i200508-201008
82817BPROTECTOR, WIRING HARNESS, NO.3
main82817-30A20i200508-201008
82817DPROTECTOR, WIRING HARNESS, NO.5
main82817-53190i200508-201008
82821ACOVER, CONNECTOR
main82821-22120i200508-201008
82821HCOVER, CONNECTOR
main82821-30650i200508-201008
82824CONNECTOR, WIRING HARNESS
main82824-30130i200508-201008
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
86011GCONDENSER
main86516-53010i200607-201008
89656AWIRE, POWER STEERING EARTH
main89656-30010i200508-201008
main89656-30020i200508-201008
9011906915
main90119-06915
9011906995
main90119-06995
9167380610
main91673-80610
9415180600
main94151-80600

18 parts on this diagram · 13 diagrams in section
