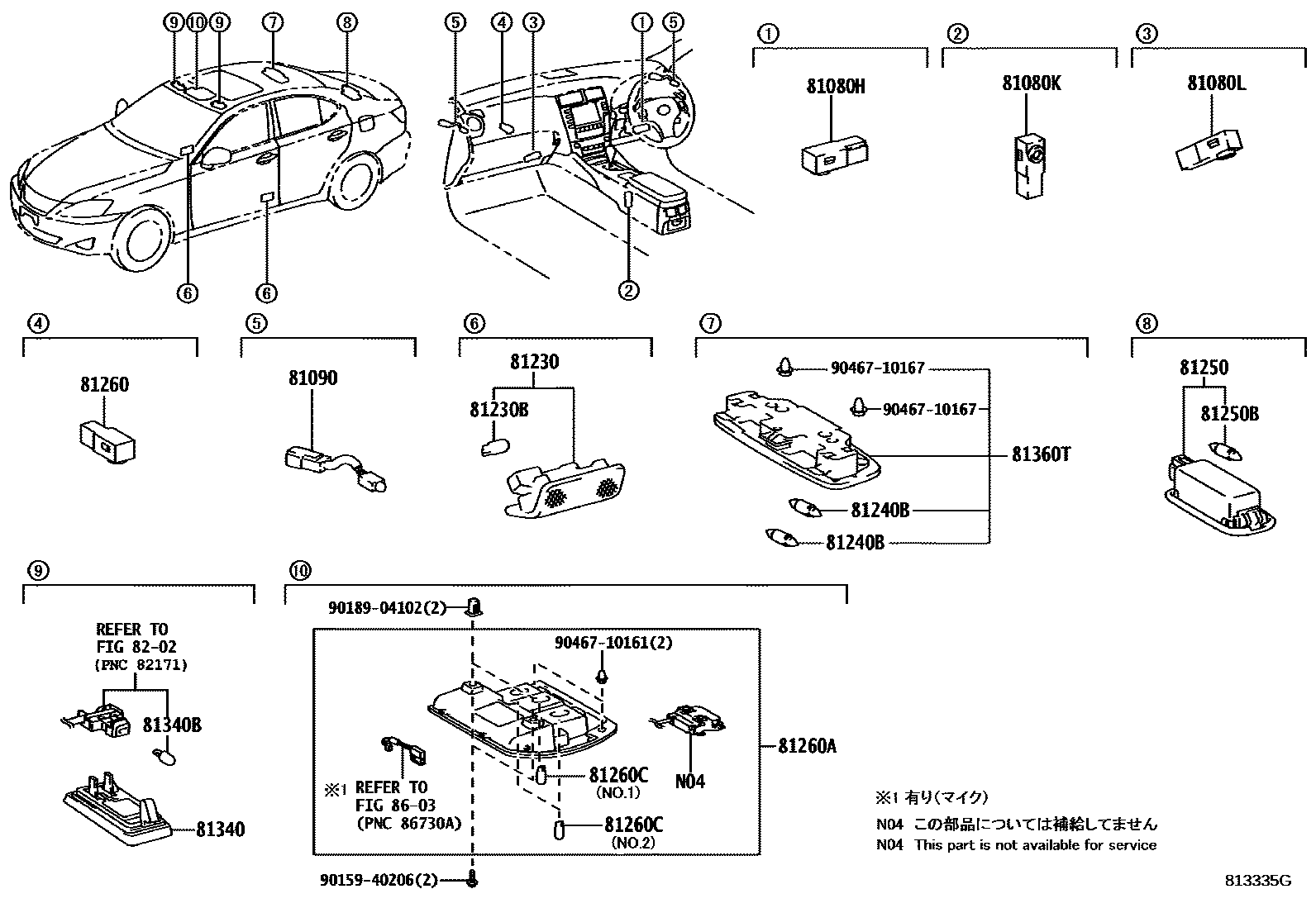

INTERIOR LAMP

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-22040iGSE2#200508-201304

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-22040iGSE2#200508-201304

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-22040iGSE2#200508-201304

81090LAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81090-53010iGSE2#200508-200609

main81090-53011iGSE2#200609-201304

81230LAMP ASSY, COURTESY

main81230-47010iGSE2#201008

main81230-53020iGSE2#200508-201008

81230BBULB(FOR COURTESY LAMP)

main90981-12010iGSE2#200508-201304

81240BBULB, ROOM LAMP, NO.1

main90981-14001iGSE2#200508-201304

81250LAMP ASSY, ROOM, NO.2

main81250-48010iGSE2#200508-201008

81250BBULB, ROOM LAMP, NO.2

main99132-13050iGSE2#200508-201304

81260LAMP ASSY, GLOVE BOX

main81080-30010iGSE2#200508-201304

81260ALAMP ASSY, MAP

main81260-53110-A0iGSE2#200508-200604

IVORY,TRIM0#

main81260-53110-B0iGSE2#200508-200604

LT.GRAY,TRIM1#,2#

main81260-53111-A0iGSE2#200605-200808

IVORY,TRIM0#

main81260-53111-B0iGSE2#200605-200808

LT.GRAY,TRIM1#,2#

main81260-53112-A1iGSE2#200808-200809

ECRU,TRIM0#

main81260-53112-B0iGSE2#200808-200809

LT.GRAY,TRIM1#,2#

main81260-53113-A1iGSE2#200809-200903

ECRU,TRIM0#

main81260-53113-B0iGSE2#200809-200903

LT.GRAY,TRIM1#,2#

main81260-53114-A1iGSE2#200904-200908

ECRU,TRIM0#

main81260-53114-B0iGSE2#200904-200908

LT.GRAY,TRIM1#,2#

main81260-53770-A0iGSE2#200908-201304

ECRU,TRIM0#

main81260-53770-B0iGSE2#200908-201304

LT.GRAY,TRIM1#,2#

81260CBULB(FOR MAP LAMP)

main90981-11020iGSE2#200508-201304

main99132-12050iGSE2#200508-201304

81340LAMP ASSY, VANITY

main81340-30100-A0iGSE2#200508-200808

IVORY,TRIM0#

main81340-30100-A5iGSE20,25201008-201208

main81340-30100-A5iGSE2#200808-201208

ECRU,TRIM0#

main81340-30100-A5iGSE21201008-201208

main81340-30100-B0iGSE20,25200508-201208

LT.GRAY,TRIM1#,2#

main81340-30100-B0iGSE21201008-201208

LT.GRAY,TRIM1#,21,23

main81340-30100-B0iGSE20,21200908-201008

LT.GRAY,TRIM1#,20,21,23

main81340-30100-C0iGSE20201008-201208

main81340-30100-C0iGSE20,21200908-201208

BLACK,TRIM22

main81340-30100-C0iGSE21201008-201208

main81340-30110iGSE2#201208

81340BBULB (FOR VANITY LAMP)

main90981-11062iGSE2#200508-201304

81360TLAMP ASSY, SPOT

main81360-53010-A0iGSE2#200508-200808

IVORY,TRIM0#

main81360-53010-A1iGSE2#200808-201304

ECRU,TRIM0#

main81360-53010-B0iGSE21201008-201304

LT.GRAY,TRIM1#,21,23,24

main81360-53010-B0iGSE20200508-201304

LT.GRAY,TRIM1#,2#

main81360-53010-B0iGSE20201008-201304

LT.GRAY,TRIM1#,21,23

main81360-53010-B0iGSE20,21200908-201008

LT.GRAY,TRIM1#,20,21,23

main81360-53010-C0iGSE20,21200908-201304

BLACK,TRIM22

8202WIRING & CLAMP

→ Go to FIG 82-02

8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

9015940206

main90159-40206

9018904102

main90189-04102

9046710161

main90467-10161

9046710167

main90467-10167

21 parts on this diagram · 1 diagram in section
