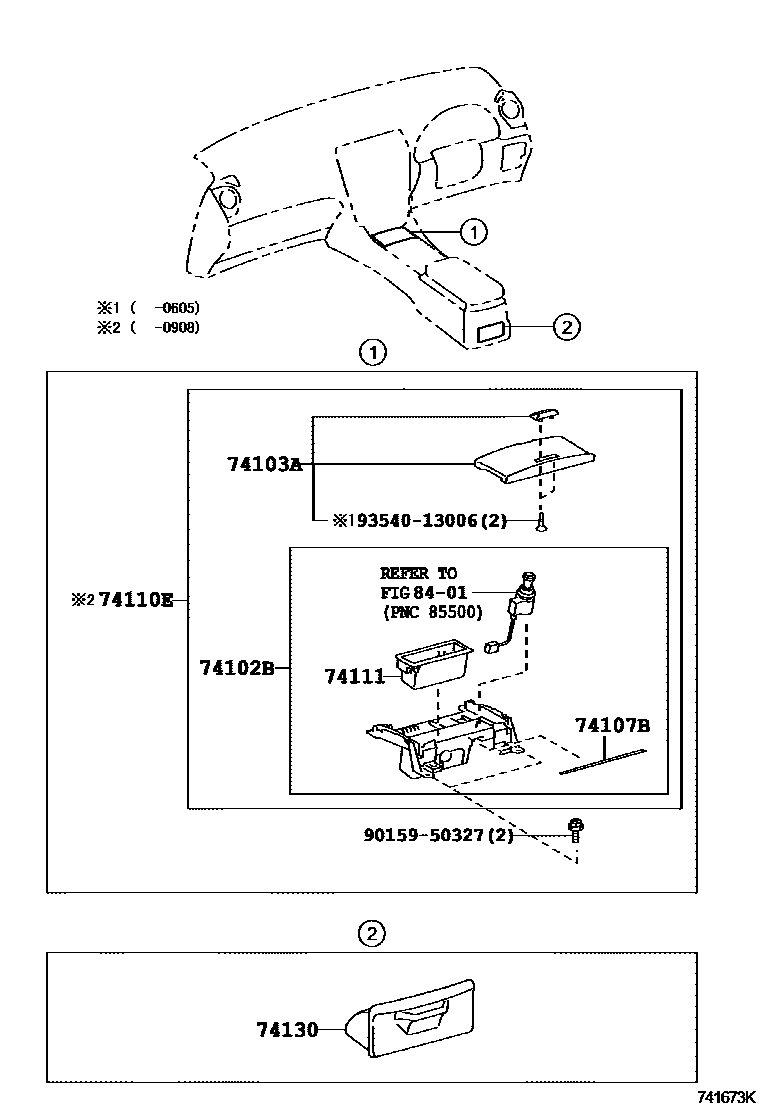

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-53020iGSE2#200908-201008

main74102-53030iGSE2#; GSE20,21201208-201304

74103ADOOR SUB-ASSY, FRONT ASH RECEPTACLE

main74103-53010supersedes 74103-53012iGSE2#200508-200808

main74103-53011supersedes 74103-53012iGSE2#200808-201008

main74103-53020-B0iGSE20,21; GSE25201008-201304

main74103-53020-D1iGSE2#200802-200808

main74103-53020-E0iGSE20,21; GSE25201008-201304

main74103-53020-E1iGSE2#200612-200707

main74103-53020-E2iGSE20,21; GSE25201008-201304

main74103-53030iGSE20,21201008-201304

main74103-53070iGSE20,25201008-201108

74107BSEAL, ASH RECEPTACLE DOOR

main74133-30140iGSE2#200808-201008

74110ERECEPTACLE ASSY, FRONT ASH

main74110-53010iGSE2#200605-200808

main74110-53011iGSE2#200808-200908

main74110-53020-B0iGSE2#200808-200908

main74110-53020-D1iGSE2#200802-200808

main74110-53020-E1iGSE2#200802-200808

main74110-53020-E2iGSE2#200808-200908

74111BOX, FRONT ASH RECEPTACLE

main74111-30190iGSE2#; GSE20,21201008

74130RECEPTACLE ASSY, REAR ASH

main74130-53010-C0iGSE2#200508-200808

BLACK,TRIM0#,1#,2#

main74130-53010-E0iGSE2#201008-201304

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950327

main90159-50327

9354013006

main93540-13006

9 parts on this diagram · 1 diagram in section
