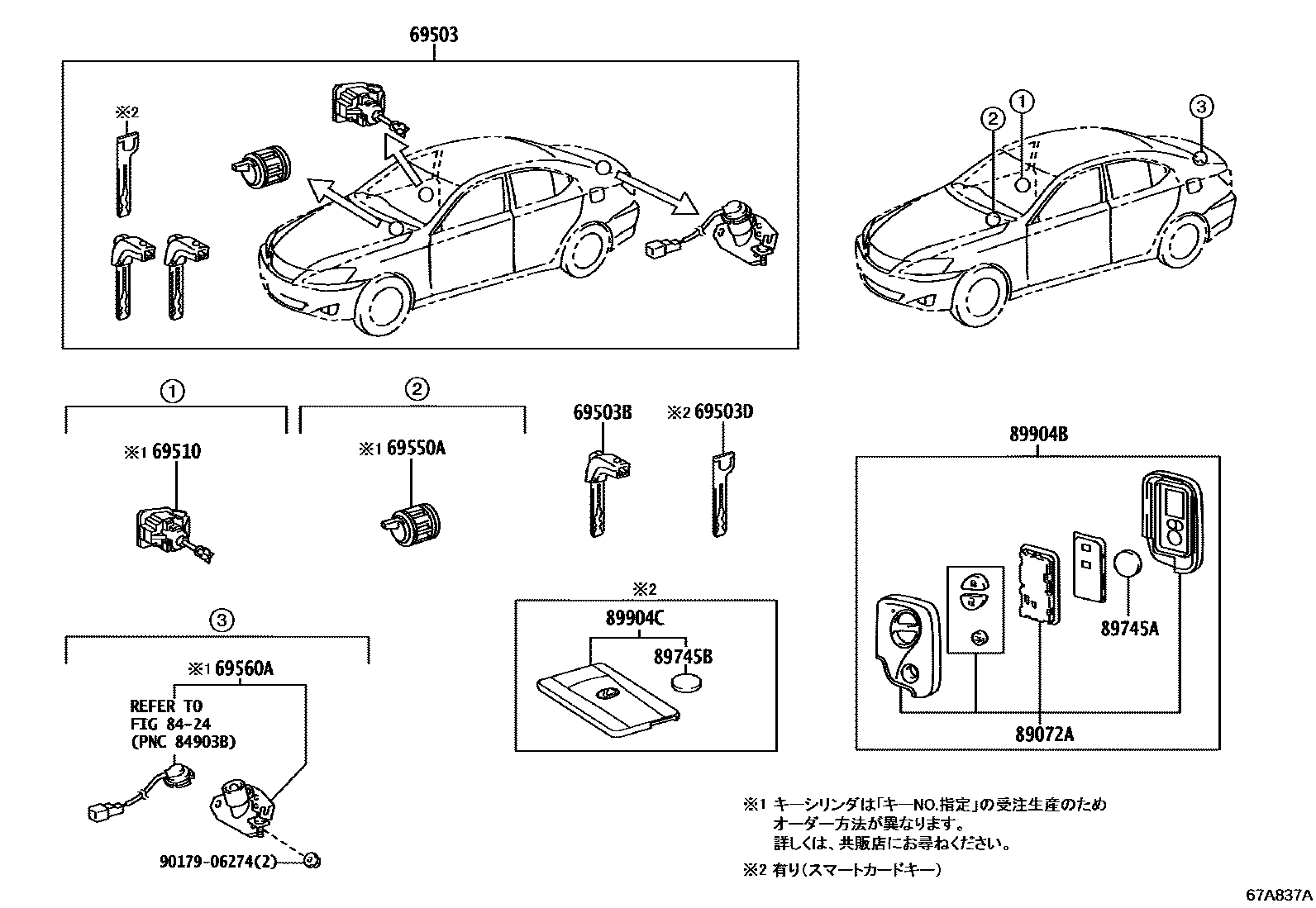

LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-53261iGSE2#200602-200708

main69005-53300iGSE2#200708-200808

main69005-53340supersedes 69005-53300iGSE2#200808-201008

69503BKEY, CUT

main69515-30290iGSE2#200508-200708

main69515-50240×2iGSE2#201008-201304

69503DKEY, CUT(CARD KEY)

main69515-30330iGSE2#200911-201008

main69515-50220iGSE2#200808-200910

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-50100iGSE2#200808-201008

main69510-53030iGSE2#200508-200602

main69510-53031iGSE2#200602-200708

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-30150iGSE2#200508-200708

main69550-50040iGSE2#200808-201008

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-53040iGSE2#200508-200708

main69560-53050iGSE2#200708-200808

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89072AHOUSING SET, DOOR CONTROL TRANSMITTER

main89072-53220iGSE2#200508-200808

main89072-53221×2iGSE2#200808-200809

89745ABATTERY, TRANSMITTER

main89745-52020iGSE2#200508-200808

89745BBATTERY, TRANSMITTER(CARD KEY)

main89745-50030iGSE2#200808-201008

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-30341iGSE2#200508-200808

main89904-50370×2iGSE2#200808-201008

main89904-53490×2iGSE2#201107

89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)

main89904-50470iGSE2#200808-201008

main89904-53500iGSE2#201107

9017906274

main90179-06274

13 parts on this diagram · 1 diagram in section
