FRONT DOOR LOCK & HANDLE

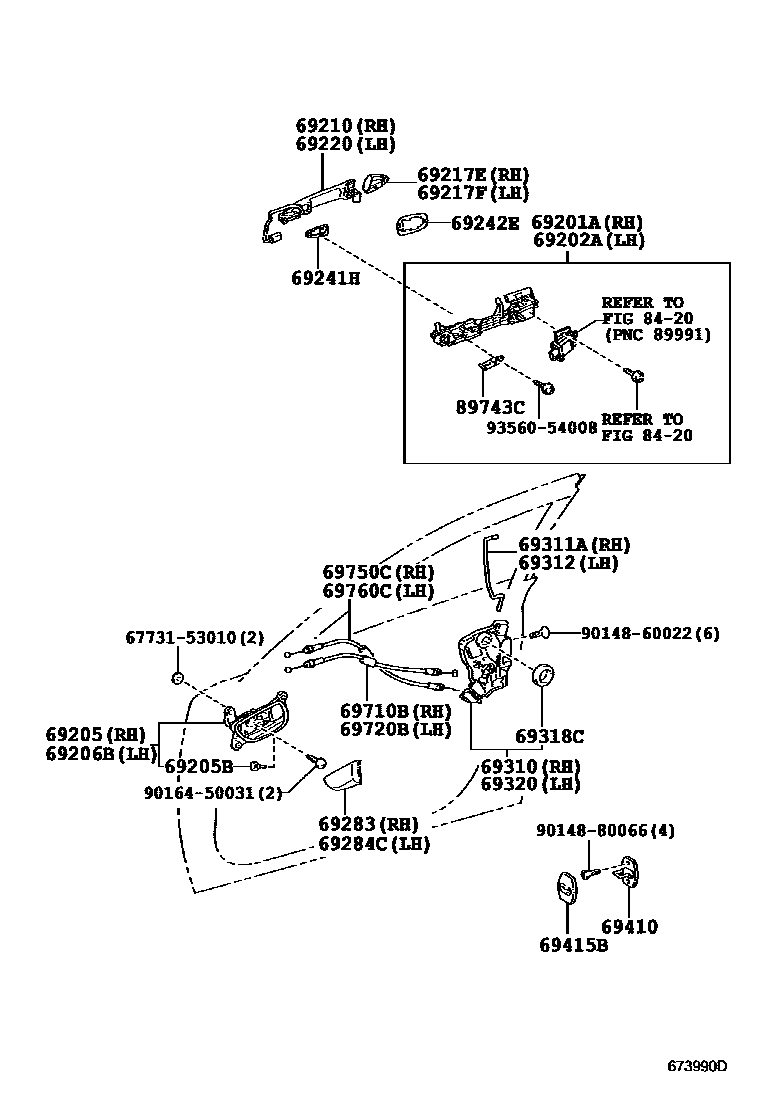

Parts diagram
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-53010i200508-201008
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-53010i200508-201008
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69207-30070-C0i200508-200808
BLACK,TRIM0#,1#,2#
sub69207-30071
main69207-30070-C0i200808-201207
BLACK,TRIM1#,2#
sub69207-30071
main69207-30070-E0i200808-201207
ORCHID BROWN,TRIM0#
sub69207-30071
main69207-30071-C0i201208-201304
BLACK,TRIM1#,2#
main69207-30071-E0i201208-201304
ORCHID BROWN,TRIM0#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014i200508-201008
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69208-30050-C0i200808-201207
BLACK,TRIM1#,2#
sub69208-30051
main69208-30050-C0i200508-200808
BLACK,TRIM0#,1#,2#
sub69208-30051
main69208-30050-E0i200808-201207
ORCHID BROWN,TRIM0#
sub69208-30051
main69208-30051-C0i201208-201304
BLACK,TRIM1#,2#
main69208-30051-E0i201208-201304
ORCHID BROWN,TRIM0#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-53040-A0i200508-200607
WHITE PEARL CS.,062
sub69210-53040
main69210-53040-A1i200508-201108
BLUISH PEARL CS.,074
sub69210-53040
main69210-53040-A2i200607-201304
WHITE PEARL CS.,077
sub69210-53040
main69210-53040-B0i200508-201108
DK.GRAY MC.,1G0
sub69210-53040
main69210-53040-B1i200508-201304
SILVER M.M.,1G1
sub69210-53040
main69210-53040-B4i201108-201304
MERCURY GRAY MC.,1H9
sub69210-53040
main69210-53040-C0i200508-200607
BLACK,202
sub69210-53040
main69210-53040-C1i200607-201304
BLACK,212
sub69210-53040
main69210-53040-C2i201008-201304
STARLIGHT BLACK GF.,217
sub69210-53040
main69210-53040-D0i200508-201304
RED MC.CS.,3R1
sub69210-53040
main69210-53040-D1i200612-200808
SHELL M.M.,3R4
sub69210-53040
main69210-53040-E0i200508-200607
BEIGE ME.,4P7
sub69210-53040
main69210-53040-E1i200607-200808
BEIGE ME.,4T1
sub69210-53040
main69210-53040-E2i200808-201008
BLOND M.M.,4T0
sub69210-53040
main69210-53040-E3i200808-201008
SABLE M.M.,4T5
sub69210-53040
main69210-53040-E4i201108-201304
FIRE AGATE M.M.,4V3
sub69210-53040
main69210-53040-G1i200508-200808
MD.GREEN M.M.,6U3
sub69210-53040
main69210-53040-J0i200508-200607
DARK BLUE MC.,8P8
sub69210-53040
main69210-53040-J2i200508-201008
LT.BLUE ME.,8R6
sub69210-53040
main69210-53040-J3i200607-201008
DK.BLUE MC. CC.,8U0
sub69210-53040
main69210-53040-J4i200908-201304
BLUE ME.,8U1
sub69210-53040
main69210-53040-J5i201008-201304
SILVERY BLUE ME.,8U9
sub69210-53040
main69210-53040-J6i201008-201304
LAPIS LAZULI MC.,8V3
sub69210-53040
main69210-53040-K0i200908-201304
CATTLEYA M.M.,9AL
sub69210-53040
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
main69217-53010-A0i200508-200602
sub69217-53011
main69217-53010-A1i200508-200602
sub69217-53011
main69217-53010-B0i200508-200602
sub69217-53011
main69217-53010-B1i200508-200602
sub69217-53011
main69217-53010-C0i200508-200602
sub69217-53011
main69217-53010-D0i200508-200602
sub69217-53011
main69217-53010-E0i200508-200602
sub69217-53011
main69217-53010-G1i200508-200602
sub69217-53011
main69217-53010-J0i200508-200602
sub69217-53011
main69217-53010-J2i200508-200602
sub69217-53011
main69217-53011-A0i200602-200607
sub69217-53011
main69217-53011-A1i200602-201108
sub69217-53011
main69217-53011-A1i200808-201008
BLUISH PEARL CS.,074
sub69217-53011
main69217-53011-A2i200607-201304
sub69217-53011
main69217-53011-A2i200808-201008
WHITE PEARL CS.,077
sub69217-53011
main69217-53011-B0i200602-201108
sub69217-53011
main69217-53011-B0i200808-201008
DK.GRAY MC.,1G0
sub69217-53011
main69217-53011-B1i200808-201008
SILVER M.M.,1G1
sub69217-53011
main69217-53011-B1i200602-201304
sub69217-53011
main69217-53011-B4i201108-201304
sub69217-53011
main69217-53011-C0i200602-200607
sub69217-53011
main69217-53011-C1i200607-201304
sub69217-53011
main69217-53011-C1i200808-201008
BLACK,212
sub69217-53011
main69217-53011-C2i201008-201304
sub69217-53011
main69217-53011-D0i200602-201304
sub69217-53011
main69217-53011-D0i200808-201008
RED MC.CS.,3R1
sub69217-53011
main69217-53011-D1i200612-200808
sub69217-53011
main69217-53011-E0i200602-200607
sub69217-53011
main69217-53011-E1i200607-200808
sub69217-53011
main69217-53011-E2i200808-201008
BLOND M.M.,4T0
sub69217-53011
main69217-53011-E3i200808-201008
SABLE M.M.,4T5
sub69217-53011
main69217-53011-E4i201108-201304
sub69217-53011
main69217-53011-G1i200602-200808
sub69217-53011
main69217-53011-J0i200602-200607
sub69217-53011
main69217-53011-J2i200808-201008
LT.BLUE ME.,8R6
sub69217-53011
main69217-53011-J2i200602-200808
sub69217-53011
main69217-53011-J3i200607-200808
sub69217-53011
main69217-53011-J3i200808-201008
DK.BLUE MC. CC.,8U0
sub69217-53011
main69217-53011-J4i201008-201304
sub69217-53011
main69217-53011-J4i200908-201008
BLUE ME.,8U1
sub69217-53011
main69217-53011-J5i201008-201304
sub69217-53011
main69217-53011-J6i201008-201304
sub69217-53011
main69217-53011-K0i201008-201304
sub69217-53011
main69217-53011-K0i200908-201008
CATTLEYA M.M.,9AL
sub69217-53011
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
main69218-53010-A0i200508-200602
WHITE PEARL CS.,062
sub69218-53011
main69218-53010-A1i200508-200602
BLUISH PEARL CS.,074
sub69218-53011
main69218-53010-B0i200508-200602
DK.GRAY MC.,1G0
sub69218-53011
main69218-53010-B1i200508-200602
SILVER M.M.,1G1
sub69218-53011
main69218-53010-C0i200508-200602
BLACK,202
sub69218-53011
main69218-53010-D0i200508-200602
RED MC.CS.,3R1
sub69218-53011
main69218-53010-E0i200508-200602
BEIGE ME.,4P7
sub69218-53011
main69218-53010-G0i200508-200602
MD.GREEN M.M.,6U3
sub69218-53011
main69218-53010-J0i200508-200602
DARK BLUE MC.,8P8
sub69218-53011
main69218-53010-J1i200508-200602
LT.BLUE ME.,8R6
sub69218-53011
main69218-53011-A0i200602-200607
WHITE PEARL CS.,062
sub69218-53011
main69218-53011-A1i200602-201108
BLUISH PEARL CS.,074
sub69218-53011
main69218-53011-A2i200607-201304
WHITE PEARL CS.,077
sub69218-53011
main69218-53011-B0i200602-201108
DK.GRAY MC.,1G0
sub69218-53011
main69218-53011-B1i200602-201304
SILVER M.M.,1G1
sub69218-53011
main69218-53011-B4i201108-201304
MERCURY GRAY MC.,1H9
sub69218-53011
main69218-53011-C0i200602-200607
BLACK,202
sub69218-53011
main69218-53011-C1i200607-201304
BLACK,212
sub69218-53011
main69218-53011-C2i201008-201304
STARLIGHT BLACK GF.,217
sub69218-53011
main69218-53011-D0i200602-201304
RED MC.CS.,3R1
sub69218-53011
main69218-53011-D1i200612-200808
SHELL M.M.,3R4
sub69218-53011
main69218-53011-E0i200602-200607
BEIGE ME.,4P7
sub69218-53011
main69218-53011-E1i200607-200808
BEIGE ME.,4T1
sub69218-53011
main69218-53011-E2i200808-201008
BLOND M.M.,4T0
sub69218-53011
main69218-53011-E3i200808-201008
SABLE M.M.,4T5
sub69218-53011
main69218-53011-E4i201108-201304
FIRE AGATE M.M.,4V3
sub69218-53011
main69218-53011-G0i200602-200808
MD.GREEN M.M.,6U3
sub69218-53011
main69218-53011-J0i200602-200607
DARK BLUE MC.,8P8
sub69218-53011
main69218-53011-J1i200602-201008
LT.BLUE ME.,8R6
sub69218-53011
main69218-53011-J3i200607-201008
DK.BLUE MC. CC.,8U0
sub69218-53011
main69218-53011-J4i200908-201304
BLUE ME.,8U1
sub69218-53011
main69218-53011-J5i201008-201304
SILVERY BLUE ME.,8U9
sub69218-53011
main69218-53011-J6i201008-201304
LAPIS LAZULI MC.,8V3
sub69218-53011
main69218-53011-K0i200908-201304
CATTLEYA M.M.,9AL
sub69218-53011
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69220-53040-A0i200508-200607
WHITE PEARL CS.,062
sub69220-53040
main69220-53040-A1i200508-201108
BLUISH PEARL CS.,074
sub69220-53040
main69220-53040-A2i200607-201304
WHITE PEARL CS.,077
sub69220-53040
main69220-53040-B0i200508-201108
DK.GRAY MC.,1G0
sub69220-53040
main69220-53040-B1i200508-201304
SILVER M.M.,1G1
sub69220-53040
main69220-53040-B4i201108-201304
MERCURY GRAY MC.,1H9
sub69220-53040
main69220-53040-C0i200508-200607
BLACK,202
sub69220-53040
main69220-53040-C1i200607-201304
BLACK,212
sub69220-53040
main69220-53040-C2i201008-201304
STARLIGHT BLACK GF.,217
sub69220-53040
main69220-53040-D0i200508-201304
RED MC.CS.,3R1
sub69220-53040
main69220-53040-D1i200612-200808
SHELL M.M.,3R4
sub69220-53040
main69220-53040-E0i200508-200607
BEIGE ME.,4P7
sub69220-53040
main69220-53040-E1i200607-200808
BEIGE ME.,4T1
sub69220-53040
main69220-53040-E2i200808-201008
BLOND M.M.,4T0
sub69220-53040
main69220-53040-E3i200808-201008
SABLE M.M.,4T5
sub69220-53040
main69220-53040-E4i201108-201304
FIRE AGATE M.M.,4V3
sub69220-53040
main69220-53040-G1i200508-200808
MD.GREEN M.M.,6U3
sub69220-53040
main69220-53040-J0i200508-200607
DARK BLUE MC.,8P8
sub69220-53040
main69220-53040-J2i200508-201008
LT.BLUE ME.,8R6
sub69220-53040
main69220-53040-J3i200607-201008
DK.BLUE MC. CC.,8U0
sub69220-53040
main69220-53040-J4i200908-201304
BLUE ME.,8U1
sub69220-53040
main69220-53040-J5i201008-201304
SILVERY BLUE ME.,8U9
sub69220-53040
main69220-53040-J6i201008-201304
LAPIS LAZULI MC.,8V3
sub69220-53040
main69220-53040-K0i200908-201304
CATTLEYA M.M.,9AL
sub69220-53040
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-53010i200508-201008
main69242-53010i200508-201008
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69241-50030i200607-201008
main69241-53020i200508-200602
sub69241-53021
main69241-53021i200602-200606
sub69241-50030
main69242-50030i200607-201008
main69242-53020i200508-200602
sub69242-53021
main69242-53021i200602-200606
sub69242-50030
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30050-C0i200508-200808
BLACK,TRIM0#,1#,2#
sub69283-30050
main69283-30050-C0i200808-201304
BLACK,TRIM1#,2#
sub69283-30050
main69283-30050-E0i200808-201304
ORCHID BROWN,TRIM0#
sub69283-30050
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-30050-C0i200808-201304
BLACK,TRIM1#,2#
sub69284-30050
main69284-30050-C0i200508-200808
BLACK,TRIM0#,1#,2#
sub69284-30050
main69284-30050-E0i200808-201304
ORCHID BROWN,TRIM0#
sub69284-30050
69310LOCK ASSY, FRONT DOOR, RH
main69030-3A130i200508-201008
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-53040i200508-201008
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-53040i200508-201008
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200508-201008
69320LOCK ASSY, FRONT DOOR, LH
main69040-30A00i200508-201008
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-30060i200508-201008
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-33010i200508-201212
main69415-60020i201301-201304
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
main69710-53030i200508-200702
sub69710-53040
main69710-53040i200703-201008
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
main69710-53030i200508-200702
sub69710-53040
main69710-53040i200703-201008
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
main69750-53040i200508-200702
sub69750-53050
main69750-53050i200703-201008
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
main69750-53040i200508-200702
sub69750-53050
main69750-53050i200703-201008
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
main89743-53010i200508-201304
main89743-53020i200508-201304
6773153010SPACER, SIDE TRIM, NO.1
main67731-53010
9014860022
main90148-60022
9014880066
main90148-80066
9016450031
main90164-50031
9356054008
main93560-54008

31 parts on this diagram · 1 diagram in section

FRONT DOOR LOCK & HANDLE — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
