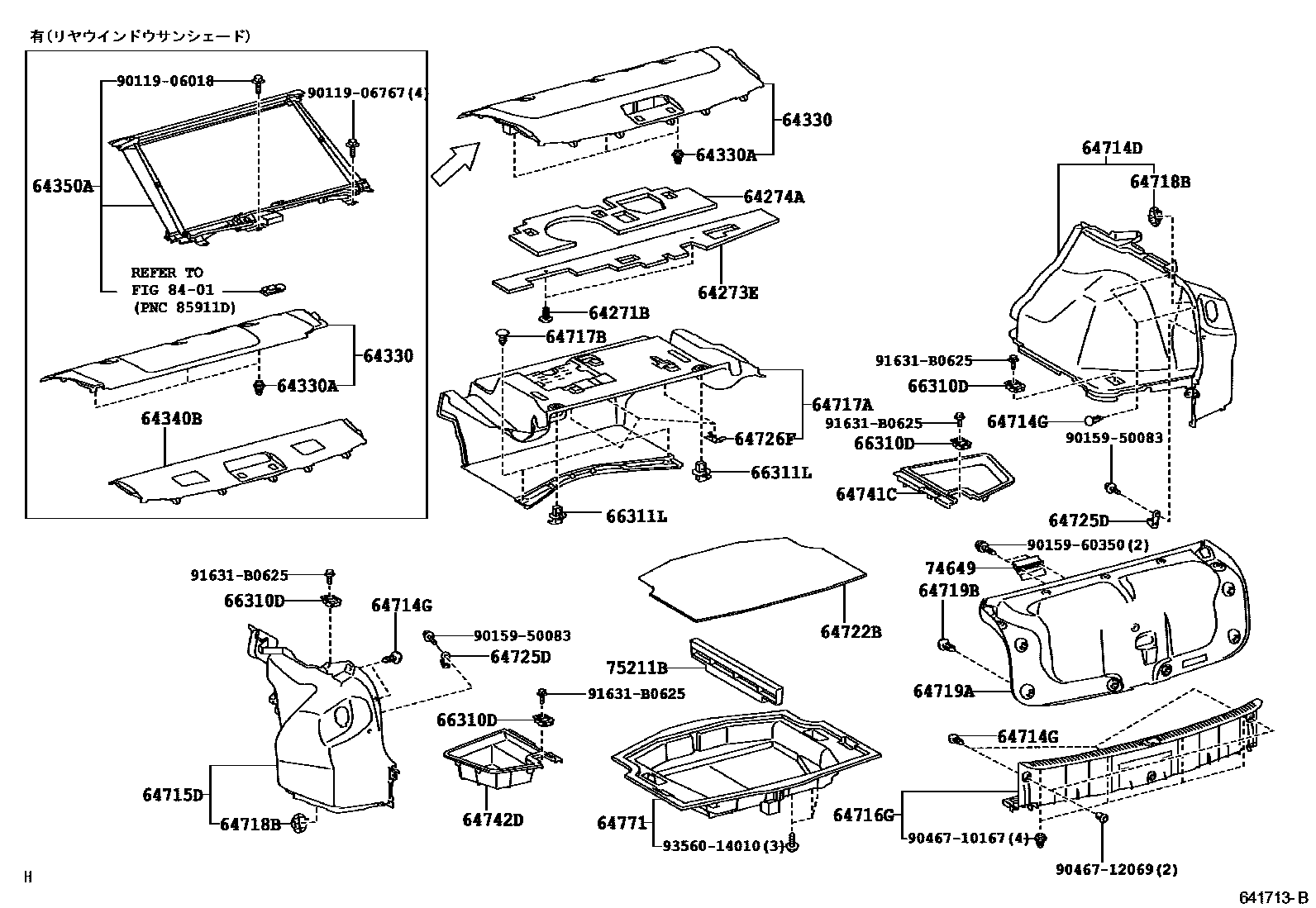

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
64271BCLIP(FOR ROOM PARTITION BOARD)
BLACK,TRIM0#,1#,2#
64273EPAD, ROOM PARTITION
64274APAD, ROOM PARTITION, NO.2
64330PANEL ASSY, PACKAGE TRAY TRIM
ORCHID BROWN,TRIM0#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
64350ASHADE ASSY, REAR WINDOW
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
BLACK,TRIM0#,1#,2#
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM0#,1#,2#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK,TRIM0#,1#,2#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
BLACK,TRIM0#,1#,2#
64722BCOVER, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,1#,2#
64741CBOX, DECK SIDE TRIM, RH
BLACK,TRIM0#,1#,2#
64742DBOX, DECK SIDE TRIM, LH
BLACK,TRIM0#,1#,2#
64771COVER, SPARE WHEEL
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
66310DHOOK ASSY, ROPE
BLACK,TRIM0#,1#,2#
66311LHOOK,ROPE
BLACK,TRIM0#,1#,2#
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
BLACK
75211BPANEL, TOOL BOX
BLACK,TRIM0#,1#,2#
8401SWITCH & RELAY & COMPUTER
9011906018
main90119-06018
9011906767
main90119-06767
9015950083
main90159-50083
9015960350
main90159-60350
9046710167
main90467-10167
9046712069
main90467-12069
91631B0625
main91631-B0625
9356014010
main93560-14010
35 parts on this diagram · 1 diagram in section
