REAR BUMPER & BUMPER STAY

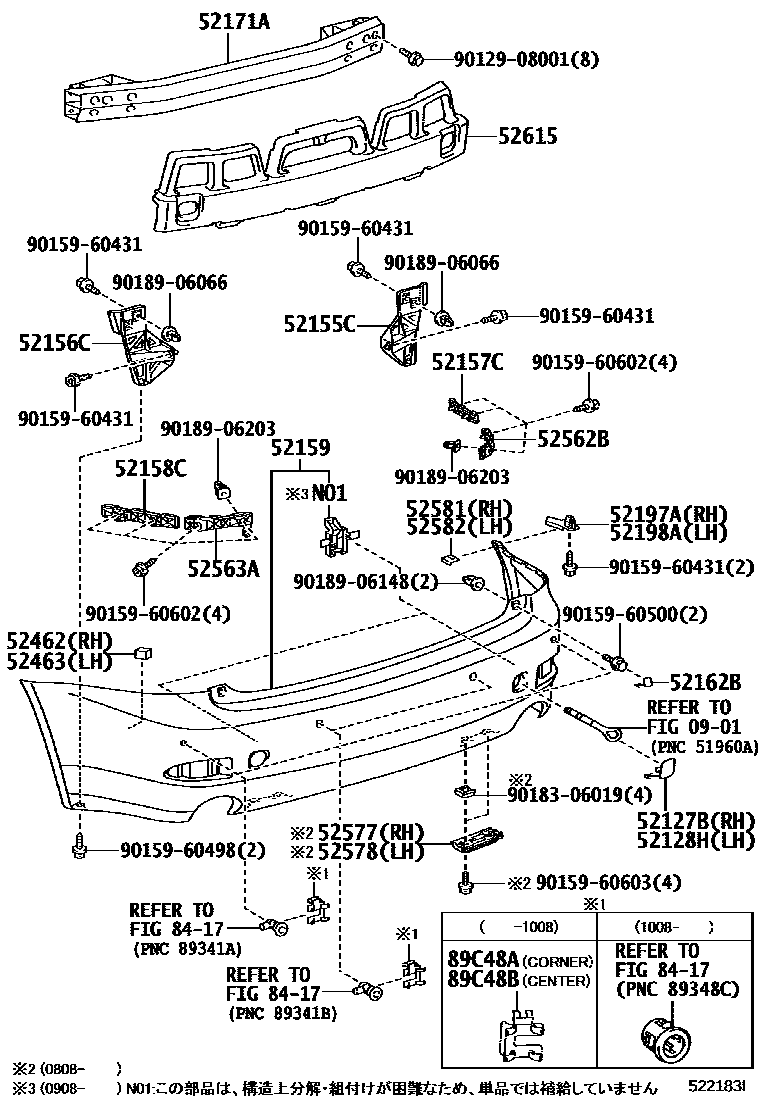

Parts diagram
0901STANDARD TOOL
→ Go to FIG 09-01
52127BCOVER, REAR BUMPER HOLE, RH
main52161-53010-A0i200508-200607
WHITE PEARL CS.,062
main52161-53010-A1i200508-200808
BLUISH PEARL CS.,074
main52161-53010-A2i200607-200808
WHITE PEARL CS.,077
main52161-53010-B0i200508-200808
DK.GRAY MC.,1G0
main52161-53010-B1i200508-200808
SILVER M.M.,1G1
main52161-53010-C0i200508-200607
BLACK,202
main52161-53010-C1i200607-200808
BLACK,212
main52161-53010-D0i200508-200808
RED MC.CS.,3R1
main52161-53010-D1i200612-200808
SHELL M.M.,3R4
main52161-53010-E0i200508-200607
BEIGE ME.,4P7
main52161-53010-E1i200607-200808
BEIGE ME.,4T1
main52161-53010-G0i200508-200808
MD.GREEN M.M.,6U3
main52161-53010-J0i200508-200607
DARK BLUE MC.,8P8
main52161-53010-J1i200508-200808
LT.BLUE ME.,8R6
main52161-53010-J2i200607-200808
DK.BLUE MC. CC.,8U0
main52161-53030-A0i200908-201008
BLUISH PEARL CS.,074
main52161-53030-A1i200808-200908
WHITE PEARL CS.,077
main52161-53030-B0i201008-201108
DK.GRAY MC.,1G0
main52161-53030-B2i200808-200908
SILVER M.M.,1G1
main52161-53030-B3i201108-201304
MERCURY GRAY MC.,1H9
main52161-53030-C0i200908-201008
BLACK,212
main52161-53030-C1i201008-201304
STARLIGHT BLACK GF.,217
main52161-53030-D0i200808-200908
RED MC.CS.,3R1
main52161-53030-E0i200908-201008
BLOND M.M.,4T0
main52161-53030-E1i200808-200908
SABLE M.M.,4T5
main52161-53030-E2i201108-201304
FIRE AGATE M.M.,4V3
main52161-53030-J0i200808-200908
LT.BLUE ME.,8R6
main52161-53030-J1i200808-200908
DK.BLUE MC. CC.,8U0
main52161-53030-J2i201008-201304
BLUE ME.,8U1
main52161-53030-J3i201008-201304
SILVERY BLUE ME.,8U9
main52161-53030-J4i201008-201304
LAPIS LAZULI MC.,8V3
main52161-53030-K0i201008-201304
CATTLEYA M.M.,9AL
52128HCOVER, REAR BUMPER HOLE, LH
main52162-53010-A0i200508-200607
WHITE PEARL CS.,062
main52162-53010-A1i200508-200808
BLUISH PEARL CS.,074
main52162-53010-A2i200607-200808
WHITE PEARL CS.,077
main52162-53010-B0i200508-200808
DK.GRAY MC.,1G0
main52162-53010-B1i200508-200808
SILVER M.M.,1G1
main52162-53010-C0i200508-200607
BLACK,202
main52162-53010-C1i200607-200808
BLACK,212
main52162-53010-D0i200508-200808
RED MC.CS.,3R1
main52162-53010-D1i200612-200808
SHELL M.M.,3R4
main52162-53010-E0i200508-200607
BEIGE ME.,4P7
main52162-53010-E1i200607-200808
BEIGE ME.,4T1
main52162-53010-G0i200508-200808
MD.GREEN M.M.,6U3
main52162-53010-J0i200508-200607
DARK BLUE MC.,8P8
main52162-53010-J1i200508-200808
LT.BLUE ME.,8R6
main52162-53010-J2i200607-200808
DK.BLUE MC. CC.,8U0
main52162-53040-A0i200908-201008
BLUISH PEARL CS.,074
main52162-53040-A1i200908-201008
WHITE PEARL CS.,077
main52162-53040-B0i201008-201108
DK.GRAY MC.,1G0
main52162-53040-B2i200908-201008
SILVER M.M.,1G1
main52162-53040-B3i201108-201304
MERCURY GRAY MC.,1H9
main52162-53040-C0i201008-201304
BLACK,212
main52162-53040-C1i201008-201304
STARLIGHT BLACK GF.,217
main52162-53040-D0i200808-200908
RED MC.CS.,3R1
main52162-53040-E0i200808-200908
BLOND M.M.,4T0
main52162-53040-E1i200908-201008
SABLE M.M.,4T5
main52162-53040-E2i201108-201304
FIRE AGATE M.M.,4V3
main52162-53040-J0i200808-200908
LT.BLUE ME.,8R6
main52162-53040-J1i200808-200908
DK.BLUE MC. CC.,8U0
main52162-53040-J2i201008-201304
BLUE ME.,8U1
main52162-53040-J3i201008-201304
SILVERY BLUE ME.,8U9
main52162-53040-J4i201008-201304
LAPIS LAZULI MC.,8V3
main52162-53040-K0i200908-201008
CATTLEYA M.M.,9AL
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
main52155-53040i200508-200808
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
main52156-53010i200508-200808
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
main52157-53040i200508-200808
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
main52158-53040i200508-200808
52159COVER, REAR BUMPER
main52159-53080-A0supersedes 52159-53070-A0i200508-200607
main52159-53080-A1supersedes 52159-53932-A0i200508-200808
main52159-53080-A2supersedes 52159-53070-A2i200607-200808
main52159-53080-B0supersedes 52159-53932-B0i200508-200808
main52159-53080-B1supersedes 52159-53932-B1i200508-200808
main52159-53080-C0supersedes 52159-53070-C0i200508-200607
main52159-53080-C1supersedes 52159-53070-C1i200607-200808
main52159-53080-D0supersedes 52159-53932-D0i200508-200808
main52159-53080-D1supersedes 52159-53070-D1i200612-200808
main52159-53080-E0supersedes 52159-53070-E0i200508-200607
main52159-53080-E1supersedes 52159-53070-E1i200607-200808
main52159-53080-G1supersedes 52159-53070-G1i200508-200808
main52159-53080-J0supersedes 52159-53070-J0i200508-200607
main52159-53080-J2supersedes 52159-53932-J0i200508-200808
main52159-53080-J3supersedes 52159-53070-J3i200607-200808
main52159-53140-A0supersedes 52159-53932-A0i200808-200907
main52159-53140-A1supersedes 52159-53932-A1i200808-200907
main52159-53140-B0supersedes 52159-53932-B0i200808-200907
main52159-53140-B2supersedes 52159-53932-B1i200808-200907
main52159-53140-C0supersedes 52159-53932-C0i200808-200907
main52159-53140-D0supersedes 52159-53932-D0i200808-200907
main52159-53140-E0supersedes 52159-53932-E0i200808-200907
main52159-53140-E1supersedes 52159-53932-E1i200808-200907
main52159-53140-J0supersedes 52159-53932-J0i200808-200907
main52159-53140-J1supersedes 52159-53932-J1i200808-200907
main52159-53922-A0supersedes 52159-53932-A0i200908-200910
main52159-53922-A1supersedes 52159-53932-A1i200908-200910
main52159-53922-B0supersedes 52159-53932-B0i200908-200910
main52159-53922-B1supersedes 52159-53932-B1i200908-200910
main52159-53922-C0supersedes 52159-53932-C0i200908-200910
main52159-53922-D0supersedes 52159-53932-D0i200908-200910
main52159-53922-E0supersedes 52159-53932-E0i200908-200910
main52159-53922-E1supersedes 52159-53932-E1i200908-200910
main52159-53922-J0supersedes 52159-53932-J0i200908-200910
main52159-53922-J1supersedes 52159-53932-J1i200908-200910
main52159-53922-J2supersedes 52159-53932-J2i200908-200910
main52159-53922-K0supersedes 52159-53932-K0i200908-200910
main52159-53931-A0supersedes 52159-53932-A0i200910-201008
main52159-53931-A1supersedes 52159-53932-A1i200910-201008
main52159-53931-B0supersedes 52159-53932-B0i200910-201008
main52159-53931-B1supersedes 52159-53932-B1i200910-201008
main52159-53931-C0supersedes 52159-53932-C0i200910-201008
main52159-53931-D0supersedes 52159-53932-D0i200910-201008
main52159-53931-E0supersedes 52159-53932-E0i200910-201008
main52159-53931-E1supersedes 52159-53932-E1i200910-201008
main52159-53931-J0supersedes 52159-53932-J0i200910-201008
main52159-53931-J1supersedes 52159-53932-J1i200910-201008
main52159-53931-J2supersedes 52159-53932-J2i200910-201008
main52159-53931-K0supersedes 52159-53932-K0i200910-201008
main52159-53937-A0supersedes 52159-53932-A0i201008-201108
main52159-53937-A1supersedes 52159-53932-A1i201008-201304
main52159-53937-B0supersedes 52159-53932-B0i201008-201108
main52159-53937-B1supersedes 52159-53932-B1i201008-201304
main52159-53937-B3supersedes 52159-53932-B3i201108-201304
main52159-53937-C0supersedes 52159-53932-C0i201008-201304
main52159-53937-C1supersedes 52159-53932-C1i201008-201304
main52159-53937-D0supersedes 52159-53932-D0i201008-201304
main52159-53937-E2supersedes 52159-53932-E2i201108-201304
main52159-53937-J2supersedes 52159-53932-J2i201008-201304
main52159-53937-J3supersedes 52159-53932-J3i201008-201304
main52159-53937-J4supersedes 52159-53932-J4i201008-201304
main52159-53937-K0supersedes 52159-53932-K0i201008-201304
52162BPLATE, REAR BUMPER, NO.1
main52162-53020-A0×2i200508-200607
WHITE PEARL CS.,062
main52162-53020-A1×2i200508-200808
BLUISH PEARL CS.,074
main52162-53020-A2×2i200607-200808
WHITE PEARL CS.,077
main52162-53020-B0×2i200508-200808
DK.GRAY MC.,1G0
main52162-53020-B1×2i200808-201008
SILVER M.M.,1G1
main52162-53020-B6×2i201108-201304
MERCURY GRAY MC.,1H9
main52162-53020-C0×2i200508-200607
BLACK,202
main52162-53020-C1×2i200607-200808
BLACK,212
main52162-53020-C2×2i201008-201304
STARLIGHT BLACK GF.,217
main52162-53020-D0×2i200808-201008
RED MC.CS.,3R1
main52162-53020-D1×2i200612-200808
SHELL M.M.,3R4
main52162-53020-E0×2i200508-200607
BEIGE ME.,4P7
main52162-53020-E1×2i200607-200808
BEIGE ME.,4T1
main52162-53020-E2×2i200808-201008
BLOND M.M.,4T0
main52162-53020-E3×2i200808-201008
SABLE M.M.,4T5
main52162-53020-E5×2i201108-201304
FIRE AGATE M.M.,4V3
main52162-53020-G0×2i200508-200808
MD.GREEN M.M.,6U3
main52162-53020-J0×2i200508-200607
DARK BLUE MC.,8P8
main52162-53020-J1×2i200808-201008
LT.BLUE ME.,8R6
main52162-53020-J2×2i200808-201008
DK.BLUE MC. CC.,8U0
main52162-53020-J3×2i201008-201304
BLUE ME. CC.,8U1
main52162-53020-J4×2i201008-201304
SILVERY BLUE ME.,8U9
main52162-53020-J5×2i201008-201304
LAPIS LAZULI MC.,8V3
main52162-53020-K0×2i201008-201304
CATTLEYA M.M.,9AL
52171AREINFORCEMENT, REAR BUMPER, NO.1
main52023-53010i200508-200808
52197ABRACKET, REAR BUMPER SEAL, RH
main52197-53020i200508-200808
52198ABRACKET, REAR BUMPER SEAL, LH
main52198-53010i201008
52462PAD, REAR BUMPER, RH
main52462-53020i200508-200808
52463PAD, REAR BUMPER, LH
main52462-53020i200508-200808
52562BRETAINER, REAR BUMPER, UPPER RH
main52562-53010i200508-200808
52563ARETAINER, REAR BUMPER, UPPER LH
main52563-53010i200508-200808
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
main52577-30100i200808-201008
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
main52578-30100i200808-201008
52581PROTECTOR, REAR BUMPER, RH
main52581-53010i200508-200808
52582PROTECTOR, REAR BUMPER, LH
main52582-53010i200508-200808
52615ABSORBER, REAR BUMPER ENERGY
main52615-53050i200508-200808
main52615-53120i200908-201008
8417CLEARANCE & BACK SONAR
→ Go to FIG 84-17
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
main89348-44010×2i200508-200808
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
main89348-44010×2i200508-200808
9012908001
main90129-08001
9015960431
main90159-60431
9015960498
main90159-60498
9015960500
main90159-60500
9015960602
main90159-60602
9015960603
main90159-60603
9018306019
main90183-06019
9018906066
main90189-06066
9018906148
main90189-06148
9018906203
main90189-06203
