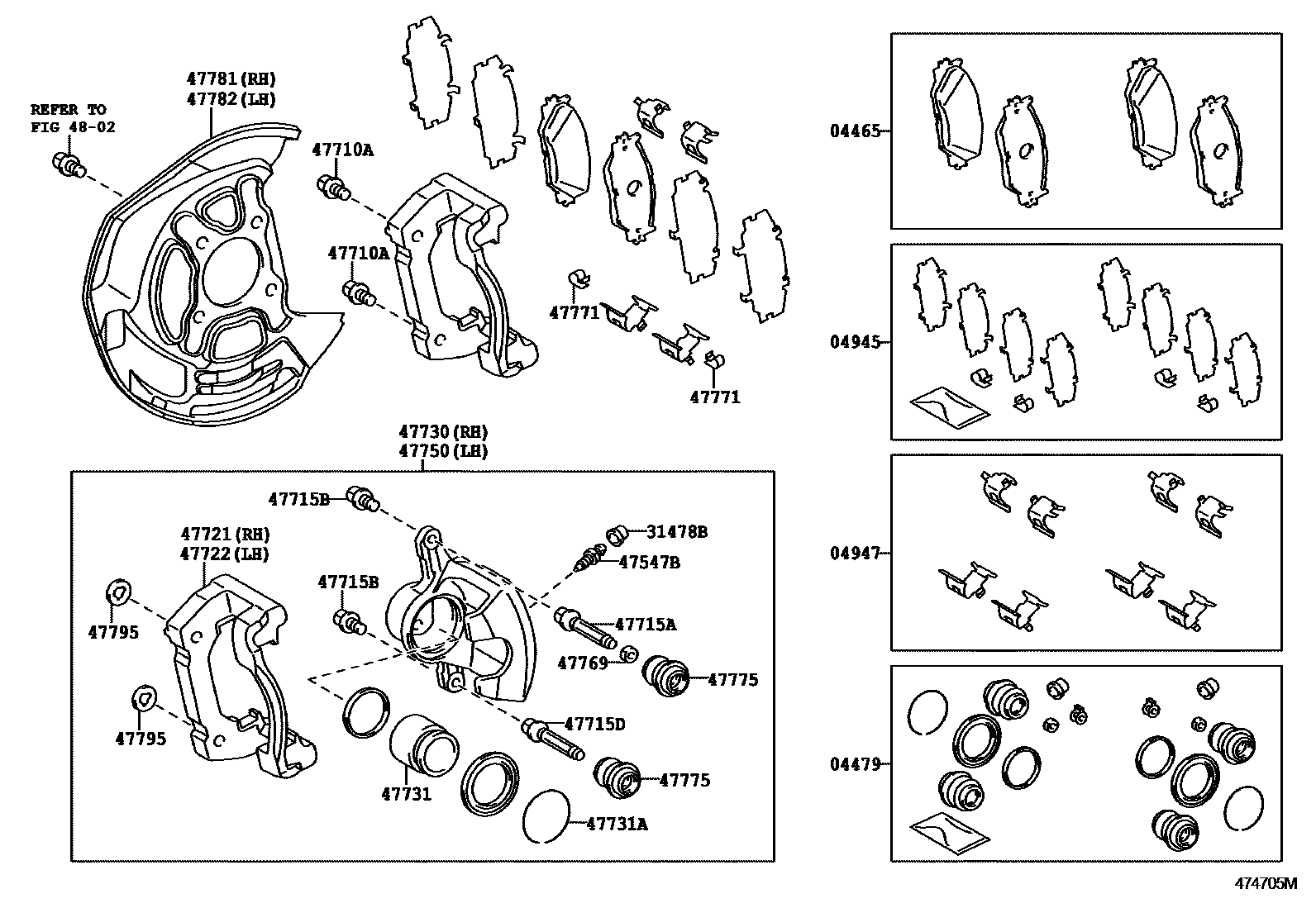

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0003 1 0004 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-30410iGSE21200508-200808

main04465-30500iGSE21201212-201304

main04465-53020iGSE20,25200508-200708

main04465-53040iGSE20,25200808-201008

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iGSE21201008

main04478-30250iGSE20,25200808-201008

main04478-30260iGSE25201108

main04479-30151iGSE20,25200508-200808

sub04478-53020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-22151iGSE21200508-200808

main04945-22152iGSE21201008-201212

main04945-30350iGSE21201212-201304

main04945-53030iGSE20,25200508-200512

main04945-53040iGSE20,25200512-200804

main04945-53050iGSE25201008-201304

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGSE21200608-200808

main04947-50090iGSE21200508-200607

main04947-53010iGSE20,25200508-200705

main04947-53020iGSE25201008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010×2iGSE21200508-200808

main31478-30010×2iGSE20,25200508-200808

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030×2iGSE20,25200808-201008

main47547-50010×2iGSE21201008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415×4iGSE2#201111-201304

main91552-K1240×4iGSE2#200508-200808

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070×2iGSE20,25200808-201008

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164×4iGSE20,25200508-200808

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-52190×2iGSE20,25200508-200808

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-53060iGSE20,25200508-200808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-53060iGSE25201008

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGSE21201008

main47730-53060iGSE20,25200808-201008

47731PISTON, FRONT DISC BRAKE

main47731-50070×8iGSE21201008

main47731-53060×2iGSE25201008

sub47731-12A10

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005×2iGSE20,25200508-200808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iGSE21200508-200808

main47750-53060iGSE25201008

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iGSE20,25200508-200808

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-33340×4iGSE20,25200508-200808

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070×4iGSE20,25200508-200605

main47775-50010×4iGSE20,25200605-200808

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22200iGSE21201008-201304

main47781-30220iGSE20200808-201008

main47781-30230iGSE25200508-200808

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22200iGSE21200508-200808

main47782-30220iGSE20200508-200808

main47782-30230iGSE25200508-200808

47795PLATE, FRONT DISC BRAKE CALIPER, NO.1

main47795-30520×4iGSE20,25200508-200808

4802

23 parts on this diagram · 3 diagrams in section
