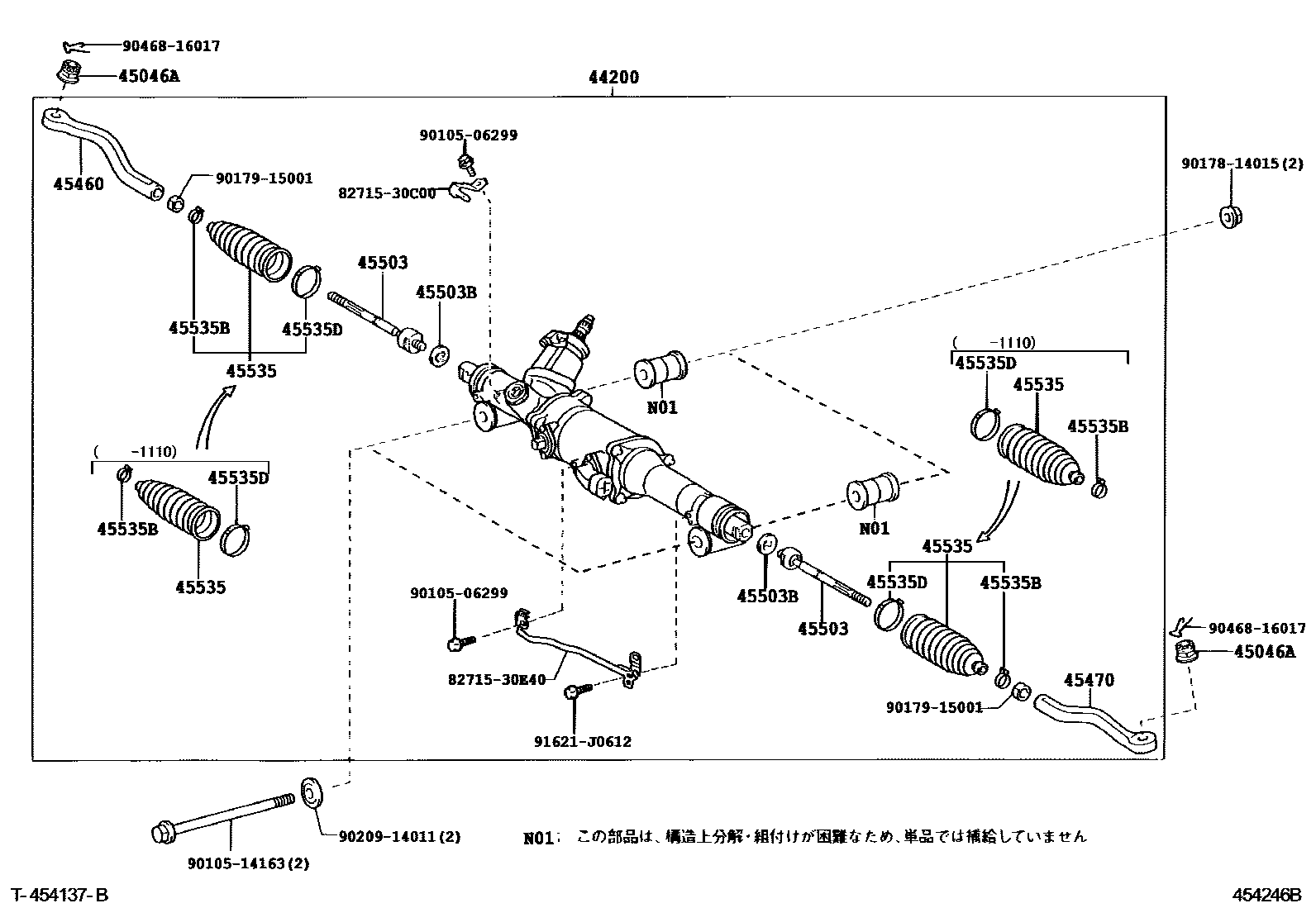

FRONT STEERING GEAR & LINK

0001 1 0002 1

44200LINK ASSY, POWER STEERING

main44200-53060iGSE20,21200508-200607

main44200-53090iGSE25200508-200609

main44200-53110iGSE20,21200608-201109

main44200-53140iGSE25200610-201109

main44200-53270iGSE20,21201110-201304

main44200-53300iGSE25201110-201304

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGSE20,21200508-201008

main90178-12017iGSE25200508-201008

45460ROD ASSY, TIE, RH

main45460-39715iGSE25200508-201304

main45463-30130iGSE20,21200508-201304

45470ROD ASSY, TIE, LH

main45464-30060iGSE20,21200508-201008

main45470-39255iGSE25200508-201008

45503END SUB-ASSY, STEERING RACK

main45503-30070iGSE20,21200508-201304

main45503-30080iGSE25200508-201304

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14011iGSE2#200508-201008

45535BOOT, STEERING RACK, NO.1

main45535-30030iGSE2#200508-201110

main45535-59045iGSE2#201110

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19019iGSE2#200508-201008

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-55016iGSE2#200508-201008

8271530C00BRACKET,WIRING HARNESS CLAMP

main82715-30C00

8271530E40BRACKET,WIRING HARNESS CLAMP

main82715-30E40

9010506299

main90105-06299

9010514163

main90105-14163

9017814015

main90178-14015

9017915001

main90179-15001

9020914011

main90209-14011

9046816017

main90468-16017

91621J0612

main91621-J0612

18 parts on this diagram · 2 diagrams in section
