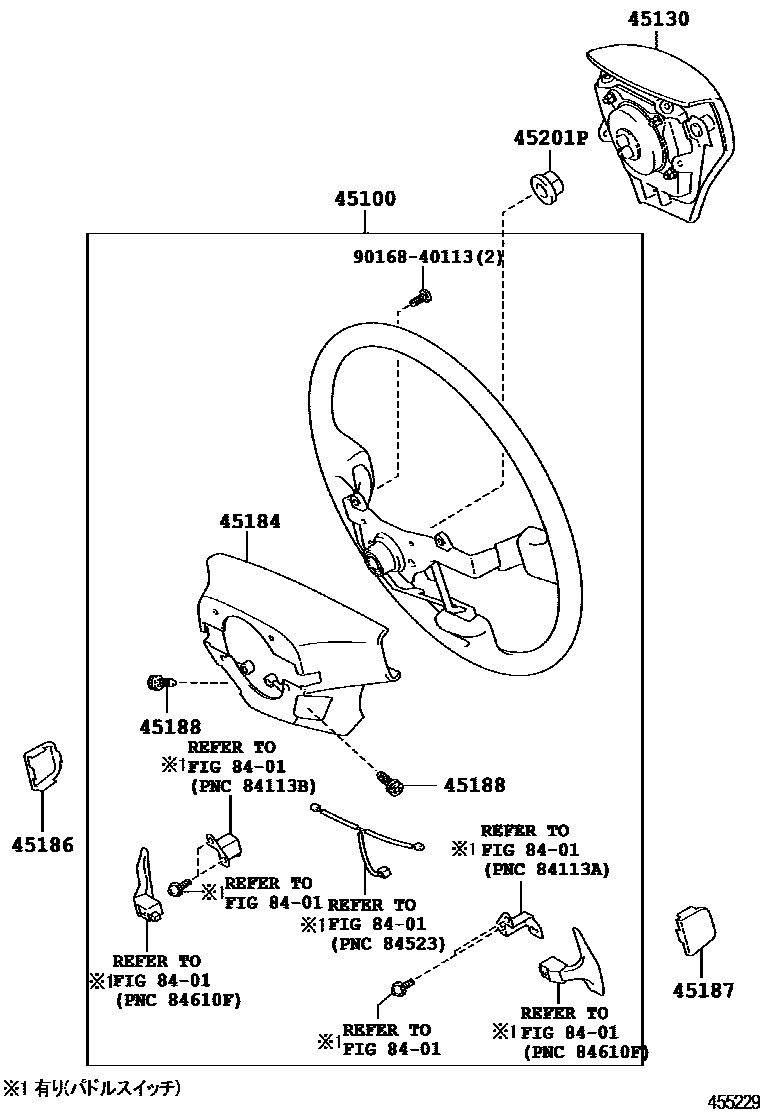

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-53180-C0iGSE2#200508-200808

main45100-53350-C0iGSE2#201008-201012

main45100-53351-C0iGSE2#201012-201304

main45100-53170-C0iGSE20,25200808-201008

main45100-53180-C1iGSE2#200903-200907

main45100-53280-C0iGSE20,25200808-200908

main45100-53280-C1iGSE20,25200808-200908

main45100-53290-C0iGSE2#200808-201008

main45100-53290-C1iGSE2#200808-201008

main45100-53290-C3iGSE2#200908-201008

main45100-53300-C0iGSE20,21200908-201008

main45100-53340-C0iGSE20,25201008-201304

main45100-53360-C0iGSE2#201008-201012

main45100-53360-C1iGSE2#201008-201012

main45100-53360-C2iGSE2#201008-201012

main45100-53361-C0iGSE2#201012-201304

main45100-53361-C1iGSE2#201012-201304

main45100-53361-C2iGSE2#201012-201304

main45100-53380-C2iGSE20,25201001-201007

main45100-53390-C1iGSE20,25201001-201007

main45100-53410-C0iGSE20,25201008-201012

main45100-53411-C0iGSE20,25201012-201108

main45100-53420-C0iGSE20,21201008-201012

main45100-53421-C0iGSE20,21201012-201304

45130BUTTON ASSY, HORN

main45130-53080-C0iGSE2#201008-201304

BLACK,TRIM0#,1#,2#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-53020-C0iGSE2#; GSE20201008-201304

main45184-53010-C0iGSE20,25200808-201008

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-53010-C0iGSE2#200508-200808

BLACK,TRIM0#,1#,2#

main45186-53020-C0iGSE20,25201008-201304

BLACK,TRIM1#,2#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-53010-C0iGSE2#200808-201008

BLACK,TRIM0#,1#,2#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iGSE2#200808-201008

45201PNUT, STEERING WHEEL SET

main90179-12071iGSE2#200808-201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9016840113

main90168-40113

9 parts on this diagram · 1 diagram in section
