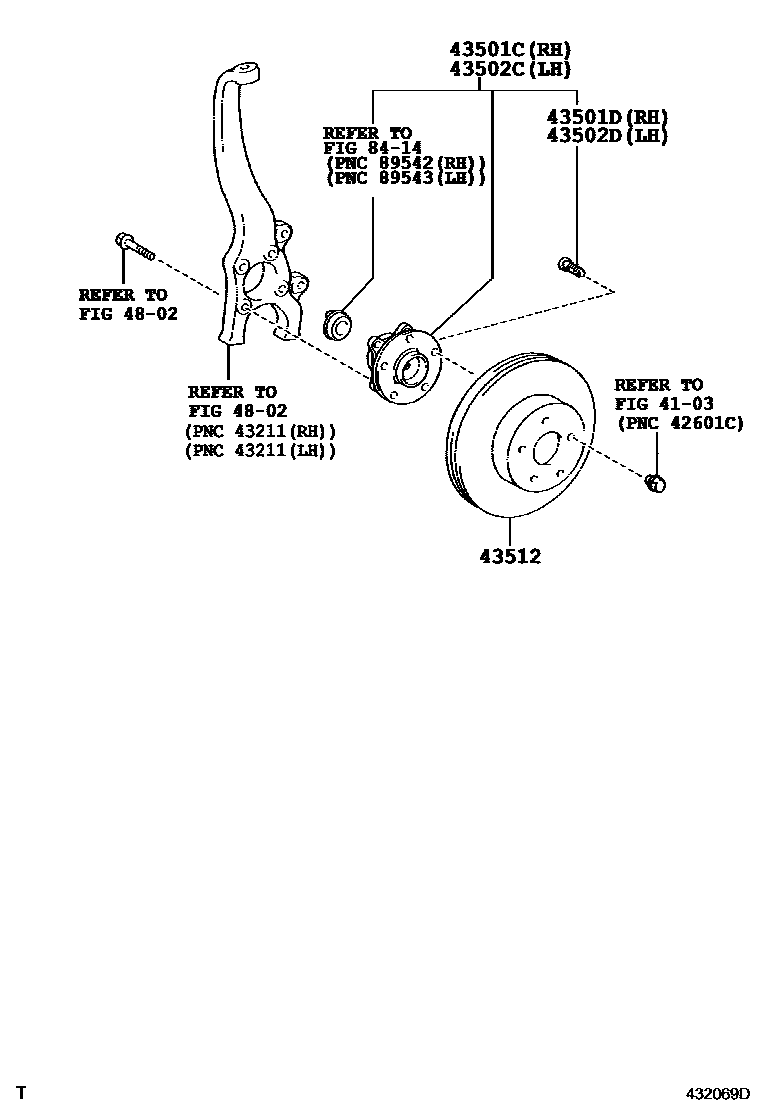

FRONT AXLE HUB

0001 1 0002 1

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-30020iGSE20,21200508-201304

main43550-30030iGSE25200508-201304

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02070iGSE2#200508-201008

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43560-30010iGSE20,21200508-201008

main43560-30030iGSE25200508-201008

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02070iGSE2#200508-201008

43512DISC, FRONT

main43512-22260iGSE21200508-201304

main43512-30310iGSE20,25200508-201304

main43516-22010iGSE21200508-201304

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

8414ABS & VSC

→ Go to FIG 84-14

8 parts on this diagram · 2 diagrams in section
