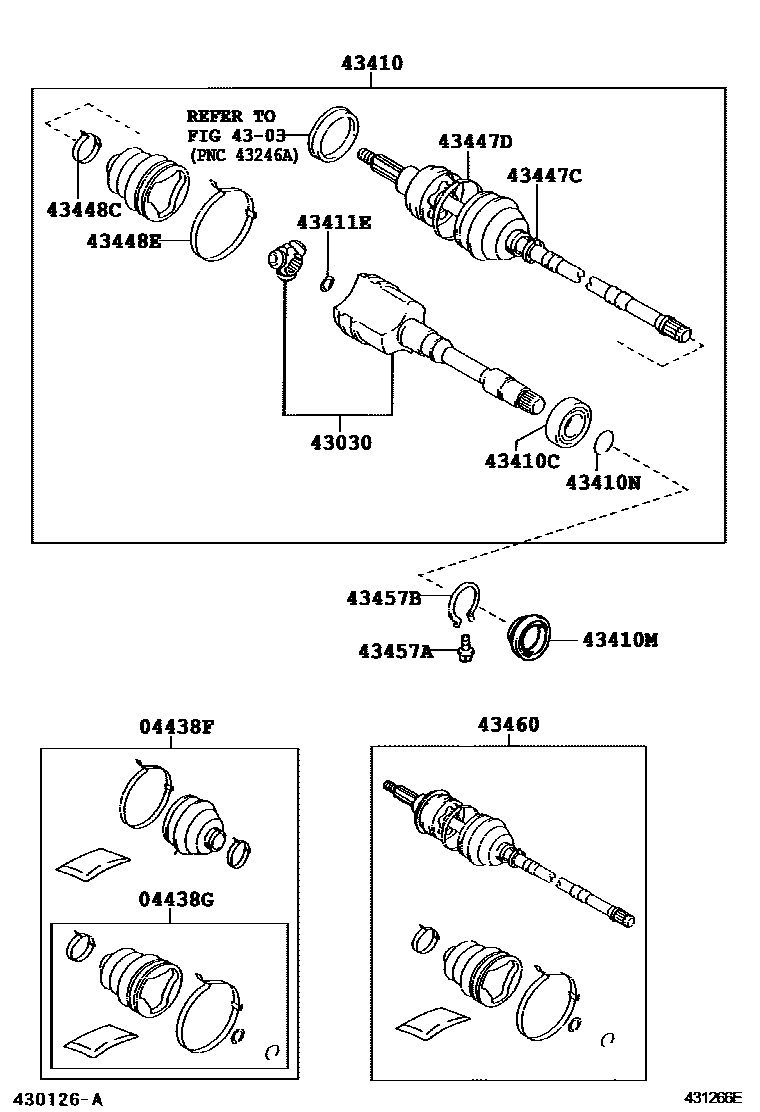

FRONT DRIVE SHAFT

0001 1������ 0002 1�������

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04427-30010iGSE25200508-200808

main04427-30080iGSE25201008

sub04427-30081

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-30070iGSE25200508-200808

sub04437-30071

4303

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-30020iGSE25200508-200808

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-30020iGSE25200508-200808

main43410-30021iGSE25201008

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36001iGSE25200508-200806

sub90363-36004

main90363-36010iGSE25200806-200808

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-35030iGSE25200508-200808

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iGSE25200508-200808

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iGSE25200508-200808

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22030iGSE25200508-200808

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22040iGSE25200508-200808

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01804iGSE25200508-200808

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01803iGSE25200508-200808

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90901-19060iGSE25200508-200808

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iGSE25200508-200808

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-39215iGSE25200508-200808

main43460-39216iGSE25201008-201304

sub43460-39217

16 parts on this diagram · 2 diagrams in section
